5320-01-385-9867
Solid Rivet
5320013859867 013859867 GR501B3-7B AF207B3-7 860-515-3/32-7
A headed fastening device having a smooth solid shank designed to have the shank end upset after insertion. View more Solid Rivet
May 2023
2
Marketplace 5320-01-385-9867
Request a Quotation from participating marketplace vendors
Related Documents 5320-01-385-9867 2+ Documents (More...)
(Identification) 1/2 NSN 5320-01-385-9867 (Identification) 2/2 - - 1.
BUY NE FedMall Updated Every Day 5320-01-385-9867 RQST NE Updated Every Day 5320-01-385-9867 RQST
https//www.nsnlookup.com /fsg-53/fsc-5320/us 5320-00-559-6719 Solid Rivet 5320005596719005596719 860-515 3-32 7
Solid Rivet 5320013859867 013859867 your Account Upgrade 5320-01-385-9867Solid Rivet5320013859867
Restrictions 5320-01-385-9867
5320-01-385-9867 is a Solid Rivet that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5320-01-385-9867
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5320-01-385-9867
- US Navy (N9BZ)
- Effective Date:
- 1 Aug 2005
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- KE
Approved Sources 5320-01-385-9867
- Part Number
- Manufacturer
- Status
- GR501B3-7B
- Manufacturer
- 53551 - Allfast Fastening Systems, Llc (Active)
- Primary Buy
- Primary Buy
- GR501B3-7B
- 70127 - Abscoa Industries Inc (Active)
- Secondary Buy
- Secondary Buy
- AF207B3-7
- 53551 - Allfast Fastening Systems, Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 860-515-3/32-7
- 70127 - Abscoa Industries Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- GR501B3-7B
- 26512 - Northrop Grumman Systems Corporation (Active)
- Vendor Drawing
- Vendor Drawing
Datasheet 5320-01-385-9867
- Characteristic
- Specifications
- FIIG
- Specifications
- A040A0
- Countersink Angle [CRSQ]
- 99.5 Degrees Minimum And 100.5 Degrees Maximum
- Fastener Length [AASB]
- 0.428 Inches Minimum And 0.448 Inches Maximum
- Head Height [AASU]
- 0.023 Inches Minimum And 0.029 Inches Maximum
- Head Major Diameter [AAZG]
- 0.198 Inches Minimum And 0.216 Inches Maximum

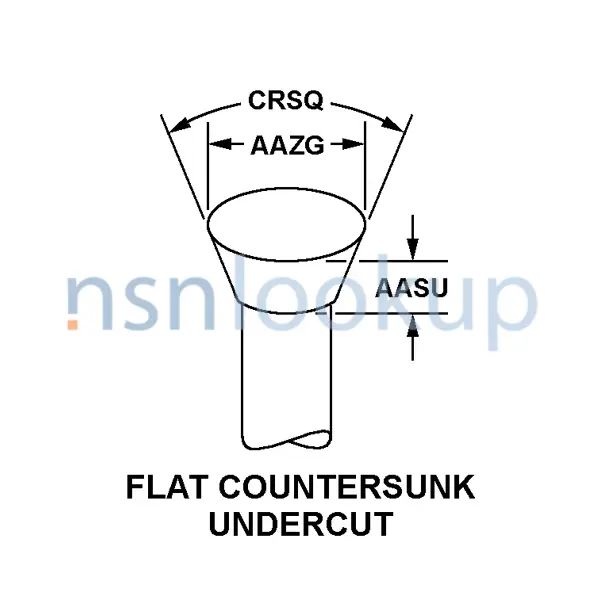

- Head Style [AASK]
- Flat Countersunk Undercut
- Material Document And Classification [MDCL]
- Mil-R-5674 Mil Spec Single Material Response Overall
- Material [MATT]
- Aluminum Alloy 2117 Overall
- Shank Diameter [AAZE]
- 0.093 Inches Minimum And 0.097 Inches Maximum
- Shank Style [AAZF]
- Straight
- Surface Treatment Document And Classification [STDC]
- Mil-A-8625 Mil Spec Single Treatment Response Overall
- Surface Treatment [SFTT]
- Anodize Overall
DLA Procurement Analysis 5320-01-385-9867
Management Data 5320-01-385-9867
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 5320-01-385-9867
Freight Information 5320-01-385-9867
5320-01-385-9867 has freight characteristics managed by the Southwestern Power Administration.It has a National Motor Freight Classification (NMFC) of 106510. A Sub NMFC of X. It has a NMFC Description of RIVETS I/S PLAIN/GALVANIZED ETC. 5320-01-385-9867 is rated as class 50 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 54760 which rates the freight between FCL and LCL. 5320-01-385-9867 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5320-01-385-9867 is not classified as a special type of cargo when transported by water. 5320-01-385-9867 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
