5320-01-338-3545
Blind Rivet
5320013383545 013383545 ST1173-01 CR3523-4-1 5320PL0751680
An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY. View more Blind Rivet
May 2023
19
Marketplace 5320-01-338-3545
Request a Quotation from participating marketplace vendors
Related Documents 5320-01-338-3545 4+ Documents (More...)
ST1173-01 RIVET,BLIND RQST NS Request Quotation Updated Every Day 5320-01-338-3545 RQST NE Updated Every
Day 5320-01-338-3545 RQST Updated Every Day 5320-01-338-3545 RQST NE Related Documents 5320-01-338-3545
CR3523-4-1 RIVET,BLIND 99 EA NS Request Quotation CR3523-4-01 RIVET,BLIND 99 EA NS Request Quotation
CR3523-4-1 RIVET,BLIND 1 EA NS Request Quotation Subscribe to View Vendor Details...
/fsg-47/fsc-4730/us
Blind Rivet 5320013383545 013383545,ST1173-01 Upgrade for $1 a day Upgrade your Account Upgrade

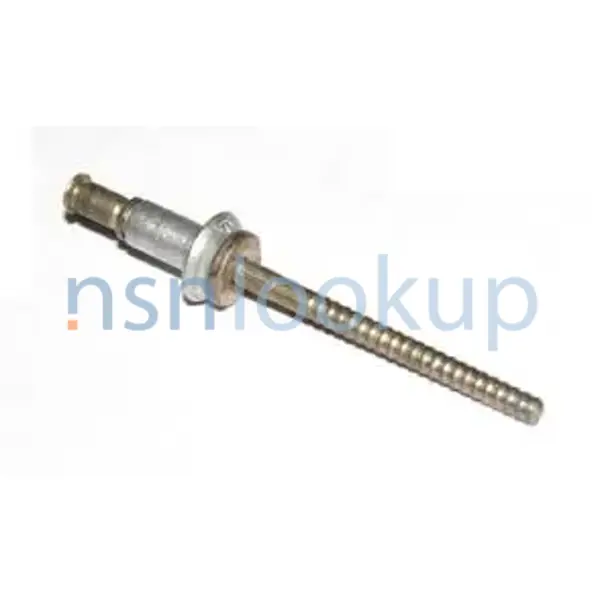

5320-01-338-3545Blind Rivet5320013383545 013383545 ST1173 Photo 1/3 NSN 5320-01-338-3545 (Identification
CR3523-4-01 RIVET,BLIND 99 EA NS Request Quotation CR3523-4-1 RIVET,BLIND 99 EA NS Request Quotation
https//www.nsnlookup.com /fsg-53/fsc-5320/us 5320-01-152-8666 Blind Rivet 5320011528666 011528666 CR3523-4-1
Restrictions 5320-01-338-3545
5320-01-338-3545 is a Blind Rivet that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5320-01-338-3545
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5320-01-338-3545
- National Security Agency (DGX1)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- DKZ1
- Supplementary Receivers:
- KZ
- Poland (WP01)
- Effective Date:
- 1 Sep 2007
- Brazil (YA01)
- Effective Date:
- 1 Jul 2001
- Spain (YB01)
- Effective Date:
- 1 Jun 1999
- Singapore (YJ01)
- Effective Date:
- 1 Jun 1996
- Canada (ZC01)
- Effective Date:
- 1 Aug 2010
- Republic of Korea (ZH01)
- Effective Date:
- 1 Mar 2002
- Denmark (ZS01)
- Effective Date:
- 1 Jan 2006
- Norway (ZT01)
- Effective Date:
- 1 Nov 2010
- Greece (ZU01)
- Effective Date:
- 1 May 2008
Approved Sources 5320-01-338-3545
- Part Number
- Manufacturer
- Status
- ST1173-01
- Manufacturer
- 77445 - Rtx Corporation (Active)
- Source Control
- Source Control
- CR3523-4-1
- 11815 - Sps Technologies, Llc (Active)
- Primary Buy
- Primary Buy
- CR3523-4-1
- 92215 - Howmet Global Fastening Systems Inc (Active)
- Secondary Buy
- Secondary Buy
- 5320PL0751680
- 9009H - Jednolity Indeks Materialowy - (Active)
- NATO Reference
- NATO Reference
Datasheet 5320-01-338-3545
- Characteristic
- Specifications
- FIIG
- Specifications
- A040A0
- Expansion Device [ABAF]
- Break Stem
- Fastener Length [AASB]
- 0.161 Inches Nominal
- Grip Length [ANEE]
- 0.025 Inches Minimum And 0.062 Inches Maximum
- Head Style [AASK]
- Flush (Flat) Countersunk (Included Angle - Less Than 135 Deg W Or W/O Chamfer)
- Material [MATT]
- Nickel Alloy 400 Sleeve
- Material [MATT]
- Iron Alloy 660 Locking Ring
- Material [MATT]
- Steel Comp 632 Stem
- Shank Diameter [AAZE]
- 0.125 Inches Minimum And 0.129 Inches Maximum
- Shank Style [AAZF]
- Self-Plugging Mechanically Locked Stem
DLA Procurement Analysis 5320-01-338-3545
Management Data 5320-01-338-3545
Similar Supply Items to 5320-01-338-3545
Freight Information 5320-01-338-3545
5320-01-338-3545 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 096320. A Sub NMFC of X. It has a NMFC Description of RIVETS I/S NICKEL PLATED BUFFED. 5320-01-338-3545 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 50430 which rates the freight between FCL and LCL. 5320-01-338-3545 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5320-01-338-3545 is not classified as a special type of cargo when transported by water. 5320-01-338-3545 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5320-01-338-3545
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Contracting Technical Data File (CTDF) 5320-01-338-3545 August 2020
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
