5320-01-320-6241
Compression Rivet
5320013206241 013206241 0
A two-piece fastening device consisting of a headed solid tapered shank portion designed to fit into the end of a headed hollow shank portion (cap), which is secured internally after insertion by means of compression at both ends. View more Compression Rivet
May 2023
4
Marketplace 5320-01-320-6241
Request a Quotation from participating marketplace vendors
Related Documents 5320-01-320-6241 1+ Documents (More...)
fsc-5320/us 5320-01-320-6241 Compression Rivet 5320013206241 013206241,0 (Identification) 1/3 NSN 5320
Every Day 5320-01-320-6241 RQST Updated Every Day 5320-01-320-6241 //www.nsnlookup.com /cage/0 https
Restrictions 5320-01-320-6241
5320-01-320-6241 is a Compression Rivet that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5320-01-320-6241
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5320-01-320-6241
- US Coast Guard (C057)
- Effective Date:
- 1 Mar 2011
- Former MOE Rule:
- C166
- Supplementary Receivers:
- XG
Approved Sources 5320-01-320-6241
- Part Number
- Manufacturer
- Status
- 0
- Manufacturer
- 60042 - Zodiac Of North America, Inc. (Active)
- Primary Buy
- Primary Buy
Datasheet 5320-01-320-6241
- Characteristic
- Specifications
- FIIG
- Specifications
- A040A0
- Cap Inside Diameter [ABAC]
- 0.094 Inches Nominal

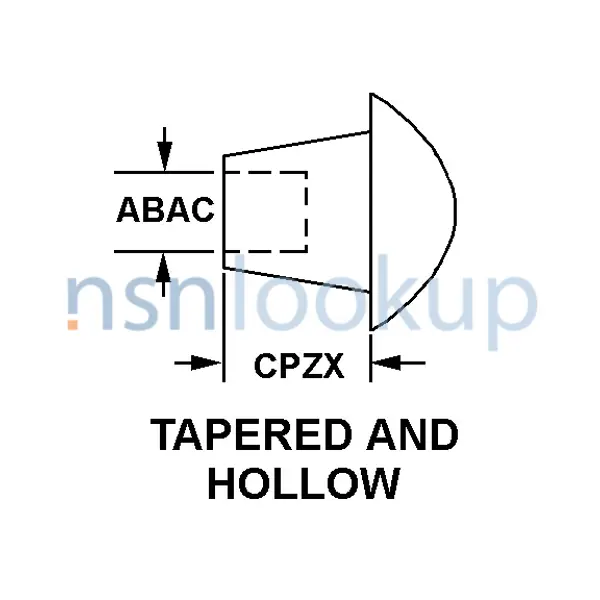

- Cap Style [CQSB]
- Tapered And Hollow
- Fastener Length [AASB]
- 0.312 Inches Nominal
- Features Provided [CBBL]
- Self-Locking
- Grip Length [ANEE]
- 0.348 Inches Nominal
- Head Major Diameter [AAZG]
- 0.314 Inches Nominal
- Head Style [AASK]
- Flush (Flat) Countersunk (Included Angle - Less Than 135 Deg W Or W/O Chamfer)
- Hole Depth [AAZQ]
- 0.250 Inches Nominal
- Material [MATT]
- Steel Overall
- Length Under Cap Head [CPZX]
- 0.156 Inches Nominal
- Shank Diameter [AAZE]
- 0.141 Inches Nominal
- Shank Style [AAZF]
- Tapered Hollow
- Special Features [FEAT]
- Acft Model Hh65a Flotation Gear,Rh
Management Data 5320-01-320-6241
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- May 1992
- US Coast Guard (GP)
- EA
- Subscribe
- 1
- EA
Coast Guard
- Inventory Activity:
- A
- Appropriations Purchase Account item managed for the Coast Guard by the respective Inventory Control Point. An unfunded requisition is required
- Serial Number Control:
- 0
- Item not controlled by serial number
- Material Control:
- 9
- Non-Hazardous or Non-Sensitive Item
Similar Supply Items to 5320-01-320-6241
Freight Information 5320-01-320-6241
5320-01-320-6241 has freight characteristics.. 5320-01-320-6241 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
