5320-01-310-3456
Pin-Rivet
5320013103456 013103456 ASPFF-DT06-09NL ASPFF-DT6-9NL 5320PL0749125
A metallic or nonmetallic item, headed at one end, with a cylindrically shaped shank which may be tapered, grooved, or threaded. A locking collar or sleeve may be provided to perform the same holding action as the clinching portion of a conventional rivet. The shank may include an external wrenching facility which breaks off at a predetermined applied torque. View more Pin-Rivet
November 2023
13
Marketplace 5320-01-310-3456
Request a Quotation from participating marketplace vendors
Related Documents 5320-01-310-3456 1+ Documents (More...)
(Identification) 1/2 NSN 5320-01-310-3456 (Identification) 2/2 - - 1.
ASPFF-DT06-09NL PIN RIVET 2 EA NS Request Quotation Updated Every Day 5320-01-310-3456 RQST NE Updated
Restrictions 5320-01-310-3456
5320-01-310-3456 is a Pin-Rivet that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5320-01-310-3456
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5320-01-310-3456
- US Air Force (FXGI)
- Effective Date:
- 1 Mar 2006
- Former MOE Rule:
- FXKZ
- US Navy (N9BZ)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GGGT
- Poland (WP01)
- Effective Date:
- 1 Aug 2007
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Jul 2011
Approved Sources 5320-01-310-3456
- Part Number
- Manufacturer
- Status
- ASPFF-DT06-09NL
- Manufacturer
- 17446 - Huck International, Inc (Active)
- Primary Buy
- Primary Buy
- ASPFF-DT06-09NL
- 1V757 - Wesco Aircraft Hardware Corp. (Active)
- Secondary Buy
- Secondary Buy
- ASPFF-DT6-9NL
- 17446 - Huck International, Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 5320PL0749125
- 9009H - Jednolity Indeks Materialowy - (Active)
- NATO Reference
- NATO Reference
Datasheet 5320-01-310-3456
- Characteristic
- Specifications
- FIIG
- Specifications
- A528U0
- Countersink Angle [CRSQ]
- 99.0 Degrees Minimum And 101.0 Degrees Maximum
- End Item Identification [AGAV]
- Vertical Stab; F/A-18E/F Hornet Aircraft
- Fastener Length [AASB]
- 1.340 Inches Minimum And 1.465 Inches Maximum
- Grip Length [ANEE]
- 0.501 Inches Minimum And 0.562 Inches Maximum
- Head Style [AASK]
- Flush Countersunk
- Head Major Diameter [AAZG]
- 0.386 Inches Maximum
- Material Document And Classification [MDCL]
- Qq-A-430 Fed Spec Single Material Response Collar
- Material [MATT]
- Aluminum Alloy 2219 Collar
- Material [MATT]
- Steel Comp 8740 Mandrel
- Material [MATT]
- Steel Comp 8740 Sleeve
- Nominal Thread Size [CQJX]
- 0.104 Inches
- Lubrication [ABAJ]
- Cetyl Alcohol
- Material Document And Classification [MDCL]
- Aisi8740 Assn Std Single Material Response Mandrel
- Material Document And Classification [MDCL]
- Aisi8740 Assn Std Single Material Response Sleeve
- Shank Diameter [AAZE]
- 0.200 Inches Minimum And 0.202 Inches Maximum

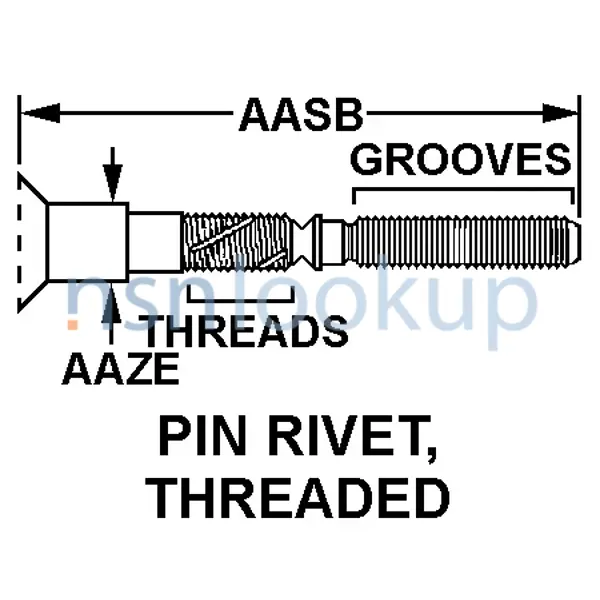

- Shank Style [AAZF]
- Pin Rivet, Threaded
- Special Features [FEAT]
- Fastener, Adjustable Preload-Self Sustaining-Positive Lock, 100 Degree Flush Head Installed With Flush And Protruding Sleeves; Nickel-Electro Plate (Cl-Ii)
- Thread Quantity Per Inch [CMLP]
- 56
- Thread Series Designator [THSD]
- Uns
- Surface Treatment Document And Classification [STDC]
- Mil-C-5541 Mil Spec Single Treatment Response Collar
- Surface Treatment Document And Classification [STDC]
- Qq-P-416, Type Ii, Class 2 Fed Spec Single Treatment Response Sleeve
- Surface Treatment Document And Classification [STDC]
- Qq-P-416, Type Ii, Class2 Fed Spec Single Treatment Response Mandrel
- Surface Treatment [SFTT]
- Chromate Collar
- Surface Treatment [SFTT]
- Cadmium Mandrel And Chromate Mandrel
- Surface Treatment [SFTT]
- Cadmium Sleeve And Chromate Sleeve
- Thread Direction [AAJF]
- Right-Hand
- Thread Class [AAJD]
- 3A
Weapon Systems (WSDC) 5320-01-310-3456
DLA Procurement Analysis 5320-01-310-3456
- Last Stock Position:
- 93 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5320-01-310-3456
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 5320-01-310-3456
Freight Information 5320-01-310-3456
5320-01-310-3456 has freight characteristics managed by Norway.It has a National Motor Freight Classification (NMFC) of 096320. A Sub NMFC of X. It has a NMFC Description of RIVETS I/S NICKEL PLATED BUFFED. 5320-01-310-3456 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 50430 which rates the freight between FCL and LCL. 5320-01-310-3456 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5320-01-310-3456 is not classified as a special type of cargo when transported by water. 5320-01-310-3456 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5320-01-310-3456
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- --
- --
- Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Contracting Technical Data File (CTDF) 5320-01-310-3456 August 2020
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
