5320-01-270-7362
Tubular Rivet
5320012707362 012707362 FF-R-556 DS51403R025006D
A headed fastening device having a smooth shank which is hollow or having a cavity at its end and designed to have the shank clinched after insertion. View more Tubular Rivet
May 2023
3
Marketplace 5320-01-270-7362
Request a Quotation from participating marketplace vendors
Related Documents 5320-01-270-7362 5+ Documents (More...)
(Identification) 1/2 NSN 5320-01-270-7362 (Identification) 2/2 - - 1.
Day 5320-01-270-7362 RQST Updated Every Day 5320-01-270-7362 RQST NE Related Documents 5320-01-270-7362
Tubular Rivet 5320011992300011992300FF-R-556 RIVET,SOLID RQST NS Request Quotation Subscribe FF-R-556
FF-R-556 RIVET,SOLID RQST NS Request Quotation Subscribe to View Vendor Details...
Tubular Rivet 5320012729089012729089FF-R-556 RIVET,SOLID RQST NS Request Quotation Subscribe FF-R-556
FF-R-556 RIVET,SOLID RQST NS Request Quotation Subscribe to View Vendor Details...
FF-R-556 RIVET,SOLID RQST NS Request Quotation Subscribe to View Vendor Details...
FF-R-556 RIVET,SOLID RQST NS Request Quotation Subscribe to View Vendor Details...
FF-R-556 RIVET,SOLID RQST NS Request Quotation Subscribe to View Vendor Details...
https//www.nsnlookup.com /fsg-53/fsc-5320/us 5320-01-136-3559 Solid Rivet 5320011363559011363559,FF-R-556
Restrictions 5320-01-270-7362
5320-01-270-7362 is a Tubular Rivet that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5320-01-270-7362
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5320-01-270-7362
- National Security Agency (DGX1)
- Effective Date:
- 1 Mar 2006
- Former MOE Rule:
- DKZ1
- Supplementary Receivers:
- KZ
- Republic of Korea (ZH01)
- Effective Date:
- 1 Mar 2002
Approved Sources 5320-01-270-7362
- Part Number
- Manufacturer
- Status
- DS51403R025006D
- Manufacturer
- 96906 - Military Standards (Active)
- Definitive Standard
- Definitive Standard
- FF-R-556
- 81348 - Federal Specifications Promulgated (Active)
- Incomplete Standard
- Incomplete Standard
Datasheet 5320-01-270-7362
- Characteristic
- Specifications
- FIIG
- Specifications
- A040A0
- Fastener Length [AASB]
- 5.85 Millimeters Minimum And 6.15 Millimeters Maximum
- Grip Length [ANEE]
- 4.30 Millimeters Maximum
- Head Height [AASU]
- 0.45 Millimeters Minimum And 0.55 Millimeters Maximum

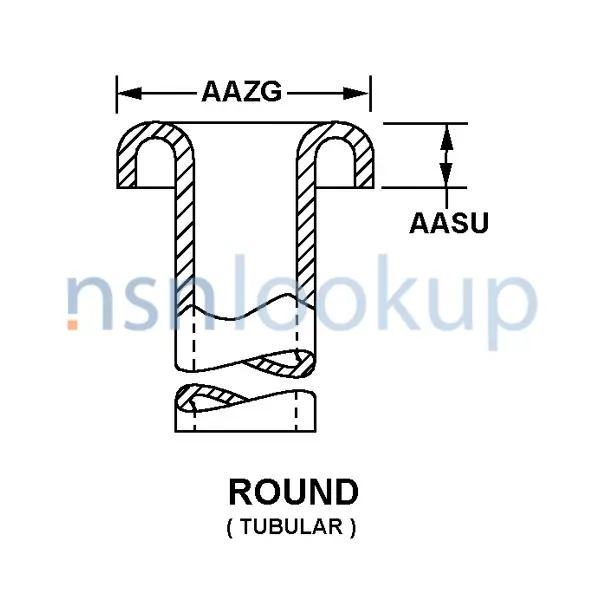

- Head Style [AASK]
- Round (Tubular)
- Head Major Diameter [AAZG]
- 3.80 Millimeters Minimum And 4.20 Millimeters Maximum
- Heat Treatment [HEAT]
- Annealed Overall
- Hole Diameter [AAUB]
- 1.74 Millimeters Nominal
- Material Document And Classification [MDCL]
- Qq-W-321 Fed Spec Single Material Response Overall
- Material [MATT]
- Copper Alloy 260 Overall
- Nondefinitive Spec/Std Data [ZZZT]
- 12 Type And 1 Class And F Grade
- Shank Diameter [AAZE]
- 2.42 Millimeters Minimum And 2.48 Millimeters Maximum
- Shank Style [AAZF]
- Tubular
- Surface Treatment Document And Classification [STDC]
- Qq-P-416,Ty 2,Cl 2 Fed Spec Single Treatment Response Overall
- Surface Treatment [SFTT]
- Cadmium Overall And Chromate Overall
DLA Procurement Analysis 5320-01-270-7362
Management Data 5320-01-270-7362
NATO Stock Numbers Related to 5320-01-270-7362
Freight Information 5320-01-270-7362
5320-01-270-7362 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 106510. A Sub NMFC of X. It has a NMFC Description of RIVETS I/S PLAIN/GALVANIZED ETC. 5320-01-270-7362 is rated as class 50 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 54760 which rates the freight between FCL and LCL. 5320-01-270-7362 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5320-01-270-7362 is not classified as a special type of cargo when transported by water. 5320-01-270-7362 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5320-01-270-7362
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- --
- --
- Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
