5320-01-217-9135
Blind Rivet
5320012179135 012179135 NAS9308MN-4-02 CR3522P4-2 CR3522P4-02
An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY. View more Blind Rivet
November 2023
31
Marketplace 5320-01-217-9135
Request a Quotation from participating marketplace vendors
Related Documents 5320-01-217-9135 2+ Documents (More...)

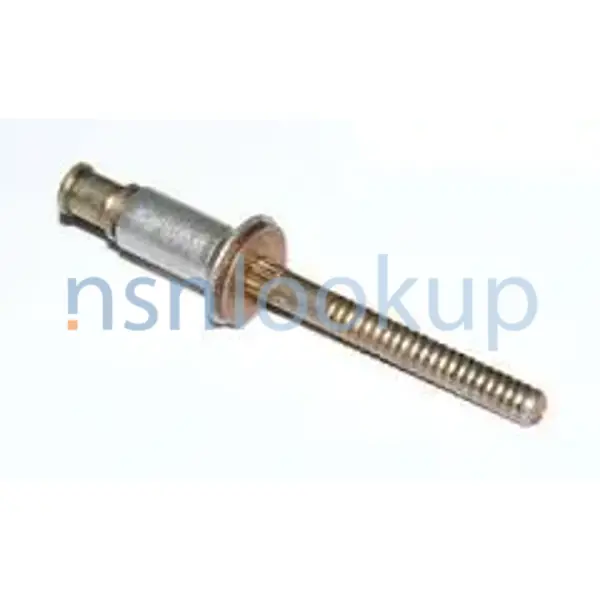

Photo 1/3 NSN 5320-01-217-9135 (Identification) 2/3 NSN 5320-01-217-9135 (Identification) 3/3 -
CR3522P4-02 RIVET,BLIND 1150 EA NS Request Quotation Updated Every Day 5320-01-217-9135 RQST NE Updated
Day 5320-15-005-5007 RQST NE Related Documents https//www.nsnlookup.com /fsg-53/fsc-5320/us 5320-01-217-9135
Blind Rivet 5320012179135 012179135, your Account Upgrade 5320-01-217-9135Blind Rivet5320012179135
Restrictions 5320-01-217-9135
5320-01-217-9135 is a Blind Rivet that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
