5320-01-164-8615

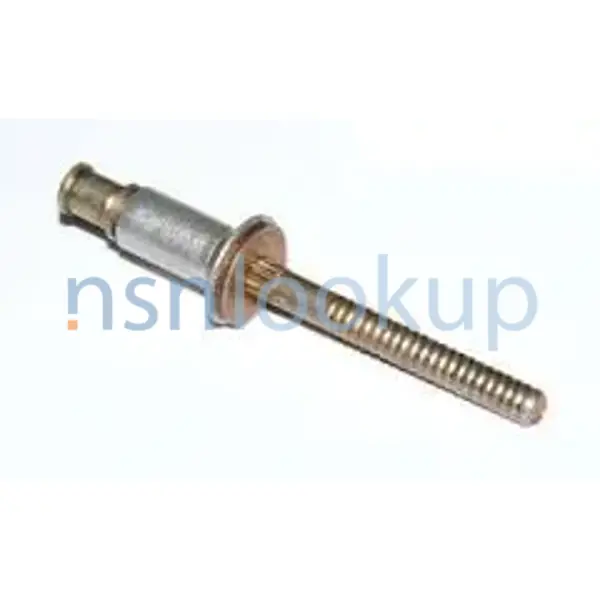

Blind Rivet
5320011648615 011648615 NAS9303E-5-03 CR3224-5-3 10473094
An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY. View more Blind Rivet
November 2023
22
Marketplace 5320-01-164-8615
Request a Quotation from participating marketplace vendors
Related Documents 5320-01-164-8615 2+ Documents (More...)
Photo 1/3 NSN 5320-01-164-8615 (Identification) 2/3 NSN 5320-01-164-8615 (Identification) 3/3 -
CR3224-5-3 RIVET,BLIND 100 EA NS Request Quotation Updated Every Day 5320-01-164-8615 RQST NE Updated
CR3224-5-3 RIVET,BLIND 100 EA NS Request Quotation FedMall Updated Every 15 Minutes 5320-01-550-9512
Blind Rivet 5320011648615 011648615 day Upgrade your Account Upgrade 5320-01-164-8615Blind Rivet5320011648615
Restrictions 5320-01-164-8615
5320-01-164-8615 is a Blind Rivet that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5320-01-164-8615
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5320-01-164-8615
- US Air Force (FXGI)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- FXKZ
- US Navy (N9BZ)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GGGT
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Slovenia (WL01)
- Effective Date:
- 1 Mar 2006
- Poland (WP01)
- Effective Date:
- 1 Jul 2011
- Spain (YB01)
- Effective Date:
- 1 Oct 1996
- Canada (ZC01)
- Effective Date:
- 1 Aug 2009
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Dec 2011
- NATO Maintenance and Supply Agency (ZX01)
- Effective Date:
- 1 May 2015
Approved Sources 5320-01-164-8615
- Part Number
- Manufacturer
- Status
- NAS9303E-5-03
- Manufacturer
- 80205 - National Aerospace Standards (Active)
- Primary Buy
- Primary Buy
- CR3224-5-3
- 82918 - The Boeing Company (Active)
- Primary Buy
- Primary Buy
- 10473094
- A486G - Nimikkeistokeskus Ncb Finland (Active)
- NATO Reference
- NATO Reference
Datasheet 5320-01-164-8615
- Characteristic
- Specifications
- FIIG
- Specifications
- A040A0
- Countersink Angle [CRSQ]
- 99.0 Degrees Minimum And 101.0 Degrees Maximum
- Expansion Device [ABAF]
- Serrated Stem-Type W
- Fastener Length [AASB]
- 0.263 Inches Minimum And 0.293 Inches Maximum
- Grip Length [ANEE]
- 0.126 Inches Minimum And 0.187 Inches Maximum
- Head Major Diameter [AAZG]
- 0.247 Inches Maximum
- Head Style [AASK]
- Flush (Flat) Countersunk (Included Angle - Less Than 135 Deg W Or W/O Chamfer)
- Material Document And Classification [MDCL]
- Qq-A-430 Fed Spec Single Material Response Sleeve
- Material [MATT]
- Aluminum Alloy 5056 Sleeve
- Material [MATT]
- Steel Comp 632 Stem
- Material Document And Classification [MDCL]
- Ams 5657 Assn Std Single Material Response Stem
- Shank Diameter [AAZE]
- 0.156 Inches Minimum And 0.160 Inches Maximum
- Shank Style [AAZF]
- Self-Plugging Mechanically Locked Stem
- Surface Treatment Document And Classification [STDC]
- Mil-C-5541 Mil Spec Single Treatment Response Sleeve
- Surface Treatment Document And Classification [STDC]
- Qq-P-416 Type 1 Class 2 Fed Spec Single Treatment Response Stem
- Surface Treatment [SFTT]
- Cadmium Stem
- Surface Treatment [SFTT]
- Chromate Sleeve
Weapon Systems (WSDC) 5320-01-164-8615
DLA Procurement Analysis 5320-01-164-8615
- Last Stock Position:
- 14303 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5320-01-164-8615
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5320-01-164-8615
Freight Information 5320-01-164-8615
5320-01-164-8615 has freight characteristics managed by the Southwestern Power Administration.It has a National Motor Freight Classification (NMFC) of 106510. A Sub NMFC of X. It has a NMFC Description of RIVETS I/S PLAIN/GALVANIZED ETC. 5320-01-164-8615 is rated as class 50 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 54760 which rates the freight between FCL and LCL. 5320-01-164-8615 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 5320-01-164-8615 is not classified as a special type of cargo when transported by water. 5320-01-164-8615 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
