5320-01-163-0178

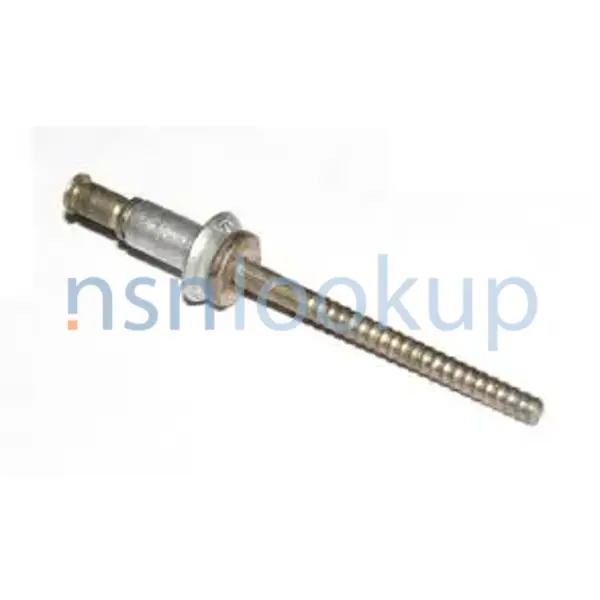

Blind Rivet
5320011630178 011630178 MIL-R-7885/4 CR3523-4-02 FON2-6396C402 MBBN3012M3202 NAS9307-4-02 CR3523-4-2 5-741-0-40-220 M7885/4-4-02 AF3523-4-02 ST1173-02 AF3523-4-2
An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY. View more Blind Rivet
Managed by United States
NSN Created on 27 Sep 1983
Data Last Changed
November 2023
November 2023
NATO Update Count
63
63
NATO Data Quality
Marketplace 5320-01-163-0178
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Updated Every Day 5320-01-163-0178 RQST NE
Updated Every Day 5320-01-163-0178 RQST
Updated Every Day 5320-01-163-0178 RQST NE
Related Documents 5320-01-163-0178 5+ Documents (More...)
MIL-R-7885/4 CR3523-4-02 FON2-6396C402 MBBN3012M3202 NAS9307-4-02 CR3523-4-2 5-741-0-40-220 M7885/4-
4-02 AF3523-4-02 ST1173-02 AF3523-4-2 An item consisting of two or more of the following components:
CR3523-4-02 RIVET,BLIND 99 HD NS Request Quotation ST1173-02 RIVET,BLIND 99 HD NS Request Quotation CR3523
4-02 AF3523-4-02 ST1173-02 AF3523-4-2 An item consisting of two or more of the following components:
CR3523-4-02 RIVET,BLIND 99 HD NS Request Quotation ST1173-02 RIVET,BLIND 99 HD NS Request Quotation CR3523
AF3523-4-02 ASNA0078E402 A0078E402 956074 An item consisting of two or more of the following components
AF3523-4-2 An item consisting of two or more of CR3523-4-2 RIVET,BLIND 150 HD NS Request https//www.nsnlookup.com
Blind Rivet 5320011630178 011630178 5-741-0-40-220 M7885/4-4-02 AF3523-4-02 ST1173-02 AF3523-4-
AF3523-4-2 An item consisting of two or more of CR3523-4-2 RIVET,BLIND 150 HD NS Request https//www.nsnlookup.com
Blind Rivet 5320011630178 011630178 5-741-0-40-220 M7885/4-4-02 AF3523-4-02 ST1173-02 AF3523-4-
https//www.nsnlookup.com
/fsg-47/fsc-4730/us
/fsg-47/fsc-4730/us
4730-01-075-6608 Hose Clamp Half Assembly 4730010756608
https//www.nsnlookup.com /fsg-53/fsc-5320/us 5320-01-350-1859 Blind Rivet 5320013501859 013501859 ST1173-02
ST1173-02 RIVET,BLIND 80 HD NS Request Quotation Updated Every Day 5320-01-350-1859 RQST Updated Every
Blind Rivet 5320011630178 011630178 -4-02 FON2-6396C402 MBBN3012M3202 NAS9307-4-02 CR3523-4-2 5
ST1173-02 RIVET,BLIND 80 HD NS Request Quotation Updated Every Day 5320-01-350-1859 RQST Updated Every
Blind Rivet 5320011630178 011630178 -4-02 FON2-6396C402 MBBN3012M3202 NAS9307-4-02 CR3523-4-2 5
CR3523-4-2 RIVET,BLIND 5 EA NS Request Quotation Subscribe to View Vendor Details...
CR3523-4-2 RIVET,BLIND 99 EA NS Request Quotation Subscribe to View Vendor Details...
CR3523-4-2 RIVET,BLIND 130 EA NS Request Quotation Subscribe to View Vendor Details...
CR3523-4-2 RIVET,BLIND 99 EA NS Request Quotation Subscribe to View Vendor Details...
CR3523-4-2 RIVET,BLIND 130 EA NS Request Quotation Subscribe to View Vendor Details...
JavaScript in your web browser . 5320-14-415-6478Blind Rivet5320144156478 144156478 ASNA0078C402 CR3523-4-02
Blind Rivet 5320011630178 011630178 CR3523-4-02 RIVET,BLIND 47 HD NS Request Quotation Subscribe
CR3523-4-02 RIVET,BLIND 153 HD NS Request Quotation Subscribe to View Vendor Details...
Blind Rivet 5320011630178 011630178 CR3523-4-02 RIVET,BLIND 47 HD NS Request Quotation Subscribe
CR3523-4-02 RIVET,BLIND 153 HD NS Request Quotation Subscribe to View Vendor Details...
Restrictions 5320-01-163-0178
5320-01-163-0178 is a Blind Rivet that is an aviation critical safety item or flight safety critical aircraft part. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5320-01-163-0178
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5320-01-163-0178
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Poland (WP01)
- Effective Date:
- 1 Apr 2007
- Bulgaria (WU01)
- Effective Date:
- 1 Nov 2002
- Brazil (YA01)
- Effective Date:
- 1 Oct 2000
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Columbia (YC01)
- Effective Date:
- 1 Jun 2015
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Australia (ZA01)
- Effective Date:
- 1 Nov 2004
- Belgium (ZB01)
- Effective Date:
- 1 Jul 1996
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- France (ZF01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- United Kingdom (ZK01)
- Effective Date:
- 1 Apr 1991
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Mar 2001
- Italy (ZR01)
- Effective Date:
- 1 Apr 2003
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 May 2008
- Turkey (ZW01)
- Effective Date:
- 1 Dec 2005
- NATO Maintenance and Supply Agency (ZX01)
- Effective Date:
- 1 Aug 2013
Approved Sources 5320-01-163-0178
- Part Number
- Manufacturer
- Status
- MIL-R-7885/4
- Manufacturer
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
- CR3523-4-02
- 05693 - Cherry Textron Inc Cherry Commercial (Active)
- Secondary Buy
- Secondary Buy
- FON2-6396C402
- H1822 - Gkn Fokker Aerospace B.V. (Active)
- Secondary Buy
- Secondary Buy
- CR3523-4-2
- FB009 - Boeing Distribution Services Inc (Active)
- Secondary Buy
- Secondary Buy
- MBBN3012M3202
- C0418 - Airbus Helicopters Deutschland Gmbh (Active)
- Secondary Buy
- Secondary Buy
- NAS9307-4-02
- 80205 - National Aerospace Standards (Active)
- Secondary Buy
- Secondary Buy
- M7885/4-4-02
- A0126 - Leonardo Spa Helicopters Division - (Active)
- Secondary Buy
- Secondary Buy
- CR3523-4-2
- A0311 - Tecno Trade S.R.L. (Active)
- Secondary Buy
- Secondary Buy
- CR3523-4-2
- F7652 - Klx Aerospace Solutions Ii Sas (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 5-741-0-40-220
- F0086 - Daher Aerospace - Ex Socata (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- M7885/4-4-02
- 81349 - Military Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- CR3523-4-02
- 11815 - Sps Technologies, Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- AF3523-4-02
- 53551 - Allfast Fastening Systems, Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- ST1173-02
- 77445 - Rtx Corporation (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- AF3523-4-2
- 53551 - Allfast Fastening Systems, Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- CR3523-4-2
- 11815 - Sps Technologies, Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5320-01-163-0178
- Characteristic
- Specifications
- FIIG
- Specifications
- A040A0
- Expansion Device [ABAF]
- Serrated Stem-Type W
- Fastener Length [AASB]
- 0.450 Inches Nominal
- Grip Length [ANEE]
- 0.063 Inches Minimum And 0.125 Inches Maximum
- Head Height [AASU]
- 0.054 Inches Minimum And 0.064 Inches Maximum
- Head Major Diameter [AAZG]
- 0.240 Inches Minimum And 0.260 Inches Maximum
- Head Style [AASK]
- Universal
- Material Document And Classification [MDCL]
- Qq-N-281 Fed Spec Single Material Response Sleeve
- Material [MATT]
- Nickel Alloy Sleeve
- Material [MATT]
- Iron Alloy 660 Locking Ring
- Material [MATT]
- Steel Stem
- Minimum Tensile Strength [CQBC]
- 400 Pounds Per Square Inch
- Material Document And Classification [MDCL]
- Ams5657 Assn Std Single Material Response Stem
- Material Document And Classification [MDCL]
- Ams5731 Assn Std Single Material Response Locking Ring
- Shank Diameter [AAZE]
- 0.125 Inches Minimum And 0.129 Inches Maximum
- Shear Strength [CQSX]
- 646 Single Pounds Per Square Inch
- Shank Style [AAZF]
- Self-Plugging High Clinch Shank
DLA Procurement Analysis 5320-01-163-0178
Management Data 5320-01-163-0178
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Dec 2012
- Department of the Navy (DN)
- HD
- Subscribe
- 1
- HD
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Defense Logistics Agency (DS)
- I
- Z
- Discontinued-Use 5320-01-439-2968
- Z
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 5320-01-163-0178
5320-12-379-7694 5320-12-375-6211 5320-34-036-5105 5320-99-737-6610 5320-99-737-6565 5320-99-738-0091 5320-99-737-6557 5320-21-077-0736 5320-99-737-6570 5320-12-351-6287 5320-99-737-7669 5320-99-741-1587 5320-99-471-4420 5320-12-303-0732 5320-99-737-6614 5320-17-706-8543 5320-99-737-7668 5320-12-353-7851
Freight Information 5320-01-163-0178
5320-01-163-0178 has freight characteristics managed by New Zealand.It has a National Motor Freight Classification (NMFC) of 106510. A Sub NMFC of X. It has a NMFC Description of RIVETS I/S PLAIN/GALVANIZED ETC. 5320-01-163-0178 is rated as class 50 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 54760 which rates the freight between FCL and LCL. 5320-01-163-0178 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5320-01-163-0178 is not classified as a special type of cargo when transported by water. 5320-01-163-0178 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5320-01-163-0178
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- --
- --
- Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Contracting Technical Data File (CTDF) 5320-01-163-0178 August 2020
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
