5320-01-134-5844

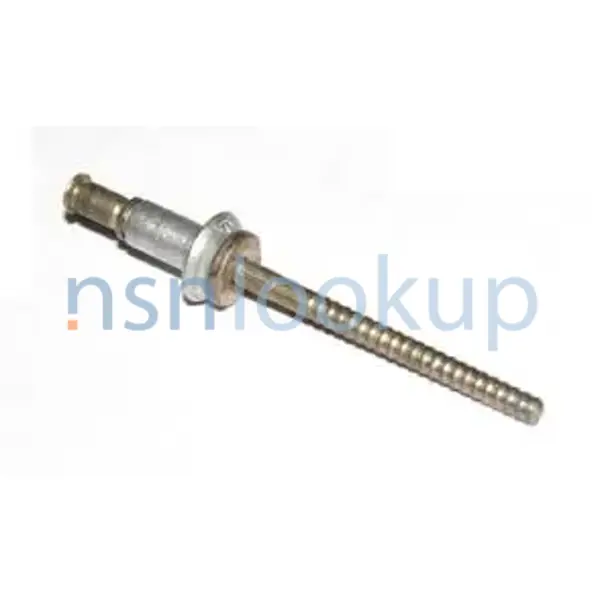

Blind Rivet

5320011345844 011345844 CR3213-4-5 CR 3213 - 4- 5 CR3213-4-05 ASNA0078A405 04052333001557 NAS9301BNS-4-05 MBBN3012L3205 P007885-001-05 HC3213-4-05 AF3213-4-05 3903783 CR-213-4-5 AF3213-4-5 MIL-R-7885/2 M7885/2-4-05 10426315 5320PL0851683

An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY. View more Blind Rivet

Managed by United States

NSN Created on 6 Jul 1982

Data Last Changed
November 2023

NATO Update Count
70

NATO Data Quality

5320-01-134-5844 RIVET,BLIND 5320011345844 011345844 1/3 — 5320-01-134-5844 Photo 1/3

AASK Style C28 for 5320-01-134-5844 2/3 — NSN 5320-01-134-5844 (Identification) 2/3

AAZF Style D32 for 5320-01-134-5844 3/3 — NSN 5320-01-134-5844 (Identification) 3/3

Marketplace 5320-01-134-5844

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

CR3213-4-05 RIVET,BLIND 99 EA NS

Subscribe to View Vendor Details...

CR3213-4-05 RIVET,BLIND 63 EA NS

Subscribe to View Vendor Details...

CR3213-4-05 RIVET,BLIND 1 EA NS

3903783 RIVET,BLIND 1 EA NS

Subscribe to View Vendor Details...

3903783 RIVET,BLIND 1 EA NS

Subscribe to View Vendor Details...

CR3213-4-5 RIVET,BLIND 10452 EA NS

Subscribe to View Vendor Details...

NAS9301BNS-4-05 RIVET,BLIND 100 EA NS

CR3213-4-05 RIVET,BLIND 200 EA NS

Subscribe to View Vendor Details...

ASNA0078A405 RIVET 29 EA NS

NAS9301BNS-4-05 RIVET 220 EA NS

M7885/2-4-05 RIVET 100 EA NS

Subscribe to View Vendor Details...

AF3213-4-05 RIVET,BLIND 300 EA NS

Subscribe to View Vendor Details...

CR3213-4-5 RIVET,BLIND 100 EA NS

Subscribe to View Vendor Details...

M78852-4-5 RIVET,BLIND 14 EA NS

Subscribe to View Vendor Details...

CR3213-4-05 RIVET,BLIND 550 EA NS

Subscribe to View Vendor Details...

3903783 RIVET,BLIND 1 EA NS

M7885/2-4-05 RIVET,BLIND 50 EA NS

CR3213-4-05 RIVET,BLIND 13 EA NS

CR3213-4-5 RIVET,BLIND 36 EA NS

Subscribe to View Vendor Details...

CR3213-4-05 RIVET,BLIND 475 EA NS

M7885/2-4-05 RIVET,BLIND 475 EA NS

Subscribe to View Vendor Details...

MIL-R-78852 RIVET,BLIND 239 EA NS

Subscribe to View Vendor Details...

011345844.5320 RIVET,BLIND 23 EA NS

Subscribe to View Vendor Details...

MIL-R-78852 RIVET,BLIND 3 EA NS

Subscribe to View Vendor Details...

CR3213-4-5 RIVET,BLIND 208 EA NS

Updated Every Day

5320-01-134-5844 RQST NE

Updated Every Day

5320-01-134-5844 RQST

Updated Every Day

5320-01-134-5844 RQST NE

Restrictions 5320-01-134-5844

5320-01-134-5844 is a Blind Rivet that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.

Import and Export 5320-01-134-5844

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 5320-01-134-5844

US Army (A919)
Effective Date:: 1 Apr 2006
Former MOE Rule:: A187
Supplementary Receivers:: AZCTCL; AMC 1 AMSC G IMC Z IMCACTY BD

US Coast Guard (C918)
Effective Date:: 1 Apr 2006
Former MOE Rule:: C004
Supplementary Receivers:: XH; AMC 1 AMSC G

US Air Force (FXGI)
Effective Date:: 1 Apr 2006
Former MOE Rule:: FXKZ; AMC 1 AMSC G IMC Z IMCACTY SX

US Marine Corps (MC47)
Effective Date:: 1 Apr 2006
Former MOE Rule:: MC10; AMC 1 AMSC G IMC Z IMCACTY PA

US Navy (N9BZ)
Effective Date:: 1 Apr 2006
Former MOE Rule:: N9ZD
Supplementary Collaborators:: GTKE; AMC 1 AMSC G IMC Z IMCACTY KE

Slovenia (WL01)
Effective Date:: 1 Aug 2012

Poland (WP01)
Effective Date:: 1 Mar 2007

Bulgaria (WU01)
Effective Date:: 1 Nov 2002

Czech Republic (WZ01)
Effective Date:: 1 Nov 2007

Brazil (YA01)
Effective Date:: 1 Oct 2000

Spain (YB01)
Effective Date:: 1 Apr 1991

Columbia (YC01)
Effective Date:: 1 Jun 2015

Israel (YD01)
Effective Date:: 1 Mar 2017

Singapore (YJ01)
Effective Date:: 1 Apr 1991

Australia (ZA01)
Effective Date:: 1 Apr 1991

Belgium (ZB01)
Effective Date:: 1 Dec 1998

Canada (ZC01)
Effective Date:: 1 Apr 1991

New Zealand (ZE01)
Effective Date:: 1 Apr 1991

France (ZF01)
Effective Date:: 1 Apr 1991

Germany (ZG01)
Effective Date:: 1 Apr 1991

Republic of Korea (ZH01)
Effective Date:: 1 Apr 1991

United Kingdom (ZK01)
Effective Date:: 1 Apr 1991

Philippines (ZM01)
Effective Date:: 1 Feb 2015

Netherlands (ZN01)
Effective Date:: 1 Aug 1995

Portugal (ZP01)
Effective Date:: 1 Jul 1996

Italy (ZR01)
Effective Date:: 1 Jan 2001

Denmark (ZS01)
Effective Date:: 1 Jun 2003

Norway (ZT01)
Effective Date:: 1 Apr 1991

Greece (ZU01)
Effective Date:: 1 Aug 1995

Turkey (ZW01)
Effective Date:: 1 Oct 2009

NATO Maintenance and Supply Agency (ZX01)
Effective Date:: 1 Jan 2014

Approved Sources 5320-01-134-5844

Part Number
Manufacturer
Status
NAS9301BNS-4-05: 80205 - National Aerospace Standards (Active); Primary Buy; RNCC 3 RNVC 2 DAC E
CR3213-4-5: A0311 - Tecno Trade S.R.L. (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
CR 3213 - 4- 5: AC910 - Aertekno S.R.L. (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
CR3213-4-05: 11815 - Sps Technologies, Llc (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
ASNA0078A405: F0210 - Airbus Helicopters (Ets De (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 4
04052333001557: C7965 - Iss International Spares Services (Active); Secondary Buy; RNCC 5 RNVC 2 DAC U
ASNA0078A405: F5442 - Airbus Group Sas (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 4
NAS9301BNS-4-05: 11815 - Sps Technologies, Llc (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
MBBN3012L3205: 11815 - Sps Technologies, Llc (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 6
3903783: 75Q65 - Oshkosh Defense Llc (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 1
P007885-001-05: 18876 - Us Army Aviation And Missile Command (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
CR3213-4-5: 92215 - Howmet Global Fastening Systems Inc (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
HC3213-4-05: 17446 - Huck International, Inc (Active); Secondary Buy; RNCC 5 RNVC 2 DAC A
HC3213-4-05: 0HDW7 - Huck International, Inc. (Active); Secondary Buy; RNCC 5 RNVC 2 DAC A
AF3213-4-05: 53551 - Allfast Fastening Systems, Llc (Active); Secondary Buy; RNCC 5 RNVC 2 DAC A
MBBN3012L3205: C0418 - Airbus Helicopters Deutschland Gmbh (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 3
CR3213-4-5: C4293 - Fairchild Fasteners Europe - Vsd (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 3
3903783: 45152 - Oshkosh Corp (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 1
CR-213-4-5: 11815 - Sps Technologies, Llc (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
AF3213-4-5: 53551 - Allfast Fastening Systems, Llc (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC A
CR3213-4-5: F7652 - Klx Aerospace Solutions Ii Sas (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
MIL-R-7885/2: 81349 - Military Specifications (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC E
M7885/2-4-05: 81349 - Military Specifications (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC E
10426315: A486G - Nimikkeistokeskus Ncb Finland (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
5320PL0851683: 9009H - Jednolity Indeks Materialowy - (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
CR3213-4-5: FB009 - Boeing Distribution Services Inc (Active); Advisory Reference; RNCC C RNVC 1 DAC 4

Datasheet 5320-01-134-5844

Characteristic
Specifications
FIIG: A040A0
Expansion Device [ABAF]: Serrated Stem-Type W
Fastener Length [AASB]: 0.402 Inches Minimum And 0.422 Inches Maximum
Grip Length [ANEE]: 0.251 Inches Minimum And 0.312 Inches Maximum
Head Height [AASU]: 0.054 Inches Minimum And 0.064 Inches Maximum
Head Major Diameter [AAZG]: 0.240 Inches Minimum And 0.260 Inches Maximum
Head Style [AASK]: Universal
End Item Identification [AGAV]: Mrap - M-Atv
Material Document And Classification [MDCL]: Qq-A-430 Fed Spec Single Material Response Sleeve
Material [MATT]: Aluminum Alloy 5056 Sleeve
Material [MATT]: Steel Comp 8740 Stem
Material Document And Classification [MDCL]: Ams 6322 Assn Std Single Material Response Stem
Shank Diameter [AAZE]: 0.125 Inches Minimum And 0.129 Inches Maximum
Shank Style [AAZF]: Self-Plugging Mechanically Locked Stem
Special Features [FEAT]: "Ns" Letters After The Material Code "B" Indicate No Preference To Lock Type (May Be Visible Or Internal). Rivets With No Letter Code (Indicating Visible Lock Type) And Rivets With The Letter "H" After The Material Code (Indicating Internal Lock Type) Are Both Acceptable For This Item Of Supply.
Surface Treatment Document And Classification [STDC]: Mil-C-5541 Mil Spec Single Treatment Response Sleeve
Surface Treatment Document And Classification [STDC]: Qq-P-416,Type 2,Class 2 Fed Spec Single Treatment Response Stem
Surface Treatment [SFTT]: Cadmium And Chromate Stem
Surface Treatment [SFTT]: Chromate Sleeve

Weapon Systems (WSDC) 5320-01-134-5844

Subscribe
View WSDC

Subscribe to View Weapon System Codes...

Subscribe
View Data

DLA Procurement Analysis 5320-01-134-5844

Last Stock Position:: 61946 In Stock
DLA Administrative Lead Time:: Subscribe
DLA Production Lead Time:: Subscribe

Subscribe to View DLA Inventory and Forecast...

Management Data 5320-01-134-5844

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Oct 2022: Department of the Navy (DN); EA; Subscribe
Oct 2021: US Coast Guard (GP); EA; Subscribe
Oct 2020: Department of the Air Force (DF); EA; Subscribe
Nov 2019: Department of the Army (DA); EA; Subscribe

MOE: USC; Code; Statement; Order of Use; Jump To Code; Qty Per Assy; UOM; Technical Document; Quantative Expression
US Marine Corps (DM): M; 0; Reversal Of Phrase Code Z 5320-01-259-7423

Army

Materiel Category and Inventory Manager:

T: Industrial Supplies (DLA/GSA Items)

Appropriation and Budget Activity:

2: Stock Fund Secondary Items

Management Inventory Segment:

2: Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.

Weapons System / End Item / Homogeneous Group:

CC: Other Aircraft Categories
Multi-Application Aviation Spares

Accounting Requirements:

X: Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.

Air Force

Fund:

SF: Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point

Budget:

9: 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors

Aggregation Code:

SX: SICA RESIDUAL MMAC-OC-ALC

Price Validation Code:

N: The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.

Expendability Recoverability Repairability:

N: Expendable. Condemn at User. Stock Fund (except Munitions).

Navy

Cognizance:

9B: Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg

Marine Corps

Stores Account:

1: Stock Fund Account Item

Combat Essentiality:

5: Critical Repair Part to a Combat Essential End Item

Echelon Management:

B2

Operational Test:

: No Special Procedures

NATO Stock Numbers Related to 5320-01-134-5844

5320-12-379-7694 5320-12-375-6211 5320-34-036-5105 5320-99-737-6610 5320-99-737-6565 5320-99-738-0091 5320-99-737-6557 5320-21-077-0736 5320-99-737-6570 5320-12-351-6287 5320-99-737-7669 5320-99-741-1587 5320-99-471-4420 5320-12-303-0732 5320-99-737-6614 5320-17-706-8543 5320-99-737-7668 5320-12-353-7851

Freight Information 5320-01-134-5844

5320-01-134-5844 has freight characteristics managed by the Southwestern Power Administration.It has a National Motor Freight Classification (NMFC) of 106510. A Sub NMFC of X. It has a NMFC Description of RIVETS I/S PLAIN/GALVANIZED ETC. 5320-01-134-5844 is rated as class 50 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 54760 which rates the freight between FCL and LCL. 5320-01-134-5844 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 5320-01-134-5844 is not classified as a special type of cargo when transported by water. 5320-01-134-5844 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

Packaging Data 5320-01-134-5844

Responsible Activity
Packaging Data Source: Primary Inventory Control Activity (PICA); --

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation: --; --; Plated/Coated Item; 2lb or less, one dimension 2" or less, other dimensions less than 24"; Above 110G; No Requirement

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying: --; --; --; --; Physical Protection; Any Suitable Process

Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking: No Requirement; --; --; --; Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal; No special marking

Intermediate Pack Level

Quantity of Unit Packs
Container: PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box

Procurement History 5320-01-134-5844 30 Records

Subscribe
View Prices

Contract: Date; CAGE; Quantity; Net Price; Std Price
SPE4A623FC50T: 17 Sep 2023; Subscribe; 1036; Subscribe; Subscribe
SPE4A623FC50T: 17 Sep 2023; Subscribe; 1036; Subscribe; Subscribe
SPE4A623FBDAH: 20 Aug 2023; Subscribe; 1203; Subscribe; Subscribe
SPE4A623FBDAG: 20 Aug 2023; Subscribe; 72; Subscribe; Subscribe
SPE4A623FBDAG: 20 Aug 2023; Subscribe; 72; Subscribe; Subscribe
SPE4A623FBDAH: 20 Aug 2023; Subscribe; 1203; Subscribe; Subscribe
SPE4A623FB7BS: 14 Jul 2023; Subscribe; 2796; Subscribe; Subscribe
SPE4A623FB7BT: 14 Jul 2023; Subscribe; 16876; Subscribe; Subscribe
SPE4A623FB7BS: 14 Jul 2023; Subscribe; 2796; Subscribe; Subscribe
SPE4A623FB7BT: 14 Jul 2023; Subscribe; 16876; Subscribe; Subscribe
SPE4A623F132N: 16 May 2023; Subscribe; 15564; Subscribe; Subscribe
SPE4A623F132N: 16 May 2023; Subscribe; 15564; Subscribe; Subscribe
SPE4A621F544W: 24 Sep 2021; Subscribe; 26098; Subscribe; Subscribe
SPE4A621F544W: 24 Sep 2021; Subscribe; 26098; Subscribe; Subscribe
SPE4A621F491Y: 22 Sep 2021; Subscribe; 26098; Subscribe; Subscribe
SPE4A621F491Y: 22 Sep 2021; Subscribe; 26098; Subscribe; Subscribe
SPE5EY19F3526: 21 Dec 2018; Subscribe; 1918; Subscribe; Subscribe
SPE5EY19F2301: 12 Nov 2018; Subscribe; 16048; Subscribe; Subscribe
SPE5EY19F0307: 03 Oct 2018; Subscribe; 11940; Subscribe; Subscribe
SPE5EY18F134U: 05 Jun 2018; Subscribe; 52219; Subscribe; Subscribe
SPE5E318V2260: 17 Jan 2018; Subscribe; 8830; Subscribe; Subscribe
SPE5E016M0879: 23 Sep 2016; Subscribe; 1143; Subscribe; Subscribe
SPE5E916V4243: 11 Jul 2016; Subscribe; 1034; Subscribe; Subscribe
SPE5E916V3768: 03 Jun 2016; Subscribe; 30; Subscribe; Subscribe
SPE5E916V3433: 10 May 2016; Subscribe; 2360; Subscribe; Subscribe
SPE5E916MQ093: 23 Nov 2015; Subscribe; 37543; Subscribe; Subscribe
SPE5E915MQ421: 18 Aug 2015; Subscribe; 55000; Subscribe; Subscribe
SPE5E914V4331: 11 Aug 2014; Subscribe; 49171; Subscribe; Subscribe
SPM5E013V1016: 13 Aug 2013; Subscribe; 21597; Subscribe; Subscribe
SPM5E913V0730: 30 Jan 2013; Subscribe; 51019; Subscribe; Subscribe

Contracting Technical Data File (CTDF) 5320-01-134-5844 April 2020

Criticality and Quality

Critical Item Code:: X
Flight Safety:
Life Support:
Certified Samples:
Serialization:
First Article Test (FAT):
Certificate of Quality Compliance:
Production Lot Testing:
Special Testing:
Qualified Products List (QPL):

Commercial Properties

Government Furnished Material:
Government Furnished Tooling:
Government Furnished Property:
Price Evaluation Code:
Diminshing Manufacturing Sources:
Warranty:
Commerical Off The Shelf (COTS):
End Item Application:
Auctioning Candidate:
Source of Procurement:
Contract Option:

Restrictions

Boeing Rights Guard:
Export Controlled:
Controlled Technical Data Package (TDP):
Restricted Technical Data Package (TDP):
Contains Classified Material
Weapons System Indicator Code (WSIC):: F

Packaging Requirements

Packaging Determination Table:
Packaging Review Code:: N
Special Packaging Instruction Number (SPIN):
Special Packaging Instruction Number Revision:
Special Packaging Instruction Number Date:
Pallet Reference Number Required:

Subscribe
View CTDF

Subscribe to View CTDF Details...

Marketplace 5320-01-134-5844

Related Documents 5320-01-134-5844 5+ Documents (More...)

Restrictions 5320-01-134-5844

Import and Export 5320-01-134-5844

End Users 5320-01-134-5844

Approved Sources 5320-01-134-5844

Datasheet 5320-01-134-5844

Weapon Systems (WSDC) 5320-01-134-5844

DLA Procurement Analysis 5320-01-134-5844

Management Data 5320-01-134-5844

Army

Air Force

Navy

Marine Corps

NATO Stock Numbers Related to 5320-01-134-5844

Freight Information 5320-01-134-5844

Packaging Data 5320-01-134-5844

Item Pack Level (Unpackaged)

Unit Pack Level (Packaged)

Intermediate Pack Level

Procurement History 5320-01-134-5844 30 Records

Contracting Technical Data File (CTDF) 5320-01-134-5844 April 2020

Criticality and Quality

Commercial Properties

Restrictions

Packaging Requirements
