5320-01-129-4525

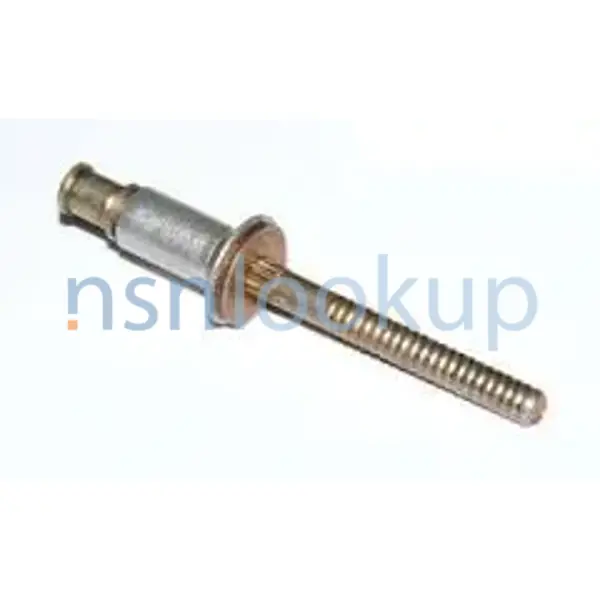

Blind Rivet

5320011294525 011294525 HC3212-5-2 NAS9302BNS-5-02 HC3212-5-02 AF3212-5-02 MBBN3013L4002 CR3212-5-02 M7885/3-5-2 AF3212-5-2 CR3212-5-2 M7885/3-5-02 MIL-R-7885/3 10124099 5320PL1574748

An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY. View more Blind Rivet

Managed by United States

NSN Created on 7 Apr 1982

Data Last Changed
November 2023

NATO Update Count
63

NATO Data Quality

5320-01-129-4525 RIVET,BLIND 5320011294525 011294525 1/3 — 5320-01-129-4525 Photo 1/3

AASK Style C9 for 5320-01-129-4525 2/3 — NSN 5320-01-129-4525 (Identification) 2/3

AAZF Style D32 for 5320-01-129-4525 3/3 — NSN 5320-01-129-4525 (Identification) 3/3

Marketplace 5320-01-129-4525

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

CR3212-5-02 RIVET,BLIND 40 EA NS

Subscribe to View Vendor Details...

CR3212-5-2 RIVET,BLIND 280 EA NS

M78853-5-2 RIVET,BLIND 18 EA NS

Subscribe to View Vendor Details...

CR3212-5-2 RIVET,BLIND 261 EA NS

Subscribe to View Vendor Details...

M78853-5-2 RIVET,BLIND 96 EA NS

Subscribe to View Vendor Details...

CR3212-5-02 RIVET,BLIND 99 EA NS

CR3212-5-2 RIVET,BLIND 99 EA NS

Subscribe to View Vendor Details...

CR3212-5-2 RIVET,BLIND 2110 EA NS

Subscribe to View Vendor Details...

MIL-R7885/3 RIVET,BLIND 66 EA NS

Subscribe to View Vendor Details...

M78853-5-02 RIVET,BLIND 298 EA NS

Subscribe to View Vendor Details...

CR3212-5-2 RIVET,BLIND 92 EA NS

Subscribe to View Vendor Details...

CR3212-5-2 RIVET,BLIND 50 EA NS

Subscribe to View Vendor Details...

M78853-5-2 RIVET,BLIND 60 EA NS

Subscribe to View Vendor Details...

CR3212-5-2 RIVET,BLIND 100 EA NS

Subscribe to View Vendor Details...

M7885/3-5-02 RIVET,BLIND 100 EA NS

CR3212-5-02 RIVET,BLIND 100 EA NS

Subscribe to View Vendor Details...

CR3212-5-02 RIVET,BLIND 100 EA NS

Updated Every Day

5320-01-129-4525 RQST NE

Updated Every Day

5320-01-129-4525 RQST

Updated Every Day

5320-01-129-4525 RQST NE

Restrictions 5320-01-129-4525

5320-01-129-4525 is a Blind Rivet that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.

Import and Export 5320-01-129-4525

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 5320-01-129-4525

US Army (A919)
Effective Date:: 1 Apr 2006
Former MOE Rule:: A187
Supplementary Receivers:: CT; AMC 1 AMSC G IMC Z IMCACTY CD

US Coast Guard (C918)
Effective Date:: 1 Apr 2006
Former MOE Rule:: C004
Supplementary Receivers:: XH; AMC 1 AMSC G

US Air Force (FXGI)
Effective Date:: 1 Apr 2006
Former MOE Rule:: FXKZ; AMC 1 AMSC G IMC Z IMCACTY SX

US Marine Corps (MC47)
Effective Date:: 1 Apr 2006
Former MOE Rule:: MC10; AMC 1 AMSC G IMC Z IMCACTY PA

US Navy (N9BZ)
Effective Date:: 1 Apr 2006
Former MOE Rule:: N9ZD
Supplementary Collaborators:: GTKE; AMC 1 AMSC G IMC Z IMCACTY KE

Austria (WB01)
Effective Date:: 1 Feb 2005

Finland (WF01)
Effective Date:: 1 Apr 2011

Poland (WP01)
Effective Date:: 1 Mar 2007

Czech Republic (WZ01)
Effective Date:: 1 Dec 2011

Brazil (YA01)
Effective Date:: 1 Oct 2000

Spain (YB01)
Effective Date:: 1 Apr 1991

Columbia (YC01)
Effective Date:: 1 Jun 2015

Israel (YD01)
Effective Date:: 1 Oct 2016

Singapore (YJ01)
Effective Date:: 1 Mar 1995

Malaysia (YW01)
Effective Date:: 1 Aug 1997

Australia (ZA01)
Effective Date:: 1 Apr 1991

Belgium (ZB01)
Effective Date:: 1 Apr 1997

Canada (ZC01)
Effective Date:: 1 Apr 1991

South Africa (ZD01)
Effective Date:: 1 Jan 2014

New Zealand (ZE01)
Effective Date:: 1 Apr 1991

France (ZF01)
Effective Date:: 1 Apr 1991

Germany (ZG01)
Effective Date:: 1 Apr 1991

Republic of Korea (ZH01)
Effective Date:: 1 Apr 1991

United Kingdom (ZK01)
Effective Date:: 1 Apr 1991

Philippines (ZM01)
Effective Date:: 1 Feb 2015

Netherlands (ZN01)
Effective Date:: 1 Aug 1995

Portugal (ZP01)
Effective Date:: 1 Apr 1991

Italy (ZR01)
Effective Date:: 1 Jan 2001

Denmark (ZS01)
Effective Date:: 1 Apr 1991

Norway (ZT01)
Effective Date:: 1 Apr 1991

Greece (ZU01)
Effective Date:: 1 May 2008

Turkey (ZW01)
Effective Date:: 1 Dec 2005

NATO Maintenance and Supply Agency (ZX01)
Effective Date:: 1 Sep 2004

Approved Sources 5320-01-129-4525

Part Number
Manufacturer
Status
HC3212-5-2: 17446 - Huck International, Inc (Active); Primary Buy; RNCC 3 RNVC 2 DAC 4
NAS9302BNS-5-02: 80205 - National Aerospace Standards (Active); Primary Buy; RNCC 3 RNVC 2 DAC E
HC3212-5-02: 17446 - Huck International, Inc (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
AF3212-5-02: 53551 - Allfast Fastening Systems, Llc (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
CR3212-5-2: C4293 - Fairchild Fasteners Europe - Vsd (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 3
CR3212-5-2: FB011 - Aero Stock (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 4
HC3212-5-02: 0HDW7 - Huck International, Inc. (Active); Secondary Buy; RNCC 5 RNVC 2 DAC A
CR3212-5-2: A0311 - Tecno Trade S.R.L. (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
MBBN3013L4002: C0417 - Airbus Helicopters Deutschland Gmbh (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 6
CR3212-5-02: 11815 - Sps Technologies, Llc (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 1
M7885/3-5-2: 81349 - Military Specifications (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
AF3212-5-2: 53551 - Allfast Fastening Systems, Llc (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC E
CR3212-5-2: F7652 - Klx Aerospace Solutions Ii Sas (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
CR3212-5-2: 92215 - Howmet Global Fastening Systems Inc (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
CR3212-5-2: 11815 - Sps Technologies, Llc (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 1
M7885/3-5-02: 81349 - Military Specifications (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
MIL-R-7885/3: 81349 - Military Specifications (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
10124099: A486G - Nimikkeistokeskus Ncb Finland (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
5320PL1574748: 9009H - Jednolity Indeks Materialowy - (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
CR3212-5-2: FB009 - Boeing Distribution Services Inc (Active); Advisory Reference; RNCC C RNVC 1 DAC 4

Datasheet 5320-01-129-4525

Characteristic
Specifications
FIIG: A040A0
Countersink Angle [CRSQ]: 99.0 Degrees Minimum And 101.0 Degrees Maximum
Expansion Device [ABAF]: Serrated Stem-Type W
Fastener Length [AASB]: 0.470 Inches Maximum
Grip Length [ANEE]: 0.065 Inches Minimum And 0.125 Inches Maximum
Head Major Diameter [AAZG]: 0.282 Inches Minimum And 0.290 Inches Maximum
Head Style [AASK]: Flush (Flat) Countersunk (Included Angle - Less Than 135 Deg W Or W/O Chamfer)
Material Document And Classification [MDCL]: Qq-A-430 Fed Spec Single Material Response Sleeve
Material [MATT]: Aluminum Alloy 5056 Sleeve
Material [MATT]: Steel Comp 8740 Stem
Material Document And Classification [MDCL]: Ams 6322 Assn Std Single Material Response Stem
Shank Diameter [AAZE]: 0.156 Inches Minimum And 0.160 Inches Maximum
Special Features [FEAT]: Ns" Letters After The Material Code "B" Indicate No Preference To Lock Type (May Be Visible Or Internal). Rivets With No Letter Code (Indicating Visible Lock Type) And Rivets With The Letter "H" After The Material Code (Indicating Internal Lock Type) Are Both Acceptable For This Item Of Supply.
Shank Style [AAZF]
Surface Treatment Document And Classification [STDC]: Mil-C-5541 Mil Spec Single Treatment Response Sleeve
Surface Treatment Document And Classification [STDC]: Qq-P-416,Type Ii,Class 2 Fed Spec Single Treatment Response Stem
Surface Treatment [SFTT]: Cadmium Stem
Surface Treatment [SFTT]: Chromate Sleeve

Weapon Systems (WSDC) 5320-01-129-4525

Subscribe
View WSDC

Subscribe to View Weapon System Codes...

Subscribe
View Data

DLA Procurement Analysis 5320-01-129-4525

Last Stock Position:: 67298 In Stock
DLA Administrative Lead Time:: Subscribe
DLA Production Lead Time:: Subscribe

Subscribe to View DLA Inventory and Forecast...

Management Data 5320-01-129-4525

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Oct 2022: Department of the Air Force (DF); EA; Subscribe
Oct 2021: Department of the Air Force (DF); EA; Subscribe
May 2021: Department of the Air Force (DF); EA; Subscribe
Nov 2019: Department of the Army (DA); EA; Subscribe

Army

Materiel Category and Inventory Manager:

T: Industrial Supplies (DLA/GSA Items)

Appropriation and Budget Activity:

2: Stock Fund Secondary Items

Management Inventory Segment:

2: Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.

Weapons System / End Item / Homogeneous Group:

00: DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item

Accounting Requirements:

X: Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.

Air Force

Fund:

SF: Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point

Budget:

9: 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors

Aggregation Code:

SX: SICA RESIDUAL MMAC-OC-ALC

Price Validation Code:

N: The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.

Expendability Recoverability Repairability:

N: Expendable. Condemn at User. Stock Fund (except Munitions).

Navy

Cognizance:

9B: Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg

Marine Corps

Stores Account:

1: Stock Fund Account Item

Combat Essentiality:

5: Critical Repair Part to a Combat Essential End Item

Echelon Management:

B2

Operational Test:

: No Special Procedures

Physical Category:

1: Bin

NATO Stock Numbers Related to 5320-01-129-4525

5320-12-379-7694 5320-12-375-6211 5320-34-036-5105 5320-99-737-6610 5320-99-737-6565 5320-99-738-0091 5320-99-737-6557 5320-21-077-0736 5320-99-737-6570 5320-12-351-6287 5320-99-737-7669 5320-99-741-1587 5320-99-471-4420 5320-12-303-0732 5320-99-737-6614 5320-17-706-8543 5320-99-737-7668 5320-12-353-7851

Freight Information 5320-01-129-4525

5320-01-129-4525 has freight characteristics managed by the Southwestern Power Administration.It has a National Motor Freight Classification (NMFC) of 106510. A Sub NMFC of X. It has a NMFC Description of RIVETS I/S PLAIN/GALVANIZED ETC. 5320-01-129-4525 is rated as class 50 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 54760 which rates the freight between FCL and LCL. 5320-01-129-4525 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 5320-01-129-4525 is not classified as a special type of cargo when transported by water. 5320-01-129-4525 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

Packaging Data 5320-01-129-4525

Responsible Activity
Packaging Data Source: Primary Inventory Control Activity (PICA); --

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation: --; --; Plated/Coated Item; 2lb or less, one dimension 2" or less, other dimensions less than 24"; Above 110G; No Requirement

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying: --; --; --; --; Physical Protection; Any Suitable Process

Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking: No Requirement; --; --; --; Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal; No special marking

Intermediate Pack Level

Quantity of Unit Packs
Container: PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box

Procurement History 5320-01-129-4525 Most Recent 63 Records

Subscribe
View Prices

Contract: Date; CAGE; Quantity; Net Price; Std Price
SPE5EY18F2323: 29 Nov 2017; Subscribe; 76569; Subscribe; Subscribe
SPE5EY18F2322: 29 Nov 2017; Subscribe; 1858; Subscribe; Subscribe
SPM5EY13D05421067: 07 Aug 2017; Subscribe; 104; Subscribe; Subscribe
SPM5EY13D0542106801: 07 Aug 2017; Subscribe; 70221; Subscribe; Subscribe
SPM5EY13D05421034: 29 Jun 2017; Subscribe; 47481; Subscribe; Subscribe
SPM5EY13D05420987: 15 May 2017; Subscribe; 45241; Subscribe; Subscribe
SPM5EY13D05420986: 04 May 2017; Subscribe; 99; Subscribe; Subscribe
SPM5EY13D05420963: 11 Apr 2017; Subscribe; 1893; Subscribe; Subscribe
SPM5EY13D05420964: 29 Mar 2017; Subscribe; 44808; Subscribe; Subscribe
SPM5EY13D05420962: 29 Mar 2017; Subscribe; 212; Subscribe; Subscribe
SPM5EY13D05420931: 22 Feb 2017; Subscribe; 405; Subscribe; Subscribe
SPM5EY13D05420932: 22 Feb 2017; Subscribe; 908; Subscribe; Subscribe
SPM5EY13D05420933: 22 Feb 2017; Subscribe; 32942; Subscribe; Subscribe
SPM5EY13D05420890: 29 Dec 2016; Subscribe; 4024; Subscribe; Subscribe
SPM5EY13D05420889: 29 Dec 2016; Subscribe; 540; Subscribe; Subscribe
SPM5EY13D05420888: 28 Dec 2016; Subscribe; 13438; Subscribe; Subscribe
SPM5EY13D05420887: 28 Dec 2016; Subscribe; 1579; Subscribe; Subscribe
SPM5EY13D05420886: 28 Dec 2016; Subscribe; 978; Subscribe; Subscribe
SPM5EY13D05420852: 16 Dec 2016; Subscribe; 134; Subscribe; Subscribe
SPM5EY13D05420853: 16 Dec 2016; Subscribe; 3123; Subscribe; Subscribe
SPM5EY13D05420849: 12 Dec 2016; Subscribe; 16391; Subscribe; Subscribe
SPM5EY13D05420847: 12 Dec 2016; Subscribe; 272; Subscribe; Subscribe
SPM5EY13D05420848: 12 Dec 2016; Subscribe; 1395; Subscribe; Subscribe
SPM5EY13D05420824: 22 Nov 2016; Subscribe; 779; Subscribe; Subscribe
SPM5EY13D05420825: 22 Nov 2016; Subscribe; 27652; Subscribe; Subscribe
SPM5EY13D05420777: 28 Sep 2016; Subscribe; 30018; Subscribe; Subscribe
SPM5EY13D0542076101: 31 Aug 2016; Subscribe; 16229; Subscribe; Subscribe
SPM5EY13D0542072901: 29 Jul 2016; Subscribe; 16200; Subscribe; Subscribe
SPM5EY13D0542067701: 06 Jun 2016; Subscribe; 16605; Subscribe; Subscribe
SPM5EY13D05420675: 02 Jun 2016; Subscribe; 469; Subscribe; Subscribe
SPM5EY13D05420676: 02 Jun 2016; Subscribe; 1304; Subscribe; Subscribe
SPM5EY13D05420540: 14 Dec 2015; Subscribe; 541; Subscribe; Subscribe
SPM5EY13D05420541: 14 Dec 2015; Subscribe; 1526; Subscribe; Subscribe
SPM5EY13D05420542: 14 Dec 2015; Subscribe; 20908; Subscribe; Subscribe
SPM5EY13D05420430: 25 Jun 2015; Subscribe; 965; Subscribe; Subscribe
SPM5EY13D05420431: 25 Jun 2015; Subscribe; 1761; Subscribe; Subscribe
SPM5EY13D05420432: 25 Jun 2015; Subscribe; 5170; Subscribe; Subscribe
SPM5EY13D05420419: 22 Jun 2015; Subscribe; 1862; Subscribe; Subscribe
SPM5EY13D05420417: 17 Jun 2015; Subscribe; 329; Subscribe; Subscribe
SPM5EY13D05420418: 17 Jun 2015; Subscribe; 441; Subscribe; Subscribe
SPM5EY13D05420414: 16 Jun 2015; Subscribe; 329; Subscribe; Subscribe
SPM5EY13D05420415: 16 Jun 2015; Subscribe; 659; Subscribe; Subscribe
SPM5EY13D05420416: 16 Jun 2015; Subscribe; 2125; Subscribe; Subscribe
SPM5EY13D05420366: 01 Jun 2015; Subscribe; 5802; Subscribe; Subscribe
SPM5EY13D05420365: 27 May 2015; Subscribe; 3064; Subscribe; Subscribe
SPM5EY13D05420367: 27 May 2015; Subscribe; 18352; Subscribe; Subscribe
SPM5EY13D05420311: 21 Apr 2015; Subscribe; 12125; Subscribe; Subscribe
SPM5EY13D05420310: 21 Apr 2015; Subscribe; 2477; Subscribe; Subscribe
SPM5EY13D05420275: 25 Mar 2015; Subscribe; 1747; Subscribe; Subscribe
SPM5EY13D05420276: 25 Mar 2015; Subscribe; 14975; Subscribe; Subscribe
SPM5EY13D05420190: 31 Dec 2014; Subscribe; 2816; Subscribe; Subscribe
SPM5EY13D05420182: 10 Dec 2014; Subscribe; 3126; Subscribe; Subscribe
SPM5EY13D05420178: 09 Dec 2014; Subscribe; 277; Subscribe; Subscribe
SPM5EY13D05420179: 09 Dec 2014; Subscribe; 39301; Subscribe; Subscribe
SPM5EY13D05420169: 03 Dec 2014; Subscribe; 782; Subscribe; Subscribe
SPM5EY13D05420170: 03 Dec 2014; Subscribe; 5725; Subscribe; Subscribe
SPM5EY13D05420125: 20 Oct 2014; Subscribe; 19700; Subscribe; Subscribe
SPM5EY13D05420097: 19 Aug 2014; Subscribe; 102; Subscribe; Subscribe
SPM5EY13D05420098: 19 Aug 2014; Subscribe; 18148; Subscribe; Subscribe
SPM5EY13D05420041: 31 Jan 2014; Subscribe; 28013; Subscribe; Subscribe
SPM5EY13D05420033: 12 Dec 2013; Subscribe; 24228; Subscribe; Subscribe
SPM5EY13D05420002: 23 Sep 2013; Subscribe; 3627; Subscribe; Subscribe
SPM5EY13D05420003: 23 Sep 2013; Subscribe; 23134; Subscribe; Subscribe

Contracting Technical Data File (CTDF) 5320-01-129-4525 April 2020

Criticality and Quality

Critical Item Code:
Flight Safety:
Life Support:
Certified Samples:
Serialization:
First Article Test (FAT):
Certificate of Quality Compliance:
Production Lot Testing:
Special Testing:
Qualified Products List (QPL):

Commercial Properties

Government Furnished Material:
Government Furnished Tooling:
Government Furnished Property:
Price Evaluation Code:
Diminshing Manufacturing Sources:
Warranty:
Commerical Off The Shelf (COTS):
End Item Application:
Auctioning Candidate:
Source of Procurement:
Contract Option:

Restrictions

Boeing Rights Guard:
Export Controlled:
Controlled Technical Data Package (TDP):
Restricted Technical Data Package (TDP):
Contains Classified Material
Weapons System Indicator Code (WSIC):: F

Packaging Requirements

Packaging Determination Table:
Packaging Review Code:: N
Special Packaging Instruction Number (SPIN):
Special Packaging Instruction Number Revision:
Special Packaging Instruction Number Date:
Pallet Reference Number Required:

Subscribe
View CTDF

Subscribe to View CTDF Details...

Marketplace 5320-01-129-4525

Related Documents 5320-01-129-4525 5+ Documents (More...)

Restrictions 5320-01-129-4525

Import and Export 5320-01-129-4525

End Users 5320-01-129-4525

Approved Sources 5320-01-129-4525

Datasheet 5320-01-129-4525

Weapon Systems (WSDC) 5320-01-129-4525

DLA Procurement Analysis 5320-01-129-4525

Management Data 5320-01-129-4525

Army

Air Force

Navy

Marine Corps

NATO Stock Numbers Related to 5320-01-129-4525

Freight Information 5320-01-129-4525

Packaging Data 5320-01-129-4525

Item Pack Level (Unpackaged)

Unit Pack Level (Packaged)

Intermediate Pack Level

Procurement History 5320-01-129-4525 Most Recent 63 Records

Contracting Technical Data File (CTDF) 5320-01-129-4525 April 2020

Criticality and Quality

Commercial Properties

Restrictions

Packaging Requirements
