5320-01-126-2660

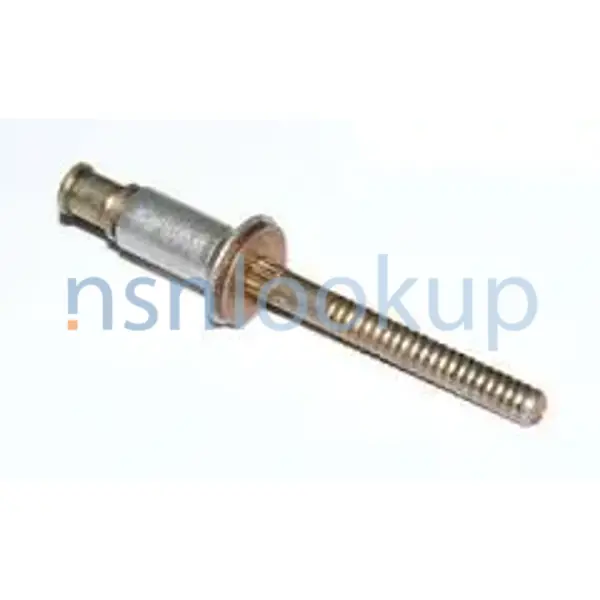

Blind Rivet
5320011262660 011262660 NAS9302BNS-4-07 HC3212-4-07 AF3212-4-07 CR 3212 - 4 - 7 CR3212-4-07 CR3212-4-7 HC3212-4-7 M7885/3-4-07 MIL-R-7885/3 AF3212-4-7 10124079 5320PL1526780
An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY. View more Blind Rivet
Managed by United States
NSN Created on 9 Feb 1982
Data Last Changed
November 2023
November 2023
NATO Update Count
57
57
NATO Data Quality
Marketplace 5320-01-126-2660
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 5320-01-126-2660 5+ Documents (More...)
NAS9302BNS-4-07 HC3212-4-07 AF3212-4-07 CR 3212 - 4 - 7 CR3212-4-07 CR3212-4-7 HC3212-4-7 M7885/3-4-
07 MIL-R-7885/3 AF3212-4-7 10124079 5320PL1526780 An item consisting of two or more of the following
M7885/3-4-07 RIVET,BLIND 522 EA NS Request Quotation CR3212-4-07 RIVET,BLIND 522 EA NS Request Quotation
07 MIL-R-7885/3 AF3212-4-7 10124079 5320PL1526780 An item consisting of two or more of the following
M7885/3-4-07 RIVET,BLIND 522 EA NS Request Quotation CR3212-4-07 RIVET,BLIND 522 EA NS Request Quotation
AF3212-4-07 HC3212-4-07 A0077A407 ASNA0077A407 An item consisting of two or more of the following
CR 3212 - 4 - 7 CR3212-4-07 CR3212-4-7 HC3212-4-7 M7885/3-4-07 MIL-R-7885/3 AF3212- Restrictions
Blind Rivet 5320011262660 011262660, Upgrade your Account Upgrade 5320-01-126-2660Blind Rivet5320011262660
CR 3212 - 4 - 7 CR3212-4-07 CR3212-4-7 HC3212-4-7 M7885/3-4-07 MIL-R-7885/3 AF3212- Restrictions
Blind Rivet 5320011262660 011262660, Upgrade your Account Upgrade 5320-01-126-2660Blind Rivet5320011262660
MIL-R-7885/3 RIVET,BLIND 57 EA NS Request Quotation Subscribe to View Vendor Details...
CR3212-4-7 RIVET,BLIND 100 EA NS Request Quotation Subscribe to View Vendor Details...
CR3212-4-7 RIVET,BLIND 74 EA NS Request Quotation Subscribe to View Vendor Details...
CR3212-4-7 RIVET,BLIND 100 EA NS Request Quotation Subscribe to View Vendor Details...
CR3212-4-7 RIVET,BLIND 74 EA NS Request Quotation Subscribe to View Vendor Details...
MIL-R-7885/3 RIVET,BLIND 57 EA NS Request Quotation Subscribe to View Vendor Details...
CR3212-4-7 RIVET,BLIND 100 EA NS Request Quotation Subscribe to View Vendor Details...
CR3212-4-7 RIVET,BLIND 74 EA NS Request Quotation Subscribe to View Vendor Details...
CR3212-4-7 RIVET,BLIND 100 EA NS Request Quotation Subscribe to View Vendor Details...
CR3212-4-7 RIVET,BLIND 74 EA NS Request Quotation Subscribe to View Vendor Details...
CR3212611 RIVET,BLIND 45 EA NS Request Quotation MIL-R-7885/3 RIVET,BLIND 57 EA NS Request Quotation
https//www.nsnlookup.com /fsg-53/fsc-5320/us 5320-01-126-2660 Blind Rivet 5320011262660 011262660,
MIL-R-7885/3 RIVET,BLIND 57 EA NS Request Quotation Subscribe to View Vendor Details...
https//www.nsnlookup.com /fsg-53/fsc-5320/us 5320-01-126-2660 Blind Rivet 5320011262660 011262660,
MIL-R-7885/3 RIVET,BLIND 57 EA NS Request Quotation Subscribe to View Vendor Details...
Restrictions 5320-01-126-2660
5320-01-126-2660 is a Blind Rivet that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5320-01-126-2660
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5320-01-126-2660
- US Army (A919)
- Effective Date:
- 1 Apr 2006
- Supplementary Receivers:
- BDCTBF
- US Coast Guard (C918)
- Effective Date:
- 1 Apr 2006
- US Air Force (FXGI)
- Effective Date:
- 1 Apr 2006
- US Navy (N9BZ)
- Effective Date:
- 1 Apr 2006
- Supplementary Collaborators:
- GTKE
- Finland (WF)
- Finland (WF01)
- Effective Date:
- 1 Apr 2011
- Poland (WP)
- Poland (WP01)
- Effective Date:
- 1 Mar 2007
- Brazil (YA)
- Brazil (YA01)
- Effective Date:
- 1 Aug 2010
- Spain (YB)
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Columbia (YC01)
- Effective Date:
- 1 Jun 2015
- Singapore (YJ)
- Singapore (YJ01)
- Effective Date:
- 1 Feb 1995
- Malaysia (YW)
- Malaysia (YW01)
- Effective Date:
- 1 Aug 1997
- Australia (ZA)
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Belgium (ZB)
- Belgium (ZB01)
- Effective Date:
- 1 Sep 2007
- Canada (ZC)
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE)
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- France (ZF)
- France (ZF01)
- Effective Date:
- 1 Mar 1999
- Germany (ZG)
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH)
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- United Kingdom (ZK)
- United Kingdom (ZK01)
- Effective Date:
- 1 Nov 1993
- Netherlands (ZN)
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 2013
- Portugal (ZP)
- Portugal (ZP01)
- Effective Date:
- 1 May 1998
- Italy (ZR)
- Italy (ZR01)
- Effective Date:
- 1 Mar 1999
- Denmark (ZS)
- Denmark (ZS01)
- Effective Date:
- 1 Feb 2011
- Greece (ZU)
- Greece (ZU01)
- Effective Date:
- 1 May 2008
- NATO Maintenance and Supply Agency (ZX)
- NATO Maintenance and Supply Agency (ZX01)
- Effective Date:
- 1 Jan 2007
- United States of America (ZZ)
Approved Sources 5320-01-126-2660
- Part Number
- Manufacturer
- Status
- NAS9302BNS-4-07
- Manufacturer
- 80205 - National Aerospace Standards (Active)
- Primary Buy
- Primary Buy
- HC3212-4-07
- 0HDW7 - Huck International, Inc. (Active)
- Secondary Buy
- Secondary Buy
- AF3212-4-07
- 53551 - Allfast Fastening Systems, Llc (Active)
- Secondary Buy
- Secondary Buy
- CR3212-4-7
- C4293 - Fairchild Fasteners Europe - Vsd (Active)
- Secondary Buy
- Secondary Buy
- CR 3212 - 4 - 7
- AC910 - Aertekno S.R.L. (Active)
- Secondary Buy
- Secondary Buy
- CR3212-4-07
- 11815 - Sps Technologies, Llc (Active)
- Secondary Buy
- Secondary Buy
- CR3212-4-7
- 92215 - Howmet Global Fastening Systems Inc (Active)
- Secondary Buy
- Secondary Buy
- CR3212-4-7
- F7652 - Klx Aerospace Solutions Ii Sas (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- HC3212-4-7
- 17446 - Huck International, Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- M7885/3-4-07
- 81349 - Military Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- MIL-R-7885/3
- 81349 - Military Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- AF3212-4-7
- 53551 - Allfast Fastening Systems, Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- CR3212-4-7
- 11815 - Sps Technologies, Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 10124079
- A486G - Nimikkeistokeskus Ncb Finland (Active)
- NATO Reference
- NATO Reference
- 5320PL1526780
- 9009H - Jednolity Indeks Materialowy - (Active)
- NATO Reference
- NATO Reference
- CR3212-4-7
- FB009 - Boeing Distribution Services Inc (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5320-01-126-2660
- Characteristic
- Specifications
- FIIG
- Specifications
- A040A0
- End Item Identification [AGAV]
- Helicopter Observation (Ahip), Oh-58D; Aircraft, B-2 Bomber (Atb); Aircraft, Ac-130H, Mc-130H, Ec-130E, Hc-130; Aircraft, Phantom F-4; Aircraft, Airlifter C-17A; Support Equipment, B-1 Aircraft; Aircraft Mh-47E; Support Equipment (Se), B-2 Bomber; F/A-18E/F Hornet Aircraft; Missle, Vehicle Mounter Stinger (Avenger)
- Countersink Angle [CRSQ]
- 99.0 Degrees Minimum And 101.0 Degrees Maximum
- Expansion Device [ABAF]
- Serrated Stem-Type W
- Fastener Length [AASB]
- 0.527 Inches Minimum And 0.547 Inches Maximum
- Grip Length [ANEE]
- 0.376 Inches Minimum And 0.437 Inches Maximum
- Head Major Diameter [AAZG]
- 0.229 Inches Maximum
- Head Style [AASK]
- Flush (Flat) Countersunk (Included Angle - Less Than 135 Deg W Or W/O Chamfer)
- Material Document And Classification [MDCL]
- Qq-A-430 Fed Spec Single Material Response Sleeve
- Material [MATT]
- Aluminum Alloy 5056 Sleeve
- Material [MATT]
- Steel Comp 8740 Stem
- Material Document And Classification [MDCL]
- Ams 6322 Assn Std Single Material Response Stem
- Shank Diameter [AAZE]
- 0.125 Inches Minimum And 0.129 Inches Maximum
- Shank Style [AAZF]
- Self-Plugging Mechanically Locked Stem
- Special Features [FEAT]
- Ns" Letters After The Material Code "B" Indicate No Preference To Lock Type (May Be Visible Or Internal). Rivets With No Letter Code (Indicating Visible Lock Type) And Rivets With The Letter "H" After The Material Code (Indicating Internal Lock Type) Are Both Acceptable For This Item Of Supply.
- Surface Treatment Document And Classification [STDC]
- Mil-C-5541 Mil Spec Single Treatment Response Sleeve
- Surface Treatment Document And Classification [STDC]
- Qq-P-416,Type 2,Class 2 Fed Spec Single Treatment Response Stem
- Surface Treatment [SFTT]
- Cadmium Stem And Chromate Stem
- Surface Treatment [SFTT]
- Chromate Sleeve
Weapon Systems (WSDC) 5320-01-126-2660
DLA Procurement Analysis 5320-01-126-2660
- Last Stock Position:
- 2697 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5320-01-126-2660
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5320-01-126-2660
Freight Information 5320-01-126-2660
5320-01-126-2660 has freight characteristics managed by the Southwestern Power Administration.It has a National Motor Freight Classification (NMFC) of 013630. A Sub NMFC of X. It has a NMFC Description of ALUM RIVETS. 5320-01-126-2660 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 05720 which rates the freight between FCL and LCL. 5320-01-126-2660 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5320-01-126-2660 is not classified as a special type of cargo when transported by water. 5320-01-126-2660 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Procurement History 5320-01-126-2660 18 Records
- Contract
- Date
- CAGE
- Quantity
- Net Price
- Std Price
- CAGE
- SPE4A623FB6KU
- 14 Jul 2023
- Subscribe
- 6806
- Subscribe
- Subscribe
- Subscribe
- SPE4A623FB6KU
- 14 Jul 2023
- Subscribe
- 6806
- Subscribe
- Subscribe
- Subscribe
- SPE4A623F140V
- 18 May 2023
- Subscribe
- 4607
- Subscribe
- Subscribe
- Subscribe
- SPE4A623F140V
- 18 May 2023
- Subscribe
- 4607
- Subscribe
- Subscribe
- Subscribe
- SPE4A622F9885
- 20 Mar 2022
- Subscribe
- 3040
- Subscribe
- Subscribe
- Subscribe
- SPE4A622F9885
- 20 Mar 2022
- Subscribe
- 3040
- Subscribe
- Subscribe
- Subscribe
- SPE4A621F543N
- 24 Sep 2021
- Subscribe
- 3040
- Subscribe
- Subscribe
- Subscribe
- SPE4A621F543N
- 24 Sep 2021
- Subscribe
- 3040
- Subscribe
- Subscribe
- Subscribe
- SPE5EY19F4350
- 21 Dec 2018
- Subscribe
- 1410
- Subscribe
- Subscribe
- Subscribe
- SPE5EY19F1746
- 31 Oct 2018
- Subscribe
- 5239
- Subscribe
- Subscribe
- Subscribe
- SPE5EY18F310J
- 17 Aug 2018
- Subscribe
- 4341
- Subscribe
- Subscribe
- Subscribe
- SPE5EY18F0646
- 16 Oct 2017
- Subscribe
- 5039
- Subscribe
- Subscribe
- Subscribe
- SPM5EY13D05420983
- 04 May 2017
- Subscribe
- 4608
- Subscribe
- Subscribe
- Subscribe
- SPM5EY13D05420794
- 05 Oct 2016
- Subscribe
- 5313
- Subscribe
- Subscribe
- Subscribe
- SPM5EY13D05420615
- 22 Mar 2016
- Subscribe
- 3699
- Subscribe
- Subscribe
- Subscribe
- SPM5EY13D05420498
- 02 Oct 2015
- Subscribe
- 3087
- Subscribe
- Subscribe
- Subscribe
- SPM5EY13D05420499
- 02 Oct 2015
- Subscribe
- 3197
- Subscribe
- Subscribe
- Subscribe
- SPM5E913MQ161
- 19 Mar 2013
- Subscribe
- 22694
- Subscribe
- Subscribe
- Subscribe
Contracting Technical Data File (CTDF) 5320-01-126-2660 April 2020
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
