5320-01-099-6073
Tubular Rivet
5320010996073 010996073 SM-B-447393
A headed fastening device having a smooth shank which is hollow or having a cavity at its end and designed to have the shank clinched after insertion. View more Tubular Rivet
January 2023
10
Marketplace 5320-01-099-6073
Request a Quotation from participating marketplace vendors
Related Documents 5320-01-099-6073 2+ Documents (More...)
RQST NE Updated Every Day 5320-01-099-6073 RQST Updated Every Day 5320-01-099-6073 RQST NE Related Documents
5320-01-099-6073 2+ Documents ( More... ) https//www.nsnlookup.com /fsg-53/fsc-5320/us 5320-01-099-6073
from New Zealand (NZ) -852-8902 Grooved Pin-Rivet https//www.nsnlookup.com /fsg-53/fsc-5320/us 5320-01-099-6073
Tubular Rivet 5320010996073 010996073 Every Day 5320-01-099-6073 RQST NE Restrictions https//www.nsnlookup.com
Restrictions 5320-01-099-6073
5320-01-099-6073 is a Tubular Rivet that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5320-01-099-6073
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5320-01-099-6073
- Spain (YB01)
- Effective Date:
- 1 Jan 2002
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Aug 1995
Approved Sources 5320-01-099-6073
- Part Number
- Manufacturer
- Status
- SM-B-447393
- Manufacturer
- 80063 - Us Army Communications & Electronics (Active)
- Primary Buy
- Primary Buy
Datasheet 5320-01-099-6073
- Characteristic
- Specifications
- FIIG
- Specifications
- A040A0
- Fastener Length [AASB]
- 0.123 Inches Nominal
- Grip Length [ANEE]
- 0.078 Inches Nominal
- Head Height [AASU]
- 0.060 Inches Nominal
- Head Major Diameter [AAZG]
- 0.280 Inches Nominal
- Head Style [AASK]
- Flat/Tinner's
- Hole Depth [AAZQ]
- 0.062 Inches Minimum And 0.067 Inches Maximum
- Hole Diameter [AAUB]
- 0.057 Inches Minimum And 0.067 Inches Maximum
- Material [MATT]
- Copper Alloy Overall
- Shank Diameter [AAZE]
- 0.090 Inches Minimum And 0.093 Inches Maximum

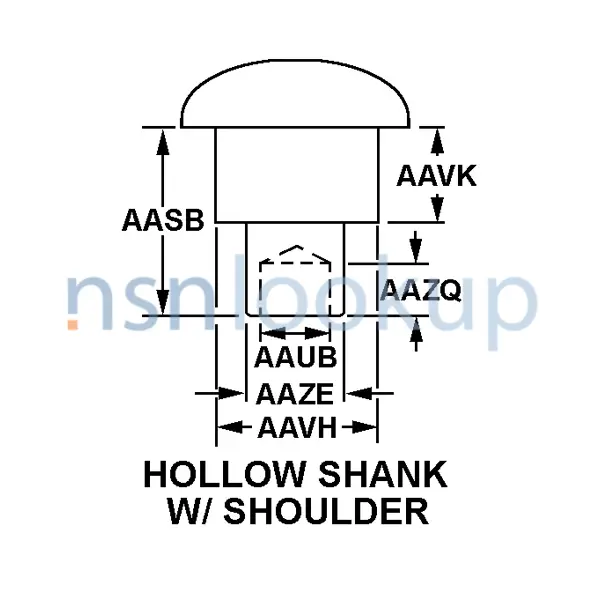

- Shank Style [AAZF]
- Hollow Shank W/Shoulder
- Shoulder Diameter [AAVH]
- 0.115 Inches Minimum And 0.125 Inches Maximum
- Shoulder Length [AAVK]
- 0.078 Inches Nominal
Similar Supply Items to 5320-01-099-6073
Freight Information 5320-01-099-6073
5320-01-099-6073 has freight characteristics managed by Portugal.. 5320-01-099-6073 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
