5320-01-092-8759
Blind Rivet
5320010928759 010928759 CR3243-5-9 CR3243-5-09
An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY. View more Blind Rivet
May 2023
32
Marketplace 5320-01-092-8759
Request a Quotation from participating marketplace vendors
Related Documents 5320-01-092-8759 1+ Documents (More...)

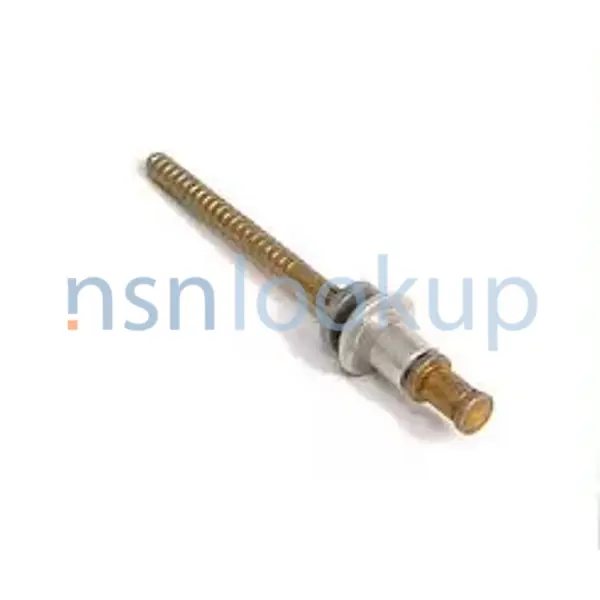

Photo 1/3 NSN 5320-01-092-8759 (Identification) 2/3 NSN 5320-01-092-8759 (Identification) 3/3 -
CR3243-5-09 RIVET,BLIND 85 EA NS Request Quotation Updated Every Day 5320-01-092-8759 RQST NE Updated
Restrictions 5320-01-092-8759
5320-01-092-8759 is a Blind Rivet that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5320-01-092-8759
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5320-01-092-8759
- Spain (YB01)
- Effective Date:
- 1 Apr 2001
- Columbia (YC01)
- Effective Date:
- 1 Jun 2015
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- France (ZF01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Dec 2013
- Republic of Korea (ZH01)
- Effective Date:
- 1 Oct 2002
- United Kingdom (ZK01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Aug 1997
- Italy (ZR01)
- Effective Date:
- 1 Jul 1997
- Norway (ZT01)
- Effective Date:
- 1 Mar 1994
- Greece (ZU01)
- Effective Date:
- 1 Apr 2006
- Turkey (ZW01)
- Effective Date:
- 1 Dec 2005
- NATO Maintenance and Supply Agency (ZX01)
- Effective Date:
- 1 Jun 2010
Approved Sources 5320-01-092-8759
- Part Number
- Manufacturer
- Status
- CR3243-5-9
- Manufacturer
- 11815 - Sps Technologies, Llc (Active)
- Primary Buy
- Primary Buy
- CR3243-5-9
- FB009 - Boeing Distribution Services Inc (Active)
- Secondary Buy
- Secondary Buy
- CR3243-5-09
- 11815 - Sps Technologies, Llc (Active)
- Secondary Buy
- Secondary Buy
- CR3243-5-9
- 05693 - Cherry Textron Inc Cherry Commercial (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- CR3243-5-9
- F7652 - Klx Aerospace Solutions Ii Sas (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5320-01-092-8759
- Characteristic
- Specifications
- FIIG
- Specifications
- A040A0
- Expansion Device [ABAF]
- Serrated Stem-Type W
- Fastener Length [AASB]
- 0.674 Inches Minimum And 0.694 Inches Maximum
- Grip Length [ANEE]
- 0.501 Inches Minimum And 0.562 Inches Maximum
- Head Height [AASU]
- 0.067 Inches Minimum And 0.077 Inches Maximum
- Head Major Diameter [AAZG]
- 0.302 Inches Minimum And 0.324 Inches Maximum
- Head Style [AASK]
- Universal
- Material Document And Classification [MDCL]
- Qq-A-430 Fed Spec 1St Material Response Sleeve
- Material [MATT]
- Aluminum Alloy 5056 Sleeve
- Material [MATT]
- Steel Comp 8740 Stem
- Material Document And Classification [MDCL]
- Ams6322 Assn Std 2Nd Material Response Stem
- Shank Diameter [AAZE]
- 0.172 Inches Minimum And 0.176 Inches Maximum
- Shank Style [AAZF]
- Self-Plugging Mechanically Locked Stem
- Surface Treatment Document And Classification [STDC]
- Qq-P-416 Type2,Class 2 Fed Spec Single Treatment Response Stem
- Surface Treatment [SFTT]
- Cadmium Stem
Weapon Systems (WSDC) 5320-01-092-8759
DLA Procurement Analysis 5320-01-092-8759
NATO Stock Numbers Related to 5320-01-092-8759
Freight Information 5320-01-092-8759
5320-01-092-8759 has freight characteristics.. 5320-01-092-8759 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
