5320-01-085-3321

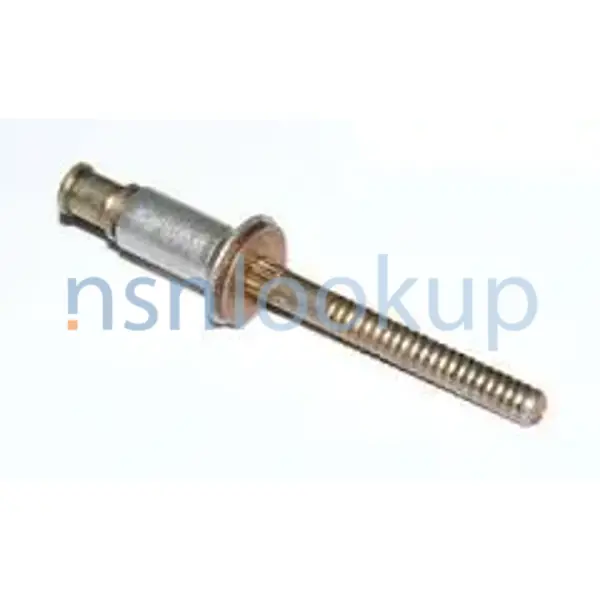

Blind Rivet

5320010853321 010853321 719817-1 CR3212 M2133714 AF3212-4-02 NAS9302BNS-4-02 ASN-A0077A402 MBBN3013L3202 HC3212-4-2 HC3212-4-02 ASNA0077A402 CR 3212 - 4 - 2 CR3212-4-2 CR3212-4-02 MIL-R-7885/3 AF3212-4-2 M7885/3-4-02 10124036 5320PL0851583

An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY. View more Blind Rivet

Managed by United States

NSN Created on 6 Nov 1979

Data Last Changed
November 2023

NATO Update Count
78

NATO Data Quality

5320-01-085-3321 RIVET,BLIND 5320010853321 010853321 1/3 — 5320-01-085-3321 Photo 1/3

AASK Style C9 for 5320-01-085-3321 2/3 — NSN 5320-01-085-3321 (Identification) 2/3

AAZF Style D32 for 5320-01-085-3321 3/3 — NSN 5320-01-085-3321 (Identification) 3/3

Marketplace 5320-01-085-3321

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

CR3212-4-02 RIVET,BLIND 200 EA NS

Subscribe to View Vendor Details...

M78853-4-2 RIVET,BLIND 145 EA NS

Subscribe to View Vendor Details...

CR3212-4-02 RIVET,BLIND 99 EA NS

CR3212-4-2 RIVET,BLIND 99 EA NS

Subscribe to View Vendor Details...

M7885/3-4-02 RIVET,BLIND 112 EA NS

Subscribe to View Vendor Details...

CR3212-4-2 RIVET,BLIND 80 EA NS

CR3212-4-02 RIVET,BLIND 2 EA NS

Subscribe to View Vendor Details...

CR3212-4-2 RIVET,BLIND 118 EA NS

Subscribe to View Vendor Details...

CR3212-4-2 RIVET,BLIND 70 EA NS

Subscribe to View Vendor Details...

CR3212-4-2 RIVET,BLIND 100 EA NS

Subscribe to View Vendor Details...

CR3212-4-2 RIVET,BLIND 300 EA NS

Subscribe to View Vendor Details...

M7885/3-4-02 RIVET,BLIND 595 EA NS

CR3212-4-2 RIVET,BLIND 189 EA NS

Subscribe to View Vendor Details...

CR3212-4-02 RIVET,BLIND 1100 EA NS

M7885/3-4-02 RIVET,BLIND 512 EA NS

Subscribe to View Vendor Details...

010853321.5320 RIVET,BLIND 178 EA NS

Updated Every Day

5320-01-085-3321 RQST NE

Updated Every Day

5320-01-085-3321 RQST

Updated Every Day

5320-01-085-3321 RQST NE

Restrictions 5320-01-085-3321

5320-01-085-3321 is a Blind Rivet that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.

Import and Export 5320-01-085-3321

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 5320-01-085-3321

US Army (A919)
Effective Date:: 1 Apr 2006
Former MOE Rule:: A187
Supplementary Receivers:: BDCTCLBF; AMC 1 AMSC G IMC Z IMCACTY CD

US Coast Guard (C918)
Effective Date:: 1 Apr 2006
Former MOE Rule:: C004
Supplementary Receivers:: XH; AMC 1 AMSC G

US Air Force (FXGI)
Effective Date:: 1 Apr 2006
Former MOE Rule:: FXKZ; AMC 1 AMSC G IMC Z IMCACTY SX

NASA (G860)
Effective Date:: 1 Apr 1997; AMC 0 AMSC 0 AAC C

US Marine Corps (MC47)
Effective Date:: 1 Apr 2006
Former MOE Rule:: MC10; AMC 1 AMSC G IMC Z IMCACTY PA

US Navy (N9BZ)
Effective Date:: 1 Apr 2006
Former MOE Rule:: N9ZD
Supplementary Collaborators:: GTKEHD; AMC 1 AMSC G IMC Z IMCACTY GH

Austria (WB01)
Effective Date:: 1 Feb 2005

Finland (WF01)
Effective Date:: 1 Apr 2011

Slovenia (WL01)
Effective Date:: 1 Dec 2011

Poland (WP01)
Effective Date:: 1 Feb 2007

Bulgaria (WU01)
Effective Date:: 1 Nov 2002

Czech Republic (WZ01)
Effective Date:: 1 Feb 2007

Brazil (YA01)
Effective Date:: 1 Dec 1999

Spain (YB01)
Effective Date:: 1 Apr 1991

Columbia (YC01)
Effective Date:: 1 Jun 2015

Singapore (YJ01)
Effective Date:: 1 Apr 1991

Saudi Arabia (YS01)
Effective Date:: 1 Feb 2015

Malaysia (YW01)
Effective Date:: 1 Apr 1991

Australia (ZA01)
Effective Date:: 1 Apr 1991

Belgium (ZB01)
Effective Date:: 1 Aug 1994

Canada (ZC01)
Effective Date:: 1 Apr 1991

New Zealand (ZE01)
Effective Date:: 1 Apr 1991

France (ZF01)
Effective Date:: 1 Apr 1991

Germany (ZG01)
Effective Date:: 1 Apr 1991

Republic of Korea (ZH01)
Effective Date:: 1 Apr 1991

United Kingdom (ZK01)
Effective Date:: 1 Apr 1991

Philippines (ZM01)
Effective Date:: 1 Feb 2015

Netherlands (ZN01)
Effective Date:: 1 Aug 1995

Portugal (ZP01)
Effective Date:: 1 Apr 1991

Italy (ZR01)
Effective Date:: 1 Jul 1997

Denmark (ZS01)
Effective Date:: 1 Apr 1991

Norway (ZT01)
Effective Date:: 1 Apr 1991

Greece (ZU01)
Effective Date:: 1 Aug 1995

Turkey (ZW01)
Effective Date:: 1 Dec 2005

NATO Maintenance and Supply Agency (ZX01)
Effective Date:: 1 Jan 2014

Approved Sources 5320-01-085-3321

Part Number
Manufacturer
Status
NAS9302BNS-4-02: 80205 - National Aerospace Standards (Active); Primary Buy; RNCC 3 RNVC 2 DAC E
CR3212: C4293 - Fairchild Fasteners Europe - Vsd (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 3
M2133714: 5810G - Aero Vodochody Aerospace A.S. (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 4
AF3212-4-02: 53551 - Allfast Fastening Systems, Llc (Active); Secondary Buy; RNCC 5 RNVC 2 DAC E
CR3212-4-02: FB009 - Boeing Distribution Services Inc (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 3
NAS9302BNS-4-02: K0668 - Leonardo Uk Ltd (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 4
ASN-A0077A402: F5442 - Airbus Group Sas (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 4
MBBN3013L3202: C0418 - Airbus Helicopters Deutschland Gmbh (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 6
HC3212-4-2: 17446 - Huck International, Inc (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 6
CR3212-4-02: 11815 - Sps Technologies, Llc (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 1
HC3212-4-02: 17446 - Huck International, Inc (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
ASNA0077A402: F0210 - Airbus Helicopters (Ets De (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 4
CR3212-4-2: FB011 - Aero Stock (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 4
CR3212-4-2: A0311 - Tecno Trade S.R.L. (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
CR 3212 - 4 - 2: AC910 - Aertekno S.R.L. (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
CR3212-4-02: 5M902 - Howmet Global Fastening Systems Inc. (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
HC3212-4-02: 0HDW7 - Huck International, Inc. (Active); Secondary Buy; RNCC 5 RNVC 2 DAC A
CR3212-4-02: C4293 - Fairchild Fasteners Europe - Vsd (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 3
CR3212-4-2: F7652 - Klx Aerospace Solutions Ii Sas (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
CR3212-4-02: 92215 - Howmet Global Fastening Systems Inc (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
CR3212-4-2: 11815 - Sps Technologies, Llc (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 1
MIL-R-7885/3: 81349 - Military Specifications (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
CR3212: 92215 - Howmet Global Fastening Systems Inc (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
AF3212-4-2: 53551 - Allfast Fastening Systems, Llc (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC E
M7885/3-4-02: 81349 - Military Specifications (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
10124036: A486G - Nimikkeistokeskus Ncb Finland (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
5320PL0851583: 9009H - Jednolity Indeks Materialowy - (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
719817-1: D9182 - Zf Industrieantriebe Witten Gmbh (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
CR3212-4-2: FB009 - Boeing Distribution Services Inc (Active); Advisory Reference; RNCC C RNVC 1 DAC 4

Datasheet 5320-01-085-3321

Characteristic
Specifications
FIIG: A040A0
Countersink Angle [CRSQ]: 99.0 Degrees Minimum And 101.0 Degrees Maximum
Expansion Device [ABAF]: Serrated Stem-Type W
Fastener Length [AASB]: 0.189 Inches Minimum And 0.209 Inches Maximum
Grip Length [ANEE]: 0.051 Inches Minimum And 0.125 Inches Maximum
Head Major Diameter [AAZG]: 0.229 Inches Maximum
Head Style [AASK]: Flush (Flat) Countersunk (Included Angle - Less Than 135 Deg W Or W/O Chamfer)
Material Document And Classification [MDCL]: Qq-A-430 Fed Spec Single Material Response Sleeve
Material [MATT]: Aluminum Alloy 5056 Sleeve
Material [MATT]: Steel Comp 8740 Stem
Material Document And Classification [MDCL]: Ams 6322 Assn Std Single Material Response Stem
Shank Diameter [AAZE]: 0.125 Inches Minimum And 0.129 Inches Maximum
Shank Style [AAZF]: Self-Plugging Mechanically Locked Stem
Special Features [FEAT]: Ns" Letters After The Material Code "B" Indicate No Preference To Lock Type (May Be Visible Or Internal). Rivets With No Letter Code (Indicating Visible Lock Type) And Rivets With The Letter "H" After The Material Code (Indicating Internal Lock Type) Are Both Acceptable For This Item Of Supply.
Surface Treatment Document And Classification [STDC]: Mil-C-5541 Mil Spec Single Treatment Response Sleeve
Surface Treatment Document And Classification [STDC]: Qq-P-416,Type 2,Class 2 Fed Spec Single Treatment Response Stem
Surface Treatment [SFTT]: Cadmium Stem And Chromate Stem
Surface Treatment [SFTT]: Chromate Sleeve

Weapon Systems (WSDC) 5320-01-085-3321

Subscribe
View WSDC

Subscribe to View Weapon System Codes...

Subscribe
View Data

DLA Procurement Analysis 5320-01-085-3321

Last Stock Position:: 89633 In Stock
DLA Administrative Lead Time:: Subscribe
DLA Production Lead Time:: Subscribe

Subscribe to View DLA Inventory and Forecast...

Management Data 5320-01-085-3321

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Oct 2022: Department of the Navy (DN); EA; Subscribe
Oct 2021: Department of the Air Force (DF); EA; Subscribe
May 2021: Department of the Air Force (DF); EA; Subscribe
Apr 2020: US Marine Corps (DM); EA; Subscribe
Nov 2019: Department of the Army (DA); EA; Subscribe

Army

Materiel Category and Inventory Manager:

T: Industrial Supplies (DLA/GSA Items)

Appropriation and Budget Activity:

2: Stock Fund Secondary Items

Management Inventory Segment:

2: Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.

Weapons System / End Item / Homogeneous Group:

00: DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item

Accounting Requirements:

X: Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.

Air Force

Fund:

SF: Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point

Budget:

9: 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors

Aggregation Code:

SX: SICA RESIDUAL MMAC-OC-ALC

Price Validation Code:

V: The current standard price has been validated.
The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
ZOP or Standard price challenges are permissible but must be supported by adequate justification.

Expendability Recoverability Repairability:

N: Expendable. Condemn at User. Stock Fund (except Munitions).

Navy

Cognizance:

9B: Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg

Marine Corps

Stores Account:

1: Stock Fund Account Item

Combat Essentiality:

2: Non-Critical Repair Part

Echelon Management:

B2

Operational Test:

: No Special Procedures

NATO Stock Numbers Related to 5320-01-085-3321

5320-12-379-7694 5320-12-375-6211 5320-34-036-5105 5320-99-737-6610 5320-99-737-6565 5320-99-738-0091 5320-99-737-6557 5320-21-077-0736 5320-99-737-6570 5320-12-351-6287 5320-99-737-7669 5320-99-741-1587 5320-99-471-4420 5320-12-303-0732 5320-99-737-6614 5320-17-706-8543 5320-99-737-7668 5320-12-353-7851

Freight Information 5320-01-085-3321

5320-01-085-3321 has freight characteristics managed by the Southwestern Power Administration.It has a National Motor Freight Classification (NMFC) of 013630. A Sub NMFC of X. It has a NMFC Description of ALUM RIVETS. 5320-01-085-3321 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 05720 which rates the freight between FCL and LCL. 5320-01-085-3321 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5320-01-085-3321 is not classified as a special type of cargo when transported by water. 5320-01-085-3321 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

Packaging Data 5320-01-085-3321

Responsible Activity
Packaging Data Source: Primary Inventory Control Activity (PICA); --

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation: --; --; Plated/Coated Item; 2lb or less, one dimension 2" or less, other dimensions less than 24"; Above 110G; No Requirement

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying: --; --; --; --; Physical Protection; Any Suitable Process

Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking: No Requirement; --; --; --; Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal; No special marking

Intermediate Pack Level

Quantity of Unit Packs
Container: PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box

Procurement History 5320-01-085-3321 Most Recent 54 Records

Subscribe
View Prices

Contract: Date; CAGE; Quantity; Net Price; Std Price
SPE4A624FA9SX: 27 Oct 2023; Subscribe; 2500; Subscribe; Subscribe
SPE4A624FA0GZ: 12 Oct 2023; Subscribe; 100; Subscribe; Subscribe
SPE4A624FA0GZ: 12 Oct 2023; Subscribe; 100; Subscribe; Subscribe
SPE4A623FC63N: 17 Sep 2023; Subscribe; 8620; Subscribe; Subscribe
SPE4A623FC63N: 17 Sep 2023; Subscribe; 8620; Subscribe; Subscribe
SPE4A623FBCEZ: 20 Aug 2023; Subscribe; 51116; Subscribe; Subscribe
SPE4A623FBCEZ: 20 Aug 2023; Subscribe; 51116; Subscribe; Subscribe
SPE4A623FB7JK: 14 Jul 2023; Subscribe; 115235; Subscribe; Subscribe
SPE4A623FB7JK: 14 Jul 2023; Subscribe; 115235; Subscribe; Subscribe
SPE4A623F132G: 16 May 2023; Subscribe; 44594; Subscribe; Subscribe
SPE4A623F132G: 16 May 2023; Subscribe; 44594; Subscribe; Subscribe
SPE4A623F6025: 13 Jan 2023; Subscribe; 3947; Subscribe; Subscribe
SPE4A623F6026: 13 Jan 2023; Subscribe; 40647; Subscribe; Subscribe
SPE4A623F6025: 13 Jan 2023; Subscribe; 3947; Subscribe; Subscribe
SPE4A623F6026: 13 Jan 2023; Subscribe; 40647; Subscribe; Subscribe
SPE4A622F137F: 18 May 2022; Subscribe; 44437; Subscribe; Subscribe
SPE4A622F137E: 18 May 2022; Subscribe; 157; Subscribe; Subscribe
SPE4A622F137E: 18 May 2022; Subscribe; 157; Subscribe; Subscribe
SPE4A622F137F: 18 May 2022; Subscribe; 44437; Subscribe; Subscribe
SPE4A621F169C: 14 May 2021; Subscribe; 44594; Subscribe; Subscribe
SPE4A621F169C: 14 May 2021; Subscribe; 44594; Subscribe; Subscribe
SPE4A621F068Z: 16 Apr 2021; Subscribe; 44594; Subscribe; Subscribe
SPE4A621F068Z: 16 Apr 2021; Subscribe; 44594; Subscribe; Subscribe
SPE5EY18F074E: 20 May 2018; Subscribe; 4979; Subscribe; Subscribe
SPE5EY18F013F: 08 May 2018; Subscribe; 3360; Subscribe; Subscribe
SPE5EY18F013G: 08 May 2018; Subscribe; 9982; Subscribe; Subscribe
SPE5EY18F004U: 02 May 2018; Subscribe; 101199; Subscribe; Subscribe
SPE5EY18F004T: 02 May 2018; Subscribe; 90446; Subscribe; Subscribe
SPE5EY18F2596: 05 Dec 2017; Subscribe; 38661; Subscribe; Subscribe
SPE5EY18F2595: 05 Dec 2017; Subscribe; 9398; Subscribe; Subscribe
SPM5EY13D05421088: 10 Aug 2017; Subscribe; 6624; Subscribe; Subscribe
SPM5EY13D05421087: 10 Aug 2017; Subscribe; 2339; Subscribe; Subscribe
SPM5EY13D05421089: 10 Aug 2017; Subscribe; 32916; Subscribe; Subscribe
SPM5EY13D05420846: 08 Dec 2016; Subscribe; 40967; Subscribe; Subscribe
SPM5EY13D05420752: 26 Aug 2016; Subscribe; 6380; Subscribe; Subscribe
SPM5EY13D05420753: 26 Aug 2016; Subscribe; 47204; Subscribe; Subscribe
SPM5EY13D05420705: 20 Jun 2016; Subscribe; 41592; Subscribe; Subscribe
SPM5EY13D05420703: 15 Jun 2016; Subscribe; 1973; Subscribe; Subscribe
SPM5EY13D05420704: 15 Jun 2016; Subscribe; 4403; Subscribe; Subscribe
SPM5EY13D05420637: 22 Apr 2016; Subscribe; 2048; Subscribe; Subscribe
SPM5EY13D05420638: 22 Apr 2016; Subscribe; 36555; Subscribe; Subscribe
SPM5EY13D05420452: 29 Jul 2015; Subscribe; 56005; Subscribe; Subscribe
SPM5EY13D05420451: 29 Jul 2015; Subscribe; 3197; Subscribe; Subscribe
SPM5EY13D05420369: 01 Jun 2015; Subscribe; 26999; Subscribe; Subscribe
SPM5EY13D05420371: 27 May 2015; Subscribe; 50008; Subscribe; Subscribe
SPM5EY13D05420370: 27 May 2015; Subscribe; 31884; Subscribe; Subscribe
SPM5EY13D05420368: 27 May 2015; Subscribe; 5232; Subscribe; Subscribe
SPM5EY13D05420309: 20 Apr 2015; Subscribe; 39680; Subscribe; Subscribe
SPM5EY13D05420308: 20 Apr 2015; Subscribe; 481; Subscribe; Subscribe
SPM5EY13D05420187: 11 Dec 2014; Subscribe; 410; Subscribe; Subscribe
SPM5EY13D05420188: 11 Dec 2014; Subscribe; 38874; Subscribe; Subscribe
SPM5EY13D05420044: 06 Feb 2014; Subscribe; 54744; Subscribe; Subscribe
SPM5EY13D05420043: 06 Feb 2014; Subscribe; 1164; Subscribe; Subscribe
SPM5E913MQ246: 12 Jun 2013; Subscribe; 177944; Subscribe; Subscribe

Contracting Technical Data File (CTDF) 5320-01-085-3321 April 2020

Criticality and Quality

Critical Item Code:: X
Flight Safety:
Life Support:
Certified Samples:
Serialization:
First Article Test (FAT):
Certificate of Quality Compliance:
Production Lot Testing:
Special Testing:
Qualified Products List (QPL):

Commercial Properties

Government Furnished Material:
Government Furnished Tooling:
Government Furnished Property:
Price Evaluation Code:
Diminshing Manufacturing Sources:
Warranty:
Commerical Off The Shelf (COTS):
End Item Application:
Auctioning Candidate:
Source of Procurement:
Contract Option:

Restrictions

Boeing Rights Guard:
Export Controlled:
Controlled Technical Data Package (TDP):
Restricted Technical Data Package (TDP):
Contains Classified Material
Weapons System Indicator Code (WSIC):: F

Packaging Requirements

Packaging Determination Table:
Packaging Review Code:
Special Packaging Instruction Number (SPIN):
Special Packaging Instruction Number Revision:
Special Packaging Instruction Number Date:
Pallet Reference Number Required:

Subscribe
View CTDF

Subscribe to View CTDF Details...

Marketplace 5320-01-085-3321

Related Documents 5320-01-085-3321 5+ Documents (More...)

Restrictions 5320-01-085-3321

Import and Export 5320-01-085-3321

End Users 5320-01-085-3321

Approved Sources 5320-01-085-3321

Datasheet 5320-01-085-3321

Weapon Systems (WSDC) 5320-01-085-3321

DLA Procurement Analysis 5320-01-085-3321

Management Data 5320-01-085-3321

Army

Air Force

Navy

Marine Corps

NATO Stock Numbers Related to 5320-01-085-3321

Freight Information 5320-01-085-3321

Packaging Data 5320-01-085-3321

Item Pack Level (Unpackaged)

Unit Pack Level (Packaged)

Intermediate Pack Level

Procurement History 5320-01-085-3321 Most Recent 54 Records

Contracting Technical Data File (CTDF) 5320-01-085-3321 April 2020

Criticality and Quality

Commercial Properties

Restrictions

Packaging Requirements
