5320-01-084-6089

Blind Rivet

5320010846089 010846089 NAS9302BNS-5-04 CR3212-5-4 HC3212-5-4 AF3212-5-04 HC3212-5-04 AF3212-5-4 M7885/3-5-4 MIL-R-7885/3 M7885/3-5-04 10124027 5320PL0839937

An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY. View more Blind Rivet

Managed by United States

NSN Created on 23 Oct 1979

Data Last Changed
November 2023

NATO Update Count
64

NATO Data Quality

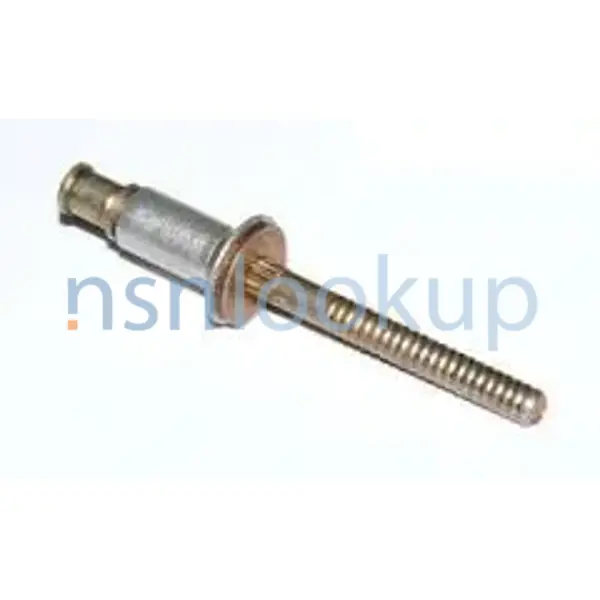

5320-01-084-6089 RIVET,BLIND 5320010846089 010846089 1/3 — 5320-01-084-6089 Photo 1/3

AASK Style C9 for 5320-01-084-6089 2/3 — NSN 5320-01-084-6089 (Identification) 2/3

AAZF Style D32 for 5320-01-084-6089 3/3 — NSN 5320-01-084-6089 (Identification) 3/3

Marketplace 5320-01-084-6089

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

MIL-R-7885/3 RIVET,BLIND 57 EA NS

Subscribe to View Vendor Details...

CR3212-5-4 RIVET,BLIND 30 EA NS

Subscribe to View Vendor Details...

CR3212-5-4 RIVET,BLIND 99 EA NS

Subscribe to View Vendor Details...

CR3212-5-4 RIVET,BLIND 1977 EA NS

Subscribe to View Vendor Details...

CR3212-5-4 RIVET,BLIND 68 EA NS

Subscribe to View Vendor Details...

MIL-R7885/3 RIVET,BLIND 66 EA NS

CR3212-5-4 RIVET,BLIND 320 EA NS

Subscribe to View Vendor Details...

M78853-5-04 RIVET,BLIND 600 EA NS

Subscribe to View Vendor Details...

M78853-5-04 RIVET,BLIND 4528 EA NS

Subscribe to View Vendor Details...

CR3212-5-4 RIVET 142 EA NS

M7885/3-5-04 RIVET 91 EA NS

NAS9302BNS-5-04 RIVET BLIND 100 EA NS

Subscribe to View Vendor Details...

CR3212-5-04 RIVET,BLIND 2075 EA NS

M7885/3-5-04 RIVET,BLIND 2025 EA NS

Subscribe to View Vendor Details...

CR3212-5-4 RIVET,BLIND 180 EA NS

Subscribe to View Vendor Details...

M78853-5-04 RIVET,BLIND 800 EA NS

Updated Every Day

5320-01-084-6089 RQST NE

Updated Every Day

5320-01-084-6089 RQST

Updated Every Day

5320-01-084-6089 RQST NE

Restrictions 5320-01-084-6089

5320-01-084-6089 is a Blind Rivet that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.

Import and Export 5320-01-084-6089

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 5320-01-084-6089

US Army (A919)
Effective Date:: 1 Apr 2006
Former MOE Rule:: A187
Supplementary Receivers:: BFCTCL; AMC 1 AMSC G IMC Z IMCACTY CT

US Coast Guard (C918)
Effective Date:: 1 Apr 2006
Former MOE Rule:: C004
Supplementary Receivers:: XH; AMC 1 AMSC G

US Air Force (FXGI)
Effective Date:: 1 Apr 2006
Former MOE Rule:: FXKZ; AMC 1 AMSC G IMC Z IMCACTY SX

NASA (G860)
Effective Date:: 1 Apr 1997; AMC 0 AMSC 0 AAC C

US Marine Corps (MC47)
Effective Date:: 1 Apr 2011; AMC 1 AMSC G IMC Z IMCACTY PA

US Navy (N9BZ)
Effective Date:: 1 Apr 2006
Former MOE Rule:: N9ZD
Supplementary Collaborators:: GTKEHD; AMC 1 AMSC G IMC Z IMCACTY HD

Finland (WF01)
Effective Date:: 1 Apr 2011

Poland (WP01)
Effective Date:: 1 Dec 2003

Brazil (YA01)
Effective Date:: 1 Oct 2000

Spain (YB01)
Effective Date:: 1 Apr 1991

Columbia (YC01)
Effective Date:: 1 Jun 2015

Singapore (YJ01)
Effective Date:: 1 Apr 1991

Malaysia (YW01)
Effective Date:: 1 Mar 2002

Australia (ZA01)
Effective Date:: 1 Apr 1991

Belgium (ZB01)
Effective Date:: 1 Apr 1997

Canada (ZC01)
Effective Date:: 1 Apr 1991

New Zealand (ZE01)
Effective Date:: 1 Apr 1991

France (ZF01)
Effective Date:: 1 Apr 1991

Germany (ZG01)
Effective Date:: 1 Apr 1991

Republic of Korea (ZH01)
Effective Date:: 1 Apr 1991

United Kingdom (ZK01)
Effective Date:: 1 Apr 1991

Philippines (ZM01)
Effective Date:: 1 Feb 2015

Netherlands (ZN01)
Effective Date:: 1 Aug 1995

Portugal (ZP01)
Effective Date:: 1 Aug 1997

Italy (ZR01)
Effective Date:: 1 Jan 2001

Denmark (ZS01)
Effective Date:: 1 Apr 1991

Norway (ZT01)
Effective Date:: 1 Apr 1991

Greece (ZU01)
Effective Date:: 1 May 2008

Turkey (ZW01)
Effective Date:: 1 Sep 2001

NATO Maintenance and Supply Agency (ZX01)
Effective Date:: 1 Sep 2004

Approved Sources 5320-01-084-6089

Part Number
Manufacturer
Status
NAS9302BNS-5-04: 80205 - National Aerospace Standards (Active); Primary Buy; RNCC 3 RNVC 2 DAC E
CR3212-5-4: A0311 - Tecno Trade S.R.L. (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
CR3212-5-4: C4293 - Fairchild Fasteners Europe - Vsd (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 3
HC3212-5-4: 17446 - Huck International, Inc (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 4
CR3212-5-4: 06950 - Howmet Global Fastening Systems Inc (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
AF3212-5-04: 53551 - Allfast Fastening Systems, Llc (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
HC3212-5-04: 0HDW7 - Huck International, Inc. (Active); Secondary Buy; RNCC 5 RNVC 2 DAC A
CR3212-5-4: 11815 - Sps Technologies, Llc (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 1
AF3212-5-4: 53551 - Allfast Fastening Systems, Llc (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC E
CR3212-5-4: 92215 - Howmet Global Fastening Systems Inc (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
M7885/3-5-4: 81349 - Military Specifications (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
MIL-R-7885/3: 81349 - Military Specifications (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC E
CR3212-5-4: F7652 - Klx Aerospace Solutions Ii Sas (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
M7885/3-5-04: 81349 - Military Specifications (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC E
10124027: A486G - Nimikkeistokeskus Ncb Finland (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
5320PL0839937: 9009H - Jednolity Indeks Materialowy - (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
CR3212-5-4: FB009 - Boeing Distribution Services Inc (Active); Advisory Reference; RNCC C RNVC 1 DAC 4

Datasheet 5320-01-084-6089

Characteristic
Specifications
FIIG: A040A0
Countersink Angle [CRSQ]: 99.0 Degrees Minimum And 101.0 Degrees Maximum
Expansion Device [ABAF]: Serrated Stem-Type W
Fastener Length [AASB]: 0.345 Inches Minimum And 0.365 Inches Maximum
Grip Length [ANEE]: 0.188 Inches Minimum And 0.250 Inches Maximum
Head Major Diameter [AAZG]: 0.290 Inches Maximum
Head Style [AASK]: Flush (Flat) Countersunk (Included Angle - Less Than 135 Deg W Or W/O Chamfer)
Material Document And Classification [MDCL]: Qq-A-430 Fed Spec Single Material Response Sleeve
Material [MATT]: Aluminum Alloy 5056 Sleeve
Material [MATT]: Steel Comp 8740 Stem
Material Document And Classification [MDCL]: Ams 6322 Assn Std Single Material Response Stem
Shank Diameter [AAZE]: 0.156 Inches Minimum And 0.160 Inches Maximum
Shank Style [AAZF]: Self-Plugging Mechanically Locked Stem
Special Features [FEAT]: Ns" Letters After The Material Code "B" Indicate No Preference To Lock Type (May Be Visible Or Internal). Rivets With No Letter Code (Indicating Visible Lock Type) And Rivets With The Letter "H" After The Material Code (Indicating Internal Lock Type) Are Both Acceptable For This Item Of Supply.
Surface Treatment Document And Classification [STDC]: Mil-C-5541 Mil Spec Single Treatment Response Sleeve
Surface Treatment Document And Classification [STDC]: Qq-P-416,Type 2,Class 2 Fed Spec All Treatment Responses Stem
Surface Treatment [SFTT]: Cadmium Stem And Chromate Stem
