5320-01-079-5203

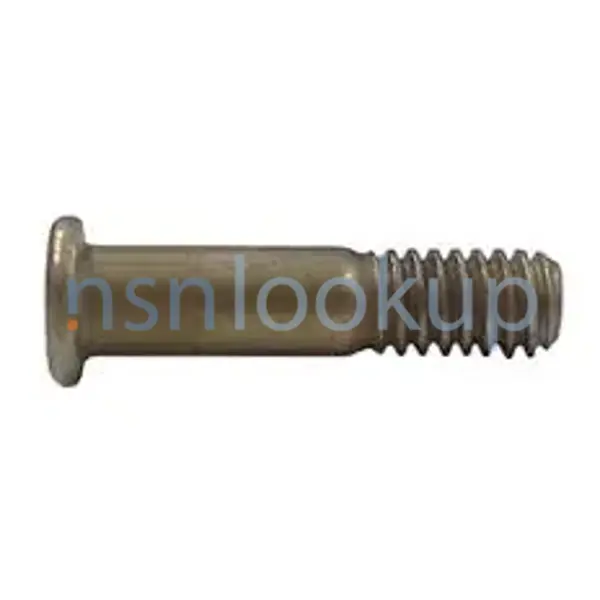

Pin-Rivet
5320010795203 010795203 HL328-6-4
A metallic or nonmetallic item, headed at one end, with a cylindrically shaped shank which may be tapered, grooved, or threaded. A locking collar or sleeve may be provided to perform the same holding action as the clinching portion of a conventional rivet. The shank may include an external wrenching facility which breaks off at a predetermined applied torque. View more Pin-Rivet
June 2023
13
Marketplace 5320-01-079-5203
Request a Quotation from participating marketplace vendors
Related Documents 5320-01-079-5203 5+ Documents (More...)
HL328-6-4 PIN-RIVET 2 EA NS Request Quotation Subscribe to View Vendor Details...
HL328-6-4 PIN-RIVET 328 EA NS Request Quotation Updated Every Day 5320-01-079-5203 RQST NE Updated Every
Restrictions 5320-01-079-5203
5320-01-079-5203 is a Pin-Rivet that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5320-01-079-5203
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5320-01-079-5203
- US Air Force (FGGI)
- Effective Date:
- 1 Jul 2007
- US Navy (N9BZ)
- Effective Date:
- 1 Mar 2006
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- KE
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Aug 2010
- Republic of Korea (ZH01)
- Effective Date:
- 1 Jun 2000
Approved Sources 5320-01-079-5203
- Part Number
- Manufacturer
- Status
- HL328-6-4
- Manufacturer
- 56878 - Sps Technologies, Llc (Active)
- Primary Buy
- Primary Buy
- HL328-6-4
- 73197 - Hi-Shear Corporation (Active)
- Primary Buy
- Primary Buy
- HL328-6-4
- 92215 - Howmet Global Fastening Systems Inc (Active)
- Primary Buy
- Primary Buy
- HL328-6-4
- L4528 - Lisi Aerospace Canada Corp (Active)
- Primary Buy
- Primary Buy
- HL328-6-4
- 17446 - Huck International, Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- HL328-6-4
- 97928 - Huck Intl Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5320-01-079-5203
- Characteristic
- Specifications
- FIIG
- Specifications
- A528U0
- Fastener Length [AASB]
- 0.565 Inches Minimum And 0.585 Inches Maximum
- Grip Length [ANEE]
- 0.255 Inches Maximum
- Head Height [AASU]
- 0.045 Inches Minimum And 0.055 Inches Maximum
- Head Major Diameter [AAZG]
- 0.295 Inches Minimum And 0.315 Inches Maximum
- Head Style [AASK]
- Err-090
- Material Document And Classification [MDCL]
- Mil-S-5000 Mil Spec 1St Material Response Overall Or Mil-S-5626 Mil Spec 2Nd Material Response Overall Or Mil-S-6049 Mil Spec 3Rd Material Response Overall
- Material [MATT]
- Steel Comp E4340 Overall Or Steel Comp 4140 Overall Or Steel Comp 8740 Overall
- Minimum Tensile Strength [CQBC]
- 180000 Pounds Per Square Inch
- Nominal Thread Size [CQJX]
- 0.190 Inches
- Lubrication [ABAJ]
- Cetyl Alcohol, Spec 305, Hi-Shear Corp
- Shank Diameter [AAZE]
- 0.1880 Inches Minimum And 0.1895 Inches Maximum
- Shank Style [AAZF]
- Pin-Rivet, Straight, Threaded
- Shear Strength [CQSX]
- 108000 Single Pounds Per Square Inch
- Width Between Flats [AATB]
- 0.0791 Inches Minimum And 0.0806 Inches Maximum
- Surface Treatment Document And Classification [STDC]
- Qq-P-416,Type 2,Class 3 Fed Spec All Treatment Responses Overall
- Surface Treatment [SFTT]
- Cadmium Overall And Chromate Overall
- Thread Class [AAJD]
- 3A
- Thread Direction [AAJF]
- Right-Hand
- Thread Series Designator [THSD]
- Unjf
- Thread Quantity Per Inch [CMLP]
- 32
