5320-01-043-0676

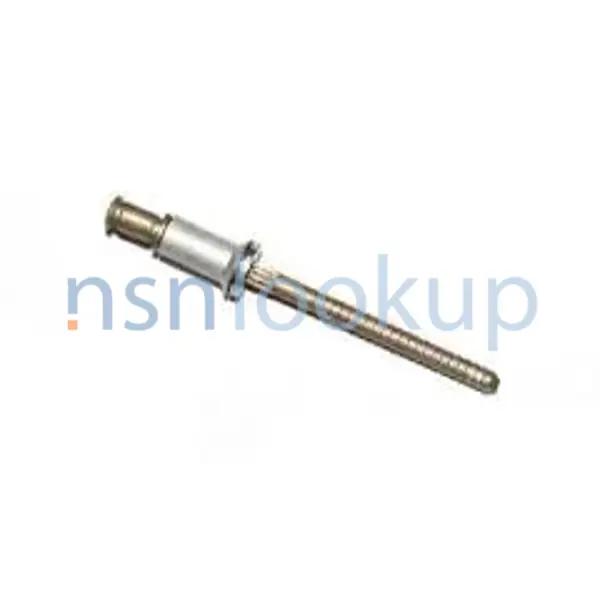

Blind Rivet
5320010430676 010430676 C43552-4-4 NAS9311M-4-04 HR3552-4-04 AF3552-4-04 CR3552-4-4 MIL-R-7885/9 AF3552-4-4 M7885/9-4-04
An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY. View more Blind Rivet
Managed by United States
NSN Created on 19 Jun 1977
Data Last Changed
November 2023
November 2023
NATO Update Count
53
53
NATO Data Quality
Marketplace 5320-01-043-0676
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 5320-01-043-0676 5+ Documents (More...)
C43552-4-4 NAS9311M-4-04 HR3552-4-04 AF3552-4-04 CR3552-4-4 MIL-R-7885/9 AF3552-4-4 M7885/9-4-04 An
MIL-R-7885/9 RIVET,BLIND 103 HD NS Request Quotation Subscribe to View Vendor Details... 5320-01-043-
Every Day 5320-01-043-0676 RQST NE Updated Every Day 5320-01-043-0676 RQST Updated Every Day 5320-01
MIL-R-7885/9 RIVET,BLIND 103 HD NS Request Quotation Subscribe to View Vendor Details... 5320-01-043-
Every Day 5320-01-043-0676 RQST NE Updated Every Day 5320-01-043-0676 RQST Updated Every Day 5320-01
MIL-R-7885/9 RIVET,BLIND 103 HD NS Request Quotation Updated Every Day 5320-01-043-1932 RQST NE Updated
MIL-R-7885/9 RIVET,BLIND 103 HD NS Request Quotation Subscribe to View Vendor Details...
MIL-R-7885/9 RIVET,BLIND 103 HD NS Request Quotation Subscribe to View Vendor Details... 5320-01-043-
MIL-R-7885/9 RIVET,BLIND 103 HD NS Request Quotation Subscribe to View Vendor Details...
MIL-R-7885/9 RIVET,BLIND 103 HD NS Request Quotation Subscribe to View Vendor Details... 5320-01-043-
MIL-R-7885/9 RIVET,BLIND 103 HD NS Request Quotation Subscribe to View Vendor Details... 5320-01-043-
MIL-R-7885/9 RIVET,BLIND 103 HD NS Request Quotation Subscribe to View Vendor Details...
MIL-R-7885/9 RIVET,BLIND 103 HD NS Request Quotation Subscribe to View Vendor Details... 5320-01-043-
MIL-R-7885/9 RIVET,BLIND 103 HD NS Request Quotation Subscribe to View Vendor Details...
MIL-R-7885/9 RIVET,BLIND 103 HD NS Request Quotation Subscribe to View Vendor Details... 5320-01-043-
MIL-R-7885/9 RIVET,BLIND 103 HD NS Request Quotation Subscribe to View Vendor Details...
MIL-R-7885/9 RIVET,BLIND 103 HD NS Request Quotation Subscribe to View Vendor Details...
MIL-R-7885/9 RIVET,BLIND 103 HD NS Request Quotation Subscribe to View Vendor Details... 5320-01-043-
MIL-R-7885/9 RIVET,BLIND 103 HD NS Request Quotation Subscribe to View Vendor Details...
MIL-R-7885/9 RIVET,BLIND 103 HD NS Request Quotation Subscribe to View Vendor Details... 5320-01-043-
MIL-R-7885/9 RIVET,BLIND 103 HD NS Request Quotation Updated Every Day 5320-01-043-1925 RQST NE Updated
MIL-R-7885/9 RIVET,BLIND 103 HD NS Request Quotation Subscribe to View Vendor Details...
MIL-R-7885/9 RIVET,BLIND 103 HD NS Request Quotation Subscribe to View Vendor Details... 5320-01-043-
MIL-R-7885/9 RIVET,BLIND 103 HD NS Request Quotation Subscribe to View Vendor Details...
MIL-R-7885/9 RIVET,BLIND 103 HD NS Request Quotation Subscribe to View Vendor Details... 5320-01-043-
Restrictions 5320-01-043-0676
5320-01-043-0676 is a Blind Rivet that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5320-01-043-0676
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5320-01-043-0676
- US Army (A919)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- A187
- Supplementary Receivers:
- CT
- US Coast Guard (C918)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- C004
- Supplementary Receivers:
- XH
- US Air Force (FXGI)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXKZ
- US Navy (N9BZ)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- GTKE
- Slovenia (WL01)
- Effective Date:
- 1 May 2007
- Poland (WP01)
- Effective Date:
- 1 Dec 2006
- Brazil (YA01)
- Effective Date:
- 1 Oct 2001
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Columbia (YC01)
- Effective Date:
- 1 Jun 2015
- Israel (YD01)
- Effective Date:
- 1 Oct 2016
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Belgium (ZB01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Aug 2009
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- France (ZF01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- United Kingdom (ZK01)
- Effective Date:
- 1 Nov 1993
- Portugal (ZP01)
- Effective Date:
- 1 Apr 2008
- Italy (ZR01)
- Effective Date:
- 1 Jan 2001
- Denmark (ZS01)
- Effective Date:
- 1 Apr 2017
- Norway (ZT01)
- Effective Date:
- 1 Nov 2011
- Greece (ZU01)
- Effective Date:
- 1 Apr 2008
- Turkey (ZW01)
- Effective Date:
- 1 Dec 2005
- NATO Maintenance and Supply Agency (ZX01)
- Effective Date:
- 1 Jul 2016
Approved Sources 5320-01-043-0676
- Part Number
- Manufacturer
- Status
- NAS9311M-4-04
- Manufacturer
- 80205 - National Aerospace Standards (Active)
- Primary Buy
- Primary Buy
- HR3552-4-04
- 0HDW7 - Huck International, Inc. (Active)
- Secondary Buy
- Secondary Buy
- CR3552-4-4
- 11815 - Sps Technologies, Llc (Active)
- Secondary Buy
- Secondary Buy
- CR3552-4-4
- C4293 - Fairchild Fasteners Europe - Vsd (Active)
- Secondary Buy
- Secondary Buy
- CR3552-4-4
- 06950 - Howmet Global Fastening Systems Inc (Active)
- Secondary Buy
- Secondary Buy
- AF3552-4-04
- 53551 - Allfast Fastening Systems, Llc (Active)
- Secondary Buy
- Secondary Buy
- CR3552-4-4
- F7652 - Klx Aerospace Solutions Ii Sas (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- CR3552-4-4
- 92215 - Howmet Global Fastening Systems Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- MIL-R-7885/9
- 81349 - Military Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- AF3552-4-4
- 53551 - Allfast Fastening Systems, Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- M7885/9-4-04
- 81349 - Military Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- C43552-4-4
- 11815 - Sps Technologies, Llc (Active)
- Advisory Reference
- Advisory Reference
- CR3552-4-4
- FB009 - Boeing Distribution Services Inc (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5320-01-043-0676
- Characteristic
- Specifications
- FIIG
- Specifications
- A040A0
- Countersink Angle [CRSQ]
- 98.5 Degrees Minimum And 101.5 Degrees Maximum
- Expansion Device [ABAF]
- Serrated Stem-Type W
- Fastener Length [AASB]
- 0.333 Inches Minimum And 0.363 Inches Maximum
- Grip Length [ANEE]
- 0.188 Inches Minimum And 0.250 Inches Maximum
- Head Major Diameter [AAZG]
- 0.221 Inches Minimum And 0.229 Inches Maximum
- Head Style [AASK]
- Flush (Flat) Countersunk (Included Angle - Less Than 135 Deg W Or W/O Chamfer)
- Material Document And Classification [MDCL]
- Qq-N-281 Fed Spec All Material Responses Sleeve
- Material [MATT]
- Nickel Alloy R-405 Or Nickel Alloy 400 Sleeve
- Material [MATT]
- Steel Comp 632 Stem
- Nondefinitive Spec/Std Data [ZZZT]
- 1 Type And B Style And 2 Class
- Material Document And Classification [MDCL]
- Ams 5657 Assn Std Single Material Response Stem
- Shank Diameter [AAZE]
- 0.139 Inches Minimum And 0.143 Inches Maximum
- Shank Style [AAZF]
- Self-Plugging Mechanically Locked Stem
- Specification/Standard Data [ZZZK]
- 81349-Mil-R-7885/9 Government Specification
Weapon Systems (WSDC) 5320-01-043-0676
DLA Procurement Analysis 5320-01-043-0676
- Last Stock Position:
- 79500 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5320-01-043-0676
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- SX
- SICA RESIDUAL MMAC-OC-ALC
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5320-01-043-0676
Freight Information 5320-01-043-0676
5320-01-043-0676 has freight characteristics managed by the Southwestern Power Administration.It has a National Motor Freight Classification (NMFC) of 106510. A Sub NMFC of X. It has a NMFC Description of RIVETS I/S PLAIN/GALVANIZED ETC. 5320-01-043-0676 is rated as class 50 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 54760 which rates the freight between FCL and LCL. 5320-01-043-0676 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 5320-01-043-0676 is not classified as a special type of cargo when transported by water. 5320-01-043-0676 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5320-01-043-0676
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- --
- --
- Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Procurement History 5320-01-043-0676 11 Records
- Contract
- Date
- CAGE
- Quantity
- Net Price
- Std Price
- CAGE
- SPE4A622V1117
- 14 Oct 2021
- Subscribe
- 254
- Subscribe
- Subscribe
- Subscribe
- SPE5EY18F285T
- 02 Aug 2018
- Subscribe
- 109
- Subscribe
- Subscribe
- Subscribe
- SPE5EY18F210Q
- 27 Jun 2018
- Subscribe
- 107
- Subscribe
- Subscribe
- Subscribe
- SPE5EY18F141K
- 10 Jun 2018
- Subscribe
- 42
- Subscribe
- Subscribe
- Subscribe
- SPE5EY18F139W
- 08 Jun 2018
- Subscribe
- 59
- Subscribe
- Subscribe
- Subscribe
- SPE5EY18F106N
- 03 Jun 2018
- Subscribe
- 78
- Subscribe
- Subscribe
- Subscribe
- SPE5EY18F092L
- 30 May 2018
- Subscribe
- 46
- Subscribe
- Subscribe
- Subscribe
- SPE5EY18F078D
- 23 May 2018
- Subscribe
- 39
- Subscribe
- Subscribe
- Subscribe
- SPE5EY18F074V
- 20 May 2018
- Subscribe
- 35
- Subscribe
- Subscribe
- Subscribe
- SPE5EY18F011M
- 08 May 2018
- Subscribe
- 34
- Subscribe
- Subscribe
- Subscribe
- SPM5EY13D05420943
- 06 Mar 2017
- Subscribe
- 70
- Subscribe
- Subscribe
- Subscribe
Contracting Technical Data File (CTDF) 5320-01-043-0676 August 2020
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
