5320-01-034-1884

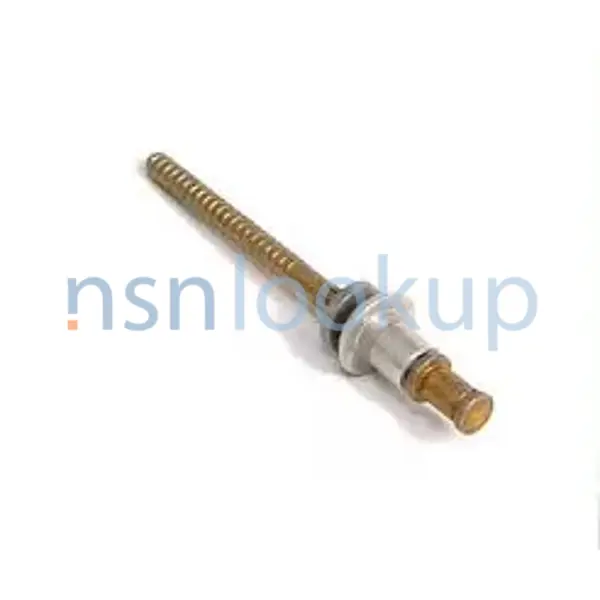

Blind Rivet
5320010341884 010341884 NAS9304BNS-6-05 CR3243-6-5 AF3243-6-5 CR3243-6-05 M7885/6-6-05 HC3243-6-5 MIL-R-7885/6 HR3243-6-05 HC3243-6-05 10123971 5320PL0817987
An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY. View more Blind Rivet
Managed by United States
NSN Created on 20 Jan 1977
Data Last Changed
November 2023
November 2023
NATO Update Count
62
62
NATO Data Quality
Marketplace 5320-01-034-1884
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
NAS9304BNS-6-05 RIVET,BLIND 150 HD NS
HC3243-6-5 RIVET,BLIND 150 HD NS
M7885/6-6-05 RIVET,BLIND 150 HD NS
CR3243-6-5 RIVET,BLIND 150 HD NS
Updated Every Day 5320-01-034-1884 RQST NE
Updated Every Day 5320-01-034-1884 RQST
Updated Every Day 5320-01-034-1884 RQST NE
Related Documents 5320-01-034-1884 3+ Documents (More...)
NAS9304BNS-6-05 CR3243-6-5 AF3243-6-5 CR3243-6-05 M7885/6-6-05 HC3243-6-5 MIL-R-7885/6 HR3243-6-05 HC3243
-6-05 10123971 5320PL0817987 An item consisting of two or more of the following components: stem, rivet
NAS9304BNS-6-05 RIVET,BLIND 100 HD NS Request Quotation CR3243-6-5 RIVET,BLIND 100 HD NS Request Quotation
-6-05 10123971 5320PL0817987 An item consisting of two or more of the following components: stem, rivet
NAS9304BNS-6-05 RIVET,BLIND 100 HD NS Request Quotation CR3243-6-5 RIVET,BLIND 100 HD NS Request Quotation
CR3243-6-5 RIVET,BLIND 7 HD NS Request Quotation Subscribe to View Vendor Details...
CR3243-6-5 RIVET,BLIND 100 HD NS Request Quotation Subscribe to View Vendor Details...
CR3243-6-5 RIVET,BLIND 99 HD NS Request Quotation Subscribe to View Vendor Details...
CR3243-6-5 RIVET,BLIND 100 HD NS Request Quotation Subscribe to View Vendor Details...
CR3243-6-5 RIVET,BLIND 99 HD NS Request Quotation Subscribe to View Vendor Details...
CR3243-6-5 RIVET,BLIND 7 HD NS Request Quotation Subscribe to View Vendor Details...
CR3243-6-5 RIVET,BLIND 100 HD NS Request Quotation Subscribe to View Vendor Details...
CR3243-6-5 RIVET,BLIND 99 HD NS Request Quotation Subscribe to View Vendor Details...
CR3243-6-5 RIVET,BLIND 100 HD NS Request Quotation Subscribe to View Vendor Details...
CR3243-6-5 RIVET,BLIND 99 HD NS Request Quotation Subscribe to View Vendor Details...
Restrictions 5320-01-034-1884
5320-01-034-1884 is a Blind Rivet that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5320-01-034-1884
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5320-01-034-1884
- US Army (A919)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- A187
- Supplementary Receivers:
- AZCT
- US Coast Guard (C918)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- C004
- US Air Force (FXGI)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXKZ
- NASA (G880)
- Effective Date:
- 1 Apr 1991
- US Marine Corps (MC47)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- MC10
- US Navy (N9BZ)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- NIZD
- Supplementary Collaborators:
- GTKE
- Finland (WF01)
- Effective Date:
- 1 Apr 2011
- Slovenia (WL01)
- Effective Date:
- 1 Dec 2013
- Poland (WP01)
- Effective Date:
- 1 Dec 2006
- Czech Republic (WZ01)
- Effective Date:
- 1 Nov 2011
- Brazil (YA01)
- Effective Date:
- 1 Oct 2000
- Spain (YB01)
- Effective Date:
- 1 Feb 1994
- Columbia (YC01)
- Effective Date:
- 1 Jun 2015
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Malaysia (YW01)
- Effective Date:
- 1 Aug 1997
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- France (ZF01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- United Kingdom (ZK01)
- Effective Date:
- 1 Apr 1991
- Netherlands (ZN01)
- Effective Date:
- 1 Sep 1995
- Portugal (ZP01)
- Effective Date:
- 1 Jun 1997
- Italy (ZR01)
- Effective Date:
- 1 Jul 1997
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Aug 1995
- Turkey (ZW01)
- Effective Date:
- 1 Dec 1995
Approved Sources 5320-01-034-1884
- Part Number
- Manufacturer
- Status
- NAS9304BNS-6-05
- Manufacturer
- 80205 - National Aerospace Standards (Active)
- Primary Buy
- Primary Buy
- CR3243-6-5
- C4293 - Fairchild Fasteners Europe - Vsd (Active)
- Secondary Buy
- Secondary Buy
- AF3243-6-5
- 53551 - Allfast Fastening Systems, Llc (Active)
- Secondary Buy
- Secondary Buy
- CR3243-6-05
- 11815 - Sps Technologies, Llc (Active)
- Secondary Buy
- Secondary Buy
- CR3243-6-5
- 11815 - Sps Technologies, Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- M7885/6-6-05
- 81349 - Military Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- HC3243-6-5
- 17446 - Huck International, Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- MIL-R-7885/6
- 81349 - Military Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- CR3243-6-5
- F7652 - Klx Aerospace Solutions Ii Sas (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- CR3243-6-5
- 92215 - Howmet Global Fastening Systems Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- HR3243-6-05
- 0HDW7 - Huck International, Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- HC3243-6-05
- 17446 - Huck International, Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 10123971
- A486G - Nimikkeistokeskus Ncb Finland (Active)
- NATO Reference
- NATO Reference
- 5320PL0817987
- 9009H - Jednolity Indeks Materialowy - (Active)
- NATO Reference
- NATO Reference
- CR3243-6-5
- FB009 - Boeing Distribution Services Inc (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5320-01-034-1884
- Characteristic
- Specifications
- FIIG
- Specifications
- A040A0
- Expansion Device [ABAF]
- Serrated Stem-Type W
- Fastener Length [AASB]
- 0.443 Inches Minimum And 0.463 Inches Maximum
- Grip Length [ANEE]
- 0.251 Inches Minimum And 0.312 Inches Maximum
- Head Height [AASU]
- 0.080 Inches Minimum And 0.090 Inches Maximum
- Head Major Diameter [AAZG]
- 0.356 Inches Minimum And 0.394 Inches Maximum
- Head Style [AASK]
- Universal
- Material Document And Classification [MDCL]
- Qq-A-430 Fed Spec Single Material Response Body
- Material [MATT]
- Aluminum Alloy 5056 Body
- Material [MATT]
- Steel Comp 8740 Stem
- Material Document And Classification [MDCL]
- Ams 6322 Assn Std Single Material Response Stem
- Shank Diameter [AAZE]
- 0.202 Inches Minimum And 0.205 Inches Maximum
- Shank Style [AAZF]
- Self-Plugging Mechanically Locked Stem
- Special Features [FEAT]
- Ns" Letters After The Material Code "B" Indicate No Preference To Lock Type (May Be Visible Or Internal). Rivets With No Letter Code (Indicating Visible Lock Type) And Rivets With The Letter "H" After The Material Code (Indicating Internal Lock Type) Are Both Acceptable For This Item Of Supply.
- Surface Treatment Document And Classification [STDC]
- Mil-C-5541 Mil Spec Single Treatment Response Body
- Surface Treatment Document And Classification [STDC]
- Qq-P-416,Ty 2,Cl 3 Fed Spec Single Treatment Response Stem
- Surface Treatment [SFTT]
- Cadmium Stem
- Surface Treatment [SFTT]
- Chromate Body
Weapon Systems (WSDC) 5320-01-034-1884
DLA Procurement Analysis 5320-01-034-1884
- Last Stock Position:
- 260700 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5320-01-034-1884
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- Department of the Army (DA)
- HD
- Subscribe
- 1
- HD
- Oct 2021
- Department of the Air Force (DF)
- HD
- Subscribe
- 1
- HD
- Aug 2021
- Department of the Air Force (DF)
- HD
- Subscribe
- 1
- HD
- Oct 2020
- US Marine Corps (DM)
- HD
- Subscribe
- 1
- HD
- Oct 2019
- Department of the Air Force (DF)
- HD
- Subscribe
- 1
- HD
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- SX
- SICA RESIDUAL MMAC-OC-ALC
- Price Validation Code:
- V
- The current standard price has been validated.
The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
ZOP or Standard price challenges are permissible but must be supported by adequate justification.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 2
- Non-Critical Repair Part
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
NATO Stock Numbers Related to 5320-01-034-1884
5320-12-379-7694 5320-12-375-6211 5320-34-036-5105 5320-99-737-6610 5320-99-737-6565 5320-99-738-0091 5320-99-737-6557 5320-21-077-0736 5320-99-737-6570 5320-12-351-6287 5320-99-737-7669 5320-99-741-1587 5320-99-471-4420 5320-12-303-0732 5320-99-737-6614 5320-17-706-8543 5320-99-737-7668 5320-12-353-7851
Freight Information 5320-01-034-1884
5320-01-034-1884 has freight characteristics managed by the Southwestern Power Administration.It has a National Motor Freight Classification (NMFC) of 013630. A Sub NMFC of X. It has a NMFC Description of ALUM RIVETS. 5320-01-034-1884 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 05720 which rates the freight between FCL and LCL. 5320-01-034-1884 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5320-01-034-1884 is not classified as a special type of cargo when transported by water. 5320-01-034-1884 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5320-01-034-1884
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- --
- --
- Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Procurement History 5320-01-034-1884 3 Records
Contracting Technical Data File (CTDF) 5320-01-034-1884 August 2020
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
