5320-01-033-9653
Solid Rivet
5320010339653 010339653 704159 704159-3
A headed fastening device having a smooth solid shank designed to have the shank end upset after insertion. View more Solid Rivet
June 2023
5
Marketplace 5320-01-033-9653
Request a Quotation from participating marketplace vendors
Related Documents 5320-01-033-9653 5+ Documents (More...)
) https//www.nsnlookup.com /fsg-53/fsc-5320/us 5320-01-033-9653 Solid Rivet 5320010339653 010339653,704159
Solid Rivet 5320010339653 010339653,704159 704159-3 A headed fastening device having a smooth solid
Solid Rivet 5320010339653 010339653,704159 Upgrade for $1 a day Upgrade your Account Upgrade 5320
-01-033-9653Solid Rivet5320010339653 010339653 704159 704159-3 A headed fastening device having a smooth
to enable JavaScript in your web browser . 1680-14-010-1033Crochet Equipe1680140101033 140101033 704159
your web browser . 4820-99-746-6505Stop-Check Valve4820997466505 997466505 FW276 1074/FW276 H926-704159
/fsg-48/fsc-4820/uk 4820-99-746-6505 Stop-Check Valve 4820997466505997466505 FW2761074/FW276H926-704159
/fsg-48/fsc-4820/uk 4820-99-746-6505 Stop-Check Valve 4820997466505997466505 FW2761074/FW276H926-704159
Upgrade your Account Upgrade 5998-00-116-4644Electronic Components Assembly5998001164644 001164644 704159
6105-00-422-2052 Control Motor 6105004222052 004222052 4820997466505997466505 FW2761074/FW276H926-704159
Restrictions 5320-01-033-9653
5320-01-033-9653 is a Solid Rivet that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5320-01-033-9653
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5320-01-033-9653
- US Air Force (FXGI)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- FXKZ
- US Navy (N9BZ)
- Effective Date:
- 1 Jun 2005
- Supplementary Collaborators:
- KE
Approved Sources 5320-01-033-9653
- Part Number
- Manufacturer
- Status
- 704159-3
- Manufacturer
- 35012 - Ge Aviation Systems Llc (Active)
- Primary Buy
- Primary Buy
- 704159-3
- 058R3 - Ge Aviation Systems Llc (Replaced)
- Original Design
- Original Design
- 704159-3
- 19623 - Ge Aviation Systems Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 704159
- 19623 - Ge Aviation Systems Llc (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5320-01-033-9653
- Characteristic
- Specifications
- FIIG
- Specifications
- A040A0
- Fastener Length [AASB]
- 0.390 Inches Minimum And 0.400 Inches Maximum
- Head Height [AASU]
- 0.040 Inches Minimum And 0.050 Inches Maximum
- Head Major Diameter [AAZG]
- 0.250 Inches Nominal
- Heat Treatment [HEAT]
- T-4 Solution Heat Treated Overall
- Head Style [AASK]
- Flat Fillister
- Material [MATT]
- Aluminum Alloy 2017 Overall
- Shank Diameter [AAZE]
- 0.093 Inches Minimum And 0.097 Inches Maximum

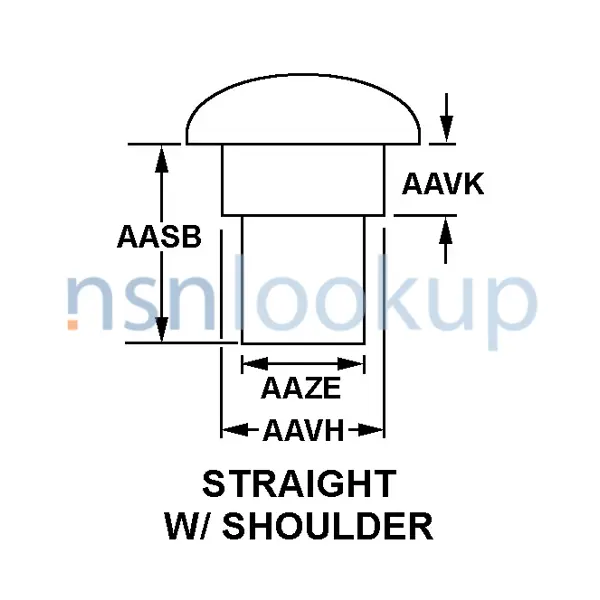

- Shank Style [AAZF]
- Straight W/Shoulder
- Shoulder Diameter [AAVH]
- 0.151 Inches Minimum And 0.156 Inches Maximum
- Shoulder Length [AAVK]
- 0.140 Inches Minimum And 0.145 Inches Maximum
DLA Procurement Analysis 5320-01-033-9653
Management Data 5320-01-033-9653
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5320-01-033-9653
Freight Information 5320-01-033-9653
5320-01-033-9653 has freight characteristics managed by the Southwestern Power Administration.It has a National Motor Freight Classification (NMFC) of 013630. A Sub NMFC of X. It has a NMFC Description of ALUM RIVETS. 5320-01-033-9653 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 05720 which rates the freight between FCL and LCL. 5320-01-033-9653 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5320-01-033-9653 is not classified as a special type of cargo when transported by water. 5320-01-033-9653 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5320-01-033-9653
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- --
- --
- Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Contracting Technical Data File (CTDF) 5320-01-033-9653 August 2020
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
