5320-01-033-9128

Blind Rivet

5320010339128 010339128 719811-4 CR3243-4-4 NAS9304BNS-4-04 HC3243-4-04 HC3243-4-4 AF3243-4-04 BACR15FR4B4 OHCP-B04-04 M2133743 MIL-R-7885/6 AF3243-4-4 HR3243-4-04 M7885/6-4-04 10431317 5320PL1526687

An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY. View more Blind Rivet

Managed by United States

NSN Created on 14 Jan 1977

Data Last Changed
November 2023

NATO Update Count
77

NATO Data Quality

5320-01-033-9128 RIVET,BLIND 5320010339128 010339128 1/3 — 5320-01-033-9128 Photo 1/3

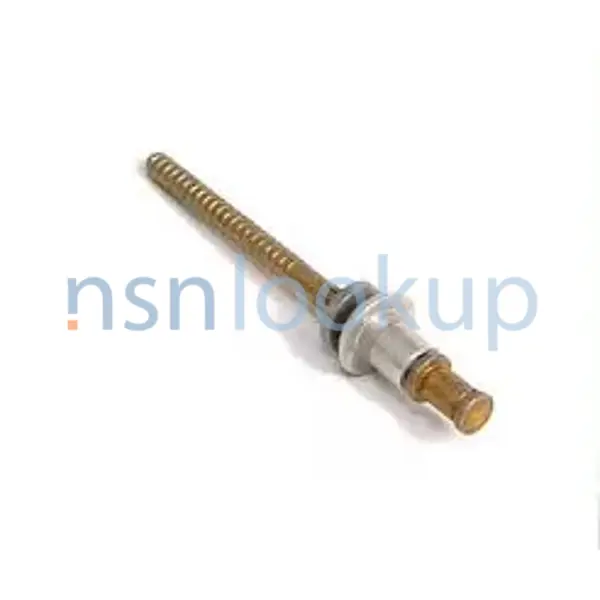

AASK Style C28 for 5320-01-033-9128 2/3 — NSN 5320-01-033-9128 (Identification) 2/3

AAZF Style D32 for 5320-01-033-9128 3/3 — NSN 5320-01-033-9128 (Identification) 3/3

Marketplace 5320-01-033-9128

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

5320-01-033-9128 RIVET,BLIND 600 HD NS

Subscribe to View Vendor Details...

CR3243-4-04 RIVET,BLIND 700 HD NS

Subscribe to View Vendor Details...

NAS9304BNS-4-04 RIVET,BLIND 100 HD NS

CR3243-4-4 RIVET,BLIND 69 HD NS

AF3243-4-04 RIVET,BLIND 3600 HD NS

M7885/6-4-04 RIVET,BLIND 100 HD NS

CR3243-4-04 RIVET,BLIND 10000 HD NS

Subscribe to View Vendor Details...

CR3243-4-4 RIVET,BLIND 710 HD NS

Subscribe to View Vendor Details...

CR3243-4-4 RIVET,BLIND 2892 HD NS

Subscribe to View Vendor Details...

CR3243-4-4 RIVET,BLIND 309 HD NS

Subscribe to View Vendor Details...

CR3243-4-4 RIVET,BLIND 400 HD NS

M78856-4-04 RIVET,BLIND 100 HD NS

Subscribe to View Vendor Details...

NAS9304BNS-4-04 RIVET,BLIND 100 HD NS

Subscribe to View Vendor Details...

CR3243-4-04 RIVET,BLIND 700 HD NS

Subscribe to View Vendor Details...

CR3243-4-4 RIVET 127 HD NS

NAS9304BNS-4-04 RIVET 73 HD NS

NAS9304BNS-4-04 RIVET 100 HD NS

NAS9304BNS-4-04 RIVET 898 HD NS

Subscribe to View Vendor Details...

M7885-6-4-04 RIVET,BLIND 234 HD NS

Subscribe to View Vendor Details...

NAS9304BNS-4-04 RIVET,BLIND 502 HD NS

Subscribe to View Vendor Details...

CR3243-4-04 RIVET,BLIND 491 HD NS

M7885/6-4-04 RIVET,BLIND 491 HD NS

Subscribe to View Vendor Details...

MIL-R-78856 RIVET,BLIND 6 HD NS

Subscribe to View Vendor Details...

AF3243-4-04 RIVET,BLIND 600 HD NS

Updated Every Day

5320-01-033-9128 RQST NE

Updated Every Day

5320-01-033-9128 RQST

Updated Every Day

5320-01-033-9128 RQST NE

Restrictions 5320-01-033-9128

5320-01-033-9128 is a Blind Rivet that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.

Import and Export 5320-01-033-9128

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 5320-01-033-9128

US Army (A919)
Effective Date:: 1 Apr 2006
Former MOE Rule:: A187
Supplementary Receivers:: BDCTBF; AMC 1 AMSC G IMC Z IMCACTY CT

US Coast Guard (C918)
Effective Date:: 1 Apr 2006
Former MOE Rule:: C004; AMC 1 AMSC G

National Security Agency (DGXK)
Effective Date:: 1 Apr 2006
Former MOE Rule:: DKZ2; AMC 1 AMSC G

US Air Force (FXGI)
Effective Date:: 1 Apr 2006
Former MOE Rule:: FXKZ; AMC 1 AMSC G IMC Z IMCACTY SX

NASA (G880)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 AAC C

US Marine Corps (MC47)
Effective Date:: 1 Apr 2006
Former MOE Rule:: MC10; AMC 1 AMSC G IMC Z IMCACTY PA

US Navy (N9BZ)
Effective Date:: 1 Apr 2006
Former MOE Rule:: NIZD
Supplementary Collaborators:: GTKEHD; AMC 1 AMSC G IMC Z IMCACTY GH

Slovenia (WL01)
Effective Date:: 1 Apr 2006

Poland (WP01)
Effective Date:: 1 Feb 2005

Czech Republic (WZ01)
Effective Date:: 1 Mar 2007

Brazil (YA01)
Effective Date:: 1 Oct 2000

Spain (YB01)
Effective Date:: 1 Apr 1991

Columbia (YC01)
Effective Date:: 1 Jun 2015

Singapore (YJ01)
Effective Date:: 1 Apr 1991

Australia (ZA01)
Effective Date:: 1 Apr 1991

Belgium (ZB01)
Effective Date:: 1 Jun 1995

Canada (ZC01)
Effective Date:: 1 Apr 1991

New Zealand (ZE01)
Effective Date:: 1 Apr 1991

France (ZF01)
Effective Date:: 1 Apr 1991

Germany (ZG01)
Effective Date:: 1 Apr 1991

Republic of Korea (ZH01)
Effective Date:: 1 Apr 1991

United Kingdom (ZK01)
Effective Date:: 1 Feb 1996

Philippines (ZM01)
Effective Date:: 1 Feb 2015

Netherlands (ZN01)
Effective Date:: 1 Sep 1995

Portugal (ZP01)
Effective Date:: 1 Jul 1996

Italy (ZR01)
Effective Date:: 1 Jul 1997

Denmark (ZS01)
Effective Date:: 1 Apr 1991

Norway (ZT01)
Effective Date:: 1 Apr 1991

Greece (ZU01)
Effective Date:: 1 Aug 1995

Turkey (ZW01)
Effective Date:: 1 Dec 1995

Approved Sources 5320-01-033-9128

Part Number
Manufacturer
Status
NAS9304BNS-4-04: 80205 - National Aerospace Standards (Active); Primary Buy; RNCC 3 RNVC 2 DAC E
CR3243-4-4: A0311 - Tecno Trade S.R.L. (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
CR3243-4-4: 11815 - Sps Technologies, Llc (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
CR3243-4-4: C4293 - Fairchild Fasteners Europe - Vsd (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 3
NAS9304BNS-4-04: 53551 - Allfast Fastening Systems, Llc (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 6
HC3243-4-04: 17446 - Huck International, Inc (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
HC3243-4-4: 17446 - Huck International, Inc (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
AF3243-4-04: 53551 - Allfast Fastening Systems, Llc (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
BACR15FR4B4: 81205 - The Boeing Company (Active); Secondary Buy; RNCC 5 RNVC 2 DAC A
CR3243-4-4: 92215 - Howmet Global Fastening Systems Inc (Active); Secondary Buy; RNCC 5 RNVC 2 DAC A
CR3243-4-4: F7652 - Klx Aerospace Solutions Ii Sas (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
OHCP-B04-04: 0HDW7 - Huck International, Inc. (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
M2133743: 1045G - Aero Vodochody A.S. (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
OHCP-B04-04: 17446 - Huck International, Inc (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
MIL-R-7885/6: 81349 - Military Specifications (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC E
AF3243-4-4: 53551 - Allfast Fastening Systems, Llc (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC E
HR3243-4-04: 0HDW7 - Huck International, Inc. (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC A
M7885/6-4-04: 81349 - Military Specifications (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC E
10431317: A486G - Nimikkeistokeskus Ncb Finland (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
5320PL1526687: 9009H - Jednolity Indeks Materialowy - (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
719811-4: D9182 - Zf Industrieantriebe Witten Gmbh (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
CR3243-4-4: FB009 - Boeing Distribution Services Inc (Active); Advisory Reference; RNCC C RNVC 1 DAC 4

Datasheet 5320-01-033-9128

Characteristic
Specifications
FIIG: A040A0
Expansion Device [ABAF]: Serrated Stem-Type W
Fastener Length [AASB]: 0.330 Inches Minimum And 0.350 Inches Maximum
Grip Length [ANEE]: 0.188 Inches Minimum And 0.250 Inches Maximum
Head Height [AASU]: 0.054 Inches Minimum And 0.064 Inches Maximum
Head Major Diameter [AAZG]: 0.238 Inches Minimum And 0.262 Inches Maximum
Head Style [AASK]: Universal
Material Document And Classification [MDCL]: Qq-A-430 Fed Spec Single Material Response Body
Material [MATT]: Aluminum Alloy 5056 Body
Material [MATT]: Steel Comp 8740 Stem
Material Document And Classification [MDCL]: Ams 6322 Assn Std Single Material Response Stem
Shank Diameter [AAZE]: 0.140 Inches Minimum And 0.143 Inches Maximum
Special Features [FEAT]: Ns" Letters After The Material Code "B" Indicate No Preference To Lock Type (May Be Visible Or Internal). Rivets With No Letter Code (Indicating Visible Lock Type) And Rivets With The Letter "H" After The Material Code (Indicating Internal Lock Type) Are Both Acceptable For This Item Of Supply.
Shank Style [AAZF]
Surface Treatment Document And Classification [STDC]: Mil-C-5541 Mil Spec Single Treatment Response Body
Surface Treatment Document And Classification [STDC]: Qq-P-416,Ty 2,Cl 3 Fed Spec Single Treatment Response Stem
Surface Treatment [SFTT]: Cadmium Stem
Surface Treatment [SFTT]: Chromate Body
