5320-01-033-8643

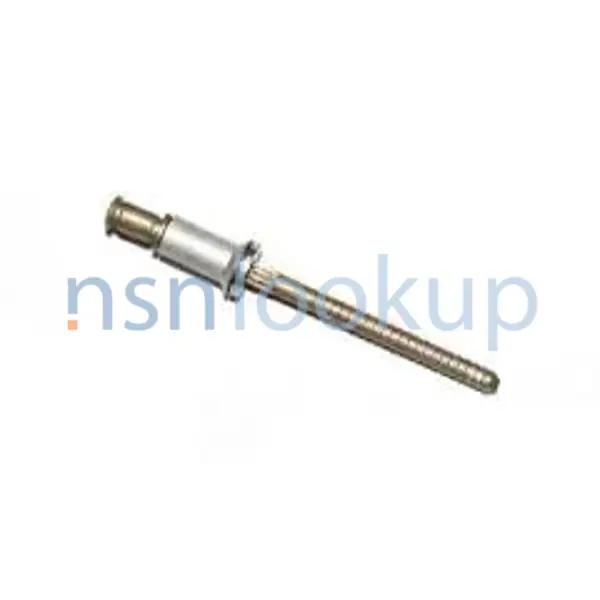

Blind Rivet
5320010338643 010338643 NAS9305BNS-6-02 CR3242-6-02 AF3242-6-02 HC3242-6-02 NAS9305BNS-6-2 AF3242-6-2 CR3242-6-2 HR3242-6-02 M7885/7-6-2 MIL-R-7885/7 5320PL0792382
An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY. View more Blind Rivet
Managed by United States
NSN Created on 13 Jan 1977
Data Last Changed
November 2023
November 2023
NATO Update Count
61
61
NATO Data Quality
Marketplace 5320-01-033-8643
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
CR3242-6-2 RIVET,BLIND 200 HD NS
AF3242-6-2 RIVET,BLIND 200 HD NS
M7885/7-6-2 RIVET,BLIND 100 HD NS
NAS9305BNS-6-2 RIVET,BLIND 200 HD NS
5320-01-033-8643 RIVET,BLIND 100 HD NS
NAS9305B6-02 RIVET 860 HD NS
NAS9305BNS-6-02 RIVET 100 HD NS
NAS9305BNS-6-02 RIVET 100 HD NS
CR3242-6-2 RIVET 967 HD NS
M7885/7-6-02 RIVET 400 HD NS
AF3242-6-02 RIVET 100 HD NS
NAS9305BNS-6-02 RIVET,BLIND 11241 HD NS
AF3242-6-02 RIVET,BLIND 11241 HD NS
CR3242-6-02 RIVET,BLIND 11241 HD NS
Updated Every Day 5320-01-033-8643 RQST NE
Updated Every Day 5320-01-033-8643 RQST
Updated Every Day 5320-01-033-8643 RQST NE
Related Documents 5320-01-033-8643 5+ Documents (More...)
NAS9305BNS-6-02 CR3242-6-02 AF3242-6-02 HC3242-6-02 NAS9305BNS-6-2 AF3242-6-2 CR3242-6-2 HR3242-6-02
M7885/7-6-2 MIL-R-7885/7 5320PL0792382 An item consisting of two or more of the following components
CR3242-6-02 RIVET,BLIND 40 HD NS Request Quotation CR3242-6-2 RIVET,BLIND 10 HD NS Request Quotation
M7885/7-6-2 MIL-R-7885/7 5320PL0792382 An item consisting of two or more of the following components
CR3242-6-02 RIVET,BLIND 40 HD NS Request Quotation CR3242-6-2 RIVET,BLIND 10 HD NS Request Quotation
136-7163Blind Rivet5320011367163 011367163 NAS9305BNS-6-03 HR3242-6-03 AF3242-6-03 M7885/7-6-03 MIL-R-7885/7
Rivet5320011502762 011502762 NAS9305BNS-6-10 CR3242-6-10 HR3242-6-10 AF3242-6-10 M7885/7-6-10 MIL-R-7885/7
136-7163Blind Rivet5320011367163 011367163 NAS9305BNS-6-03 HR3242-6-03 AF3242-6-03 M7885/7-6-03 MIL-R-7885/7
Rivet5320011502762 011502762 NAS9305BNS-6-10 CR3242-6-10 HR3242-6-10 AF3242-6-10 M7885/7-6-10 MIL-R-7885/7
136-7163Blind Rivet5320011367163 011367163 NAS9305BNS-6-03 HR3242-6-03 AF3242-6-03 M7885/7-6-03 MIL-R-7885/7
1886Blind Rivet5320010341886 010341886 NAS9305BNS-4-05 CR3242-4-05 AF3242-4-05 M2133940 M7885/7-4-05 MIL-R-7885/7
136-7163Blind Rivet5320011367163 011367163 NAS9305BNS-6-03 HR3242-6-03 AF3242-6-03 M7885/7-6-03 MIL-R-7885/7
Rivet5320011502762 011502762 NAS9305BNS-6-10 CR3242-6-10 HR3242-6-10 AF3242-6-10 M7885/7-6-10 MIL-R-7885/7
136-7163Blind Rivet5320011367163 011367163 NAS9305BNS-6-03 HR3242-6-03 AF3242-6-03 M7885/7-6-03 MIL-R-7885/7
Rivet5320011502762 011502762 NAS9305BNS-6-10 CR3242-6-10 HR3242-6-10 AF3242-6-10 M7885/7-6-10 MIL-R-7885/7
136-7163Blind Rivet5320011367163 011367163 NAS9305BNS-6-03 HR3242-6-03 AF3242-6-03 M7885/7-6-03 MIL-R-7885/7
Rivet5320011502762 011502762 NAS9305BNS-6-10 CR3242-6-10 HR3242-6-10 AF3242-6-10 M7885/7-6-10 MIL-R-7885/7
Rivet5320011502762 011502762 NAS9305BNS-6-10 CR3242-6-10 HR3242-6-10 AF3242-6-10 M7885/7-6-10 MIL-R-7885/7
Rivet5320011502762 011502762 NAS9305BNS-6-10 CR3242-6-10 HR3242-6-10 AF3242-6-10 M7885/7-6-10 MIL-R-7885/7
Rivet5320011502762 011502762 NAS9305BNS-6-10 CR3242-6-10 HR3242-6-10 AF3242-6-10 M7885/7-6-10 MIL-R-7885/7
NAS9305BNS-4-07 CR 3242 - 4 - 7 ASNA0077A4-07X CR3242-4-07 HR3242-4-07 AF3242-4-07 M7885/7-4-07 MIL-R-7885/7
HC3242-5-09 HR3242-5-09 CR3242-5-9 CR 3242 09 CR3242-6-09 AF3242-6-09 CR3242-6-9 M7885/7-6-09 MIL-R-7885/7
010878841 CR3242PR-5-07 CR3242-5-7 CR 3242 07 HR3242-6-07 AF3242-6-07 HC3242-6-07 CR3242-6-7 MIL-R-7885/7
HC3242-5-09 HR3242-5-09 CR3242-5-9 CR 3242 09 CR3242-6-09 AF3242-6-09 CR3242-6-9 M7885/7-6-09 MIL-R-7885/7
010878841 CR3242PR-5-07 CR3242-5-7 CR 3242 07 HR3242-6-07 AF3242-6-07 HC3242-6-07 CR3242-6-7 MIL-R-7885/7
Restrictions 5320-01-033-8643
5320-01-033-8643 is a Blind Rivet that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5320-01-033-8643
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5320-01-033-8643
- US Army (A919)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- A187
- Supplementary Receivers:
- AZCTBD
- US Coast Guard (C918)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- C004
- Supplementary Receivers:
- XH
- US Air Force (FXGI)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXKZ
- NASA (G880)
- Effective Date:
- 1 Apr 1991
- US Marine Corps (MC47)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- MC10
- US Navy (N9BZ)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- NIZD
- Supplementary Collaborators:
- GTKE
- Poland (WP01)
- Effective Date:
- 1 Jun 2011
- Brazil (YA01)
- Effective Date:
- 1 Oct 2000
- Spain (YB01)
- Effective Date:
- 1 Feb 1994
- Columbia (YC01)
- Effective Date:
- 1 Jun 2015
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Malaysia (YW01)
- Effective Date:
- 1 Apr 1991
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- France (ZF01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- United Kingdom (ZK01)
- Effective Date:
- 1 Apr 1991
- Philippines (ZM01)
- Effective Date:
- 1 Feb 2015
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 2013
- Portugal (ZP01)
- Effective Date:
- 1 Aug 1997
- Italy (ZR01)
- Effective Date:
- 1 Jul 1997
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Aug 1995
- Turkey (ZW01)
- Effective Date:
- 1 Dec 1995
Approved Sources 5320-01-033-8643
- Part Number
- Manufacturer
- Status
- NAS9305BNS-6-02
- Manufacturer
- 80205 - National Aerospace Standards (Active)
- Primary Buy
- Primary Buy
- CR3242-6-02
- 11815 - Sps Technologies, Llc (Active)
- Secondary Buy
- Secondary Buy
- AF3242-6-02
- 53551 - Allfast Fastening Systems, Llc (Active)
- Secondary Buy
- Secondary Buy
- NAS9305BNS-6-02
- K0668 - Leonardo Uk Ltd (Active)
- Secondary Buy
- Secondary Buy
- CR3242-6-2
- C4293 - Fairchild Fasteners Europe - Vsd (Active)
- Secondary Buy
- Secondary Buy
- HC3242-6-02
- 17446 - Huck International, Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- NAS9305BNS-6-2
- 80205 - National Aerospace Standards (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- AF3242-6-2
- 53551 - Allfast Fastening Systems, Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- CR3242-6-2
- F7652 - Klx Aerospace Solutions Ii Sas (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- HR3242-6-02
- 0HDW7 - Huck International, Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- M7885/7-6-2
- 81349 - Military Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- MIL-R-7885/7
- 81349 - Military Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- CR3242-6-2
- 92215 - Howmet Global Fastening Systems Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 5320PL0792382
- 9009H - Jednolity Indeks Materialowy - (Active)
- NATO Reference
- NATO Reference
- CR3242-6-2
- FB009 - Boeing Distribution Services Inc (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5320-01-033-8643
- Characteristic
- Specifications
- FIIG
- Specifications
- A040A0
- End Item Identification [AGAV]
- Aircraft, Phantom F-4; Aircraft, Startofortress B-52; Engine, Aircraft, Tf-33-P-7 (C-141A/B); Engine, Aircraft, Tf33-Pw-102 (C-135E, Ec-135H/K/P) U-2 Support Equipment; Truck, Ambulance, 2-Litter, Soft Top, 1 1/4 Ton Hmmwv; Aircraft, Ac-130H, Mc-130H, Ec-130E, Hc-130); Helicopter, Iroquois Uh-1; Truck, Utility, Cargo Troop Carrier, 5/4-Ton W/E (M998); Helicopter, Sof / Hh-53H Pave Low
- Countersink Angle [CRSQ]
- 100.0 Degrees Nominal
- Expansion Device [ABAF]
- Serrated Stem-Type W
- Fastener Length [AASB]
- 0.255 Inches Minimum And 0.275 Inches Maximum
- Grip Length [ANEE]
- 0.063 Inches Minimum And 0.125 Inches Maximum
- Head Major Diameter [AAZG]
- 0.270 Inches Minimum
- Head Style [AASK]
- Flush (Flat) Countersunk (Included Angle - Less Than 135 Deg W Or W/O Chamfer)
- Material Document And Classification [MDCL]
- Qq-A-430 Fed Spec Single Material Response Body
- Material [MATT]
- Aluminum Alloy 5056 Body
- Material [MATT]
- Steel Comp 8740 Stem
- Material Document And Classification [MDCL]
- Ams 6322 Assn Std Single Material Response Stem
- Shank Diameter [AAZE]
- 0.202 Inches Minimum And 0.205 Inches Maximum
- Shank Style [AAZF]
- Self-Plugging Mechanically Locked Stem
- Special Features [FEAT]
- Ns" Letters After The Material Code "B" Indicate No Preference To Lock Type (May Be Visible Or Internal). Rivets With No Letter Code (Indicating Visible Lock Type) And Rivets With The Letter "H" After The Material Code (Indicating Internal Lock Type) Are Both Acceptable For This Item Of Supply.
- Surface Treatment Document And Classification [STDC]
- Mil-C-5541 Mil Spec Single Treatment Response Body
- Surface Treatment Document And Classification [STDC]
- Qq-P-416,Ty 2,Cl 3 Fed Spec Single Treatment Response Stem
- Surface Treatment [SFTT]
- Cadmium Stem
- Surface Treatment [SFTT]
- Chromate Body
Weapon Systems (WSDC) 5320-01-033-8643
DLA Procurement Analysis 5320-01-033-8643
- Last Stock Position:
- 43100 In Stock
- DLA Administrative Lead Time:
