5320-01-016-1699
Blind Rivet
5320010161699 010161699 NAS1398C5A8 AF1240N5-8 CR4623-5-8 3M1236C5-8 CR2673-5-8 RV1340-5-8 RV1340C5-8
An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY. View more Blind Rivet
November 2023
17
Marketplace 5320-01-016-1699
Request a Quotation from participating marketplace vendors
Related Documents 5320-01-016-1699 1+ Documents (More...)

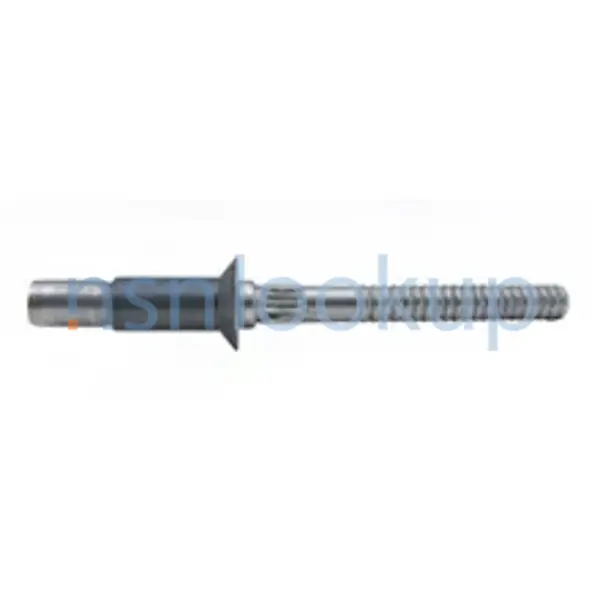

Photo 1/3 NSN 5320-01-016-1699 (Identification) 2/3 NSN 5320-01-016-1699 (Identification) 3/3 -
NAS1398C5A8 RIVET,BLIND 11 EA NS Request Quotation Updated Every Day 5320-01-016-1699 RQST NE Updated
Restrictions 5320-01-016-1699
5320-01-016-1699 is a Blind Rivet that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5320-01-016-1699
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5320-01-016-1699
- US Army (A919)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- A187
- Supplementary Receivers:
- CT
- US Air Force (FXGI)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- FXKZ
- US Navy (N9BZ)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- GTKE
- Spain (YB01)
- Effective Date:
- 1 May 1997
- Singapore (YJ01)
- Effective Date:
- 1 Jul 2001
- United Kingdom (ZK01)
- Effective Date:
- 1 Jun 2001
- Italy (ZR01)
- Effective Date:
- 1 Jul 1997
- Denmark (ZS01)
- Effective Date:
- 1 Feb 2009
- Turkey (ZW01)
- Effective Date:
- 1 Dec 1995
Approved Sources 5320-01-016-1699
- Part Number
- Manufacturer
- Status
- NAS1398C5A8
- Manufacturer
- 80205 - National Aerospace Standards (Active)
- Primary Buy
- Primary Buy
- AF1240N5-8
- 53551 - Allfast Fastening Systems, Llc (Active)
- Secondary Buy
- Secondary Buy
- CR4623-5-8
- 11815 - Sps Technologies, Llc (Active)
- Secondary Buy
- Secondary Buy
- 3M1236C5-8
- 76301 - The Boeing Company (Active)
- Secondary Buy
- Secondary Buy
- CR2673-5-8
- 11815 - Sps Technologies, Llc (Active)
- Secondary Buy
- Secondary Buy
- RV1340-5-8
- 53551 - Allfast Fastening Systems, Llc (Active)
- Secondary Buy
- Secondary Buy
- RV1340C5-8
- 53551 - Allfast Fastening Systems, Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5320-01-016-1699
- Characteristic
- Specifications
- FIIG
- Specifications
- A040A0
- Expansion Device [ABAF]
- Serrated Stem-Type W
- Fastener Length [AASB]
- 0.638 Inches Maximum
- Grip Length [ANEE]
- 0.438 Inches Minimum And 0.500 Inches Maximum
- Head Height [AASU]
- 0.067 Inches Minimum And 0.077 Inches Maximum
- Head Major Diameter [AAZG]
- 0.296 Inches Minimum And 0.328 Inches Maximum
- Head Style [AASK]
- Universal
- Material [MATT]
- Iron Alloy 660 Sleeve
- Material [MATT]
- Iron Alloy 660 Stem
- Material Document And Classification [MDCL]
- Ams 5731 Assn Std Single Material Response Stem
- Material Document And Classification [MDCL]
- Ams 5732 Assn Std Single Material Response Sleeve Or Ams 5731 Assn Std Single Material Response Sleeve Or Ams 5737 Assn Std Single Material Response Sleeve
- Shank Diameter [AAZE]
- 0.155 Inches Minimum And 0.159 Inches Maximum
- Shear Strength [CQSX]
- 1490 Single Pounds Per Square Inch
- Shank Style [AAZF]
- Self-Plugging Mechanically Locked Stem
- Specification/Standard Data [ZZZK]
- 80205-Nas1398 Professional/Industrial Association Standard
Weapon Systems (WSDC) 5320-01-016-1699
DLA Procurement Analysis 5320-01-016-1699
- Last Stock Position:
- 479 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5320-01-016-1699
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5320-01-016-1699
Freight Information 5320-01-016-1699
5320-01-016-1699 has freight characteristics managed by the Southwestern Power Administration.It has a National Motor Freight Classification (NMFC) of 106510. A Sub NMFC of X. It has a NMFC Description of RIVETS I/S PLAIN/GALVANIZED ETC. 5320-01-016-1699 is rated as class 50 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 54760 which rates the freight between FCL and LCL. 5320-01-016-1699 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5320-01-016-1699 is not classified as a special type of cargo when transported by water. 5320-01-016-1699 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
