5320-01-006-3984

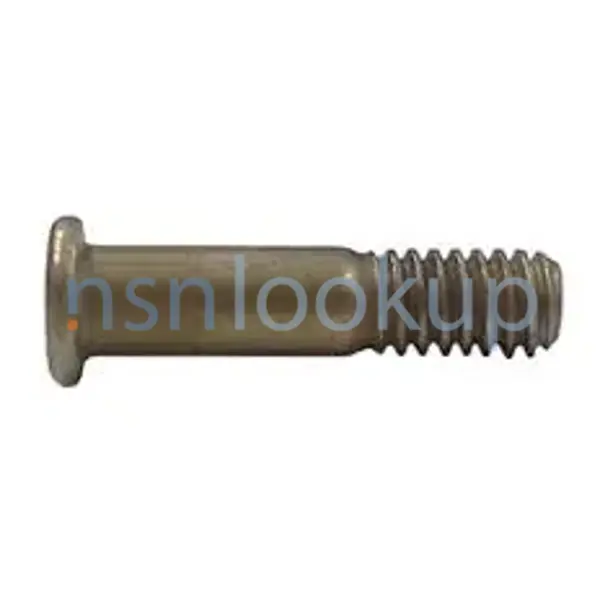

Pin-Rivet
5320010063984 010063984 HL328-6-2
A metallic or nonmetallic item, headed at one end, with a cylindrically shaped shank which may be tapered, grooved, or threaded. A locking collar or sleeve may be provided to perform the same holding action as the clinching portion of a conventional rivet. The shank may include an external wrenching facility which breaks off at a predetermined applied torque. View more Pin-Rivet
November 2023
24
Marketplace 5320-01-006-3984
Request a Quotation from participating marketplace vendors
Related Documents 5320-01-006-3984 5+ Documents (More...)
HL328-6-2 PIN-RIVET 10 EA NS Request Quotation Updated Every Day 5320-01-006-3984 RQST NE Updated Every
Day 5320-01-006-3984 RQST Updated Every Day 5320-01-006-3984 RQST NE Related Documents 5320-01-006-3984
Restrictions 5320-01-006-3984
5320-01-006-3984 is a Pin-Rivet that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5320-01-006-3984
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5320-01-006-3984
- US Air Force (FXGI)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- FXKZ
- US Navy (N9BZ)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- KE
- Kuwait (YK01)
- Effective Date:
- 1 Jan 2015
- Republic of Korea (ZH01)
- Effective Date:
- 1 Oct 2010
Approved Sources 5320-01-006-3984
- Part Number
- Manufacturer
- Status
- HL328-6-2
- Manufacturer
- 56878 - Sps Technologies, Llc (Active)
- Primary Buy
- Primary Buy
- HL328-6-2
- 73197 - Hi-Shear Corporation (Active)
- Primary Buy
- Primary Buy
- HL328-6-2
- 06950 - Howmet Global Fastening Systems Inc (Active)
- Primary Buy
- Primary Buy
- HL328-6-2
- L4528 - Lisi Aerospace Canada Corp (Active)
- Primary Buy
- Primary Buy
- HL328-6-2
- 06725 - Sps Technologies, Llc (Active)
- Primary Buy
- Primary Buy
- HL328-6-2
- 60516 - West Coast Aerospace, Inc. (Active)
- Secondary Buy
- Secondary Buy
- HL328-6-2
- 97928 - Huck Intl Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- HL328-6-2
- 17446 - Huck International, Inc (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5320-01-006-3984
- Characteristic
- Specifications
- FIIG
- Specifications
- A528U0
- Grip Length [ANEE]
- 0.130 Inches Maximum
- Head Height [AASU]
- 0.079 Inches Minimum And 0.081 Inches Maximum
- Head Major Diameter [AAZG]
- 0.560 Inches Nominal
- Head Style [AASK]
- Err-090
- Material [MATT]
- Steel Comp 4140 Overall Or Steel Comp 4340 Overall Or Steel Comp 8740 Overall
- Shank Diameter [AAZE]
- 0.1880 Inches Minimum And 0.1895 Inches Maximum
- Shank Style [AAZF]
- Pin-Rivet, Straight, Threaded
- Width Between Flats [AATB]
- 0.079 Inches Minimum And 0.081 Inches Maximum
- Surface Treatment [SFTT]
- Cadmium Overall
