5320-00-815-8813

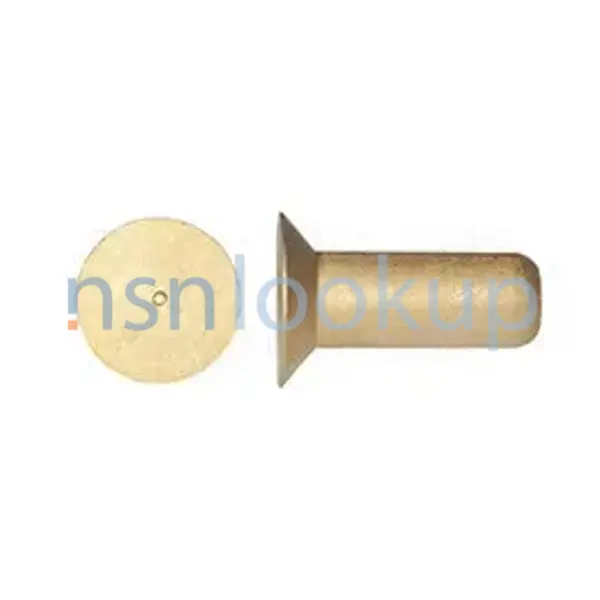

Solid Rivet
5320008158813 008158813 MS20426A3-16
A headed fastening device having a smooth solid shank designed to have the shank end upset after insertion. View more Solid Rivet
November 2023
32
Marketplace 5320-00-815-8813
Request a Quotation from participating marketplace vendors
Related Documents 5320-00-815-8813 5+ Documents (More...)
MS20426A3-16 RIVET,SOLID 3 LB NS Request Quotation Subscribe to View Vendor Details...
MS20426A3-16 RIVET,SOLID 1 LB NS Request Quotation Updated Every Day 5320-00-815-8813 RQST NE Updated
Restrictions 5320-00-815-8813
5320-00-815-8813 is a Solid Rivet that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5320-00-815-8813
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5320-00-815-8813
- US Army (A919)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- A187
- Supplementary Receivers:
- CT
- US Air Force (FXGI)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXKZ
- US Navy (N9BZ)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- GTKE
- Poland (WP01)
- Effective Date:
- 1 Oct 2006
- Brazil (YA01)
- Effective Date:
- 1 Oct 2000
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Belgium (ZB01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Feb 2005
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- United Kingdom (ZK01)
- Effective Date:
- 1 Apr 1991
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5320-00-815-8813
- Part Number
- Manufacturer
- Status
- MS20426A3-16
- Manufacturer
- 80205 - National Aerospace Standards (Active)
- Primary Buy
- Primary Buy
- MS20426A3-16
- 96906 - Military Standards (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5320-00-815-8813
- Characteristic
- Specifications
- FIIG
- Specifications
- A040A0
- Countersink Angle [CRSQ]
- 99.5 Degrees Minimum And 100.5 Degrees Maximum
- Fastener Length [AASB]
- 0.990 Inches Minimum And 1.010 Inches Maximum
- Grip Length [ANEE]
- 0.559 Inches Nominal
- Head Major Diameter [AAZG]
- 0.175 Inches Minimum And 0.183 Inches Maximum
- Head Style [AASK]
- Flush (Flat) Countersunk (Included Angle - Less Than 135 Deg W Or W/O Chamfer)
- Material Document And Classification [MDCL]
- Qq-A-430 Fed Spec Single Material Response Overall
- Material [MATT]
- Aluminum Alloy 1100 Overall
- Shank Diameter [AAZE]
- 0.093 Inches Minimum And 0.097 Inches Maximum
- Shank Style [AAZF]
- Straight
Weapon Systems (WSDC) 5320-00-815-8813
DLA Procurement Analysis 5320-00-815-8813
- Last Stock Position:
- 20 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5320-00-815-8813
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
- Special Material Content:
- 9
- Non-Hazardous or Non-Sensitive Item
Similar Supply Items to 5320-00-815-8813
Freight Information 5320-00-815-8813
5320-00-815-8813 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 106510. A Sub NMFC of X. It has a NMFC Description of RIVETS I/S PLAIN/GALVANIZED ETC. 5320-00-815-8813 is rated as class 50 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 54760 which rates the freight between FCL and LCL. 5320-00-815-8813 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 5320-00-815-8813 is not classified as a special type of cargo when transported by water. 5320-00-815-8813 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
