5320-00-419-3813
Pin-Rivet
5320004193813 004193813 HL328-14-12
A metallic or nonmetallic item, headed at one end, with a cylindrically shaped shank which may be tapered, grooved, or threaded. A locking collar or sleeve may be provided to perform the same holding action as the clinching portion of a conventional rivet. The shank may include an external wrenching facility which breaks off at a predetermined applied torque. View more Pin-Rivet
May 2023
17
Marketplace 5320-00-419-3813
Request a Quotation from participating marketplace vendors
Related Documents 5320-00-419-3813 5+ Documents (More...)

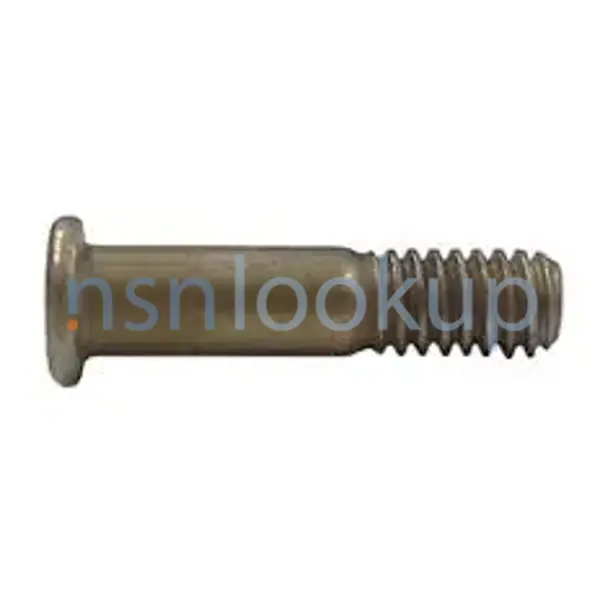

Photo 1/2 NSN 5320-00-419-3813 (Identification) 2/2 - - 1.
RQST NE Updated Every Day 5320-00-419-3813 RQST Updated Every Day 5320-00-419-3813 RQST NE Related Documents
Restrictions 5320-00-419-3813
5320-00-419-3813 is a Pin-Rivet that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5320-00-419-3813
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5320-00-419-3813
- US Navy (N9BZ)
- Effective Date:
- 1 Mar 2006
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- KE
- Kuwait (YK01)
- Effective Date:
- 1 Jan 2015
Approved Sources 5320-00-419-3813
- Part Number
- Manufacturer
- Status
- HL328-14-12
- Manufacturer
- 73197 - Hi-Shear Corporation (Active)
- Primary Buy
- Primary Buy
- HL328-14-12
- 56878 - Sps Technologies, Llc (Active)
- Secondary Buy
- Secondary Buy
- HL328-14-12
- 06950 - Howmet Global Fastening Systems Inc (Active)
- Secondary Buy
- Secondary Buy
- HL328-14-12
- 92215 - Howmet Global Fastening Systems Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5320-00-419-3813
- Characteristic
- Specifications
- FIIG
- Specifications
- A528U0
- Fastener Length [AASB]
- 1.375 Inches Minimum And 1.395 Inches Maximum
- Grip Length [ANEE]
- 0.745 Inches Minimum And 0.755 Inches Maximum
- Head Height [AASU]
- 0.093 Inches Minimum And 0.105 Inches Maximum
- Head Major Diameter [AAZG]
- 0.641 Inches Minimum And 0.676 Inches Maximum
- Head Style [AASK]
- Err-090
- Material Document And Classification [MDCL]
- Mil-S-5000 Mil Spec 1St Material Response Overall Or Mil-S-5000 Mil Spec 2Nd Material Response Overall Or Mil-S-5626 Mil Spec 3Rd Material Response Overall Or Mil-S-6049 Mil Spec 4Th Material Response Overall
- Material [MATT]
- Steel Comp E4340 Overall Or Steel Comp 4340 Overall Or Steel Comp 4140 Overall Or Steel Comp 8740 Overall
- Minimum Tensile Strength [CQBC]
- 180000 Pounds Per Square Inch
- Nominal Thread Size [CQJX]
- 0.438 Inches
- Lubrication [ABAJ]
- Cetyl Alcohol
- Shank Diameter [AAZE]
- 0.436 Inches Minimum And 0.437 Inches Maximum
- Shank Style [AAZF]
- Pin-Rivet, Straight, Threaded
- Shear Strength [CQSX]
- 108000 Single Pounds Per Square Inch
- Width Between Flats [AATB]
- 0.189 Inches Minimum And 0.193 Inches Maximum
- Surface Treatment Document And Classification [STDC]
- Qq-P-416,Ty 2,Cl 3 Fed Spec Single Treatment Response Overall
- Surface Treatment [SFTT]
- Cadmium Overall
- Thread Class [AAJD]
- 3A
- Thread Direction [AAJF]
- Right-Hand
- Thread Series Designator [THSD]
- Unjf
DLA Procurement Analysis 5320-00-419-3813
Management Data 5320-00-419-3813
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5320-00-419-3813
Freight Information 5320-00-419-3813
5320-00-419-3813 has freight characteristics managed by the Southwestern Power Administration.It has a National Motor Freight Classification (NMFC) of 095190. A Sub NMFC of J. It has a NMFC Description of HARDWARE, NOI SUB 9. 5320-00-419-3813 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49790 which rates the freight between FCL and LCL. 5320-00-419-3813 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5320-00-419-3813 is not classified as a special type of cargo when transported by water. 5320-00-419-3813 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 5320-00-419-3813 August 2020
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
