5320-00-321-2521

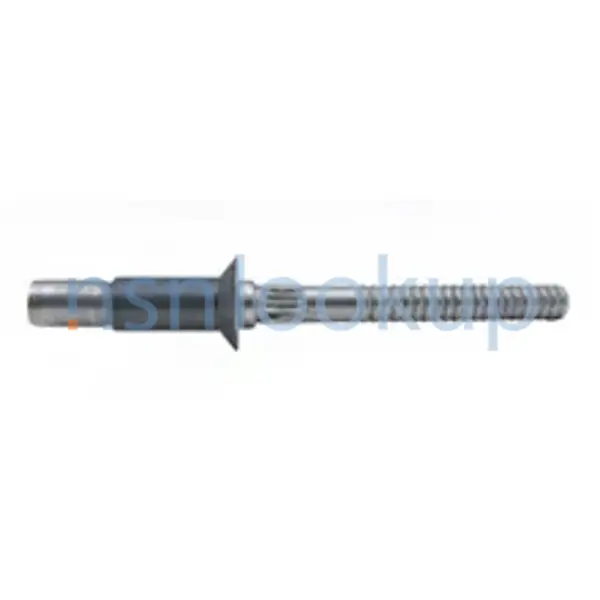

Blind Rivet

5320003212521 003212521 NAS1398C5-4 ST2249-24 NAS1398C5A4 CR4623-5-4 CR2673-5-4 3M1236C5-4 RV1340-5-4 RV1240-5-4 RV1340C5-4 10123680

An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY. View more Blind Rivet

Managed by United States

NSN Created on 18 Nov 1973

Data Last Changed
November 2023

NATO Update Count
35

NATO Data Quality

5320-00-321-2521 RIVET,BLIND 5320003212521 003212521 1/3 — 5320-00-321-2521 Photo 1/3

AASK Style C28 for 5320-00-321-2521 2/3 — NSN 5320-00-321-2521 (Identification) 2/3

AAZF Style D32 for 5320-00-321-2521 3/3 — NSN 5320-00-321-2521 (Identification) 3/3

Marketplace 5320-00-321-2521

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

NAS1398C5-4 RIVET,BLIND 8 EA NS

Subscribe to View Vendor Details...

NAS1398C5-4 RIVET,BLIND 1 EA NS

Subscribe to View Vendor Details...

CR4623-5-4 RIVET,BLIND 200 EA NS

NAS1398C5A4 RIVET,BLIND 4 EA NS

Subscribe to View Vendor Details...

NAS1398C5-4 RIVET,BLIND 263 EA NS

Subscribe to View Vendor Details...

NAS1398C5A4 RIVET,BLIND 4 EA NS

Subscribe to View Vendor Details...

3M1236C5-4 RIVET,BLIND 591 EA NS

Subscribe to View Vendor Details...

NAS1398C5A4 RIVET,BLIND 81 EA NS

Subscribe to View Vendor Details...

NAS1398C5A4 RIVET,BLIND 171 EA NS

NAS1398C5-4 RIVET,BLIND 4 EA NS

RV1340-5-4 RIVET,BLIND 5 EA NS

CR2673-5-4 RIVET,BLIND 2 EA NS

3M1236C5-4 RIVET,BLIND 50 EA NS

Subscribe to View Vendor Details...

NAS1398C5-4 RIVET,BLIND 10 EA NS

Subscribe to View Vendor Details...

CR4623-5-4 RIVET 1 EA NS

Subscribe to View Vendor Details...

RV1240-5-4 RIVET,BLIND 2 EA NS

Subscribe to View Vendor Details...

NAS1398C5A4 RIVET,BLIND 90 EA NS

CR2673-5-4 RIVET,BLIND 90 EA NS

NAS1398C5-4 RIVET,BLIND 1587 EA NS

Updated Every Day

5320-00-321-2521 RQST NE

Updated Every Day

5320-00-321-2521 RQST

Updated Every Day

5320-00-321-2521 RQST NE

Restrictions 5320-00-321-2521

5320-00-321-2521 is a Blind Rivet that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.

Import and Export 5320-00-321-2521

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 5320-00-321-2521

US Army (A919)
Effective Date:: 1 Apr 2006
Former MOE Rule:: A187
Supplementary Receivers:: CT; AMC 1 AMSC G IMC Z IMCACTY BF

US Air Force (FXGI)
Effective Date:: 1 Apr 2006
Former MOE Rule:: FXKZ; AMC 1 AMSC G IMC Z IMCACTY SX

US Navy (N9BZ)
Effective Date:: 1 Apr 2006
Former MOE Rule:: N9ZD
Supplementary Collaborators:: GTKE; AMC 1 AMSC G IMC Z IMCACTY GH

Finland (WF01)
Effective Date:: 1 Aug 2009

Poland (WP01)
Effective Date:: 1 Mar 2007

Brazil (YA01)
Effective Date:: 1 Aug 2000

Spain (YB01)
Effective Date:: 1 Apr 1991

Singapore (YJ01)
Effective Date:: 1 Jul 2001

Malaysia (YW01)
Effective Date:: 1 Aug 1997

Australia (ZA01)
Effective Date:: 1 Apr 1991

Belgium (ZB01)
Effective Date:: 1 Feb 2007

Canada (ZC01)
Effective Date:: 1 Apr 1991

Germany (ZG01)
Effective Date:: 1 Apr 1998

Republic of Korea (ZH01)
Effective Date:: 1 Mar 1999

United Kingdom (ZK01)
Effective Date:: 1 Apr 1991

Netherlands (ZN01)
Effective Date:: 1 Apr 2011

Portugal (ZP01)
Effective Date:: 1 Dec 2001

Italy (ZR01)
Effective Date:: 1 Jul 1997

Denmark (ZS01)
Effective Date:: 1 Feb 2007

Turkey (ZW01)
Effective Date:: 1 Nov 2005

Approved Sources 5320-00-321-2521

Part Number
Manufacturer
Status
ST2249-24: 77445 - Rtx Corporation (Active); Source Control; RNCC 1 RNVC 2 DAC 2
NAS1398C5A4: 80205 - National Aerospace Standards (Active); Primary Buy; RNCC 3 RNVC 2 DAC 4
CR4623-5-4: D0606 - Edgar Hausmann Gmbh (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 3
CR2673-5-4: R1120 - Satair A/S (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 6
CR4623-5-4: 11815 - Sps Technologies, Llc (Active); Secondary Buy; RNCC 5 RNVC 2 DAC A
3M1236C5-4: 76301 - The Boeing Company (Active); Secondary Buy; RNCC 5 RNVC 2 DAC E
CR2673-5-4: 11815 - Sps Technologies, Llc (Active); Secondary Buy; RNCC 5 RNVC 2 DAC E
RV1340-5-4: 53551 - Allfast Fastening Systems, Llc (Active); Secondary Buy; RNCC 5 RNVC 2 DAC E
CR4623-5-4: C7839 - Wilde, Roswitha Trading (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 6
RV1240-5-4: 53551 - Allfast Fastening Systems, Llc (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
RV1240-5-4: 92215 - Howmet Global Fastening Systems Inc (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
RV1240-5-4: 98996 - Olympic Fastening Systems Inc (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
RV1240-5-4: 98896 - Premier Industrial Corp/Indiana (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 2
RV1340C5-4: 53551 - Allfast Fastening Systems, Llc (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC E
10123680: A486G - Nimikkeistokeskus Ncb Finland (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
NAS1398C5-4: D9182 - Zf Industrieantriebe Witten Gmbh (Active); Advisory Reference; RNCC C RNVC 1 DAC 6

Datasheet 5320-00-321-2521

Characteristic
Specifications
FIIG: A040A0
Expansion Device [ABAF]: Serrated Stem-Type W
Fastener Length [AASB]: 0.388 Inches Maximum
Grip Length [ANEE]: 0.188 Inches Minimum And 0.250 Inches Maximum
Head Height [AASU]: 0.067 Inches Minimum And 0.077 Inches Maximum
Head Major Diameter [AAZG]: 0.296 Inches Minimum And 0.328 Inches Maximum
Head Style [AASK]: Universal
Material [MATT]: Iron Alloy 660 Sleeve
Material [MATT]: Iron Alloy 660 Stem
Material Document And Classification [MDCL]: Ams 5731 Assn Std Single Material Response Stem
Material Document And Classification [MDCL]: Ams 5732 Assn Std Single Material Response Sleeve Or Ams 5731 Assn Std Single Material Response Sleeve Or Ams 5737 Assn Std Single Material Response Sleeve
Shank Diameter [AAZE]: 0.155 Inches Minimum And 0.159 Inches Maximum
Shank Style [AAZF]: Self-Plugging Mechanically Locked Stem
Specification/Standard Data [ZZZK]: 80205-Nas1398 Professional/Industrial Association Standard

Weapon Systems (WSDC) 5320-00-321-2521

Subscribe
View WSDC

Subscribe to View Weapon System Codes...

Subscribe
View Data

DLA Procurement Analysis 5320-00-321-2521

Last Stock Position:: 5272 In Stock
DLA Administrative Lead Time:: Subscribe
DLA Production Lead Time:: Subscribe

Subscribe to View DLA Inventory and Forecast...

Management Data 5320-00-321-2521

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Oct 2022: Department of the Navy (DN); EA; Subscribe
Oct 2021: Department of the Army (DA); EA; Subscribe
May 2021: Department of the Air Force (DF); EA; Subscribe
Oct 2019: Department of the Army (DA); EA; Subscribe

Army

Materiel Category and Inventory Manager:

T: Industrial Supplies (DLA/GSA Items)

Appropriation and Budget Activity:

2: Stock Fund Secondary Items

Management Inventory Segment:

2: Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.

Weapons System / End Item / Homogeneous Group:

00: DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item

Accounting Requirements:

X: Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.

Air Force

Fund:

SF: Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point

Budget:

9: 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors

Aggregation Code:

SX: SICA RESIDUAL MMAC-OC-ALC

Price Validation Code:

N: The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.

Expendability Recoverability Repairability:

N: Expendable. Condemn at User. Stock Fund (except Munitions).

Navy

Cognizance:

9B: Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg

Similar Supply Items to 5320-00-321-2521

Freight Information 5320-00-321-2521

5320-00-321-2521 has freight characteristics managed by the Southwestern Power Administration.It has a National Motor Freight Classification (NMFC) of 106510. A Sub NMFC of X. It has a NMFC Description of RIVETS I/S PLAIN/GALVANIZED ETC. 5320-00-321-2521 is rated as class 50 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 54760 which rates the freight between FCL and LCL. 5320-00-321-2521 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 5320-00-321-2521 is not classified as a special type of cargo when transported by water. 5320-00-321-2521 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

Packaging Data 5320-00-321-2521

Responsible Activity
Packaging Data Source: Primary Inventory Control Activity (PICA); --

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation: --; --; Plated/Coated Item; 2lb or less, one dimension 2" or less, other dimensions less than 24"; Above 110G; No Requirement

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying: --; --; --; --; Physical Protection; Any Suitable Process

Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking: No Requirement; --; --; --; Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal; No special marking

Intermediate Pack Level

Quantity of Unit Packs
Container: PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box

Procurement History 5320-00-321-2521 42 Records

Subscribe
View Prices

Contract: Date; CAGE; Quantity; Net Price; Std Price
SPE4A224F0270: 13 Oct 2023; Subscribe; 5; Subscribe; Subscribe
SPE4A224F0271: 13 Oct 2023; Subscribe; 155; Subscribe; Subscribe
SPE4A224F0270P00001: 13 Oct 2023; Subscribe; 81; Subscribe; Subscribe
SPE4A224F0271: 13 Oct 2023; Subscribe; 155; Subscribe; Subscribe
SPE4A223F7880: 20 Aug 2023; Subscribe; 443; Subscribe; Subscribe
SPE4A223F7875P00001: 20 Aug 2023; Subscribe; 81; Subscribe; Subscribe
SPE4A223F7880: 20 Aug 2023; Subscribe; 443; Subscribe; Subscribe
SPE4A223F7875P00001: 20 Aug 2023; Subscribe; 81; Subscribe; Subscribe
SPE4A223F4852: 14 Apr 2023; Subscribe; 279; Subscribe; Subscribe
SPE4A223F4852: 14 Apr 2023; Subscribe; 279; Subscribe; Subscribe
SPE4A223F3497: 17 Feb 2023; Subscribe; 162; Subscribe; Subscribe
SPE4A223F3497: 17 Feb 2023; Subscribe; 162; Subscribe; Subscribe
SPE4A222F6673: 10 Jul 2022; Subscribe; 525; Subscribe; Subscribe
SPE4A222F6673: 10 Jul 2022; Subscribe; 525; Subscribe; Subscribe
SPE4A222F6322: 22 Jun 2022; Subscribe; 130; Subscribe; Subscribe
SPE4A222F6323: 22 Jun 2022; Subscribe; 626; Subscribe; Subscribe
SPE4A222F6322: 22 Jun 2022; Subscribe; 130; Subscribe; Subscribe
SPE4A222F6323: 22 Jun 2022; Subscribe; 626; Subscribe; Subscribe
SPE4A222F5312: 15 May 2022; Subscribe; 100; Subscribe; Subscribe
SPE4A222F5313: 15 May 2022; Subscribe; 142; Subscribe; Subscribe
SPE4A222F5313: 15 May 2022; Subscribe; 142; Subscribe; Subscribe
SPE4A222F5312P00001: 15 May 2022; Subscribe; 103; Subscribe; Subscribe
SPE4A222F5312P00001: 15 May 2022; Subscribe; 103; Subscribe; Subscribe
SPE4A222F3322: 17 Feb 2022; Subscribe; 89; Subscribe; Subscribe
SPE4A222F3323: 17 Feb 2022; Subscribe; 223; Subscribe; Subscribe
SPE4A222F3323: 17 Feb 2022; Subscribe; 223; Subscribe; Subscribe
SPE4A222F3322: 17 Feb 2022; Subscribe; 89; Subscribe; Subscribe
SPE4A222F1184: 18 Nov 2021; Subscribe; 100; Subscribe; Subscribe
SPE4A222F1184: 18 Nov 2021; Subscribe; 100; Subscribe; Subscribe
SPE4A221F7317: 24 Sep 2021; Subscribe; 203; Subscribe; Subscribe
SPE4A221F7317: 24 Sep 2021; Subscribe; 203; Subscribe; Subscribe
SPE4A221F5095: 15 Jul 2021; Subscribe; 286; Subscribe; Subscribe
SPE4A221F5095: 15 Jul 2021; Subscribe; 286; Subscribe; Subscribe
SPE4A221F2073P00002: 12 Feb 2021; Subscribe; 150; Subscribe; Subscribe
SPE4A221F2074: 12 Feb 2021; Subscribe; 2224; Subscribe; Subscribe
SPE4A221F2073P00002: 12 Feb 2021; Subscribe; 150; Subscribe; Subscribe
SPE4A221F2074: 12 Feb 2021; Subscribe; 2224; Subscribe; Subscribe
SPE5E319V3472: 14 Dec 2018; Subscribe; 2707; Subscribe; Subscribe
SPE5E317V0906: 09 Mar 2017; Subscribe; 6291; Subscribe; Subscribe
SPE5E915MQ200: 10 Mar 2015; Subscribe; 5291; Subscribe; Subscribe
SPE5E914V3891P00001: 14 Jul 2014; Subscribe; 500; Subscribe; Subscribe
SPE5E114V1082: 24 Jan 2014; Subscribe; 4651; Subscribe; Subscribe

Contracting Technical Data File (CTDF) 5320-00-321-2521 April 2020

Criticality and Quality

Critical Item Code:: X
Flight Safety:
Life Support:
Certified Samples:
Serialization:
First Article Test (FAT):
Certificate of Quality Compliance:
Production Lot Testing:
Special Testing:
Qualified Products List (QPL):

Commercial Properties

Government Furnished Material:
Government Furnished Tooling:
Government Furnished Property:
Price Evaluation Code:
Diminshing Manufacturing Sources:
Warranty:
Commerical Off The Shelf (COTS):
End Item Application:
Auctioning Candidate:
Source of Procurement:
Contract Option:

Restrictions

Boeing Rights Guard:
Export Controlled:
Controlled Technical Data Package (TDP):
Restricted Technical Data Package (TDP):
Contains Classified Material
Weapons System Indicator Code (WSIC):: F

Packaging Requirements

Packaging Determination Table:
Packaging Review Code:
Special Packaging Instruction Number (SPIN):
Special Packaging Instruction Number Revision:
Special Packaging Instruction Number Date:
Pallet Reference Number Required:

Subscribe
View CTDF

Subscribe to View CTDF Details...

Marketplace 5320-00-321-2521

Related Documents 5320-00-321-2521 5+ Documents (More...)

Restrictions 5320-00-321-2521

Import and Export 5320-00-321-2521

End Users 5320-00-321-2521

Approved Sources 5320-00-321-2521

Datasheet 5320-00-321-2521

Weapon Systems (WSDC) 5320-00-321-2521

DLA Procurement Analysis 5320-00-321-2521

Management Data 5320-00-321-2521

Army

Air Force

Navy

Similar Supply Items to 5320-00-321-2521

Freight Information 5320-00-321-2521

Packaging Data 5320-00-321-2521

Item Pack Level (Unpackaged)

Unit Pack Level (Packaged)

Intermediate Pack Level

Procurement History 5320-00-321-2521 42 Records

Contracting Technical Data File (CTDF) 5320-00-321-2521 April 2020

Criticality and Quality

Commercial Properties

Restrictions

Packaging Requirements
