5320-00-293-5122

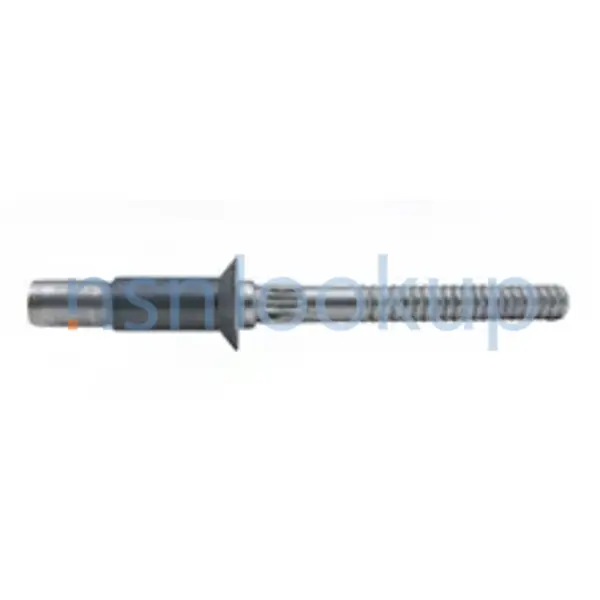

Blind Rivet
5320002935122 002935122 CR4623-5-3 CR2673-5-3 RV1340-5-3 NAS1398C5A3 JKN00122115 04050452036733 3M1236C5-3 RV1240-5-3 CR5623-5-3 RV1340C5-3 10123613
An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY. View more Blind Rivet
Managed by United States
NSN Created on 22 Sep 1973
Data Last Changed
November 2023
November 2023
NATO Update Count
44
44
NATO Data Quality
Marketplace 5320-00-293-5122
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 5320-00-293-5122 3+ Documents (More...)
NAS1398C5A3 CR4623-5-3 CR2673-5-3 RV1340-5-3 JKN00122115 04050452036733 3M1236C5-3 RV1240-5-3 CR5623
-5-3 RV1340C5-3 10123613 An item consisting of two or more of the following components: stem, rivet body
NAS1398C5A3 RIVET,BLIND 176 EA NS Request Quotation RV1240-5-3 RIVET,BLIND 6 EA NS Request Quotation
-5-3 RV1340C5-3 10123613 An item consisting of two or more of the following components: stem, rivet body
NAS1398C5A3 RIVET,BLIND 176 EA NS Request Quotation RV1240-5-3 RIVET,BLIND 6 EA NS Request Quotation
NAS1398C5A3 RIVET,BLIND 200 EA NS Request Quotation Subscribe to View Vendor Details...
NAS1398C5A3 RIVET,BLIND 64 EA NS Request Quotation Subscribe to View Vendor Details...
NAS1398C5A3 RIVET,BLIND 8 EA NS Request Quotation CR4623-5-3 RIVET,BLIND 8 EA NS Request Quotation Updated
NAS1398C5A3 RIVET,BLIND 64 EA NS Request Quotation Subscribe to View Vendor Details...
NAS1398C5A3 RIVET,BLIND 8 EA NS Request Quotation CR4623-5-3 RIVET,BLIND 8 EA NS Request Quotation Updated
a day Upgrade your Account Upgrade 5320-01-099-7957Blind Rivet5320010997957 010997957 ST2249-23 RV1240-5-3
Updated Every Day 5320-01-099-7957 RQST NE Updated https//www.nsnlookup.com /fsg-53/fsc-5320/us 5320-00-293-5122
Blind Rivet 5320002935122 002935122 RV1240-5-3 RIVET,BLIND 13 EA NS Request Quotation Subscribe
Updated Every Day 5320-01-099-7957 RQST NE Updated https//www.nsnlookup.com /fsg-53/fsc-5320/us 5320-00-293-5122
Blind Rivet 5320002935122 002935122 RV1240-5-3 RIVET,BLIND 13 EA NS Request Quotation Subscribe
Restrictions 5320-00-293-5122
5320-00-293-5122 is a Blind Rivet that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5320-00-293-5122
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5320-00-293-5122
- US Army (A919)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- A187
- Supplementary Receivers:
- CT
- US Air Force (FXGI)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXKZ
- US Navy (N9BZ)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- GTKE
- Finland (WF01)
- Effective Date:
- 1 Aug 2009
- Poland (WP01)
- Effective Date:
- 1 Jul 2011
- Brazil (YA01)
- Effective Date:
- 1 Aug 2000
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Israel (YD01)
- Effective Date:
- 1 Aug 2016
- Singapore (YJ01)
- Effective Date:
- 1 Jul 2001
- Malaysia (YW01)
- Effective Date:
- 1 Aug 1997
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Apr 1998
- Republic of Korea (ZH01)
- Effective Date:
- 1 Oct 2009
- United Kingdom (ZK01)
- Effective Date:
- 1 Apr 1991
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 2011
- Italy (ZR01)
- Effective Date:
- 1 Jul 1997
- Denmark (ZS01)
- Effective Date:
- 1 Feb 2009
- Norway (ZT01)
- Effective Date:
- 1 Oct 2015
- Greece (ZU01)
- Effective Date:
- 1 Mar 2008
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 5320-00-293-5122
- Part Number
- Manufacturer
- Status
- RV1240-5-3
- Manufacturer
- 53551 - Allfast Fastening Systems, Llc (Active)
- Primary Buy
- Primary Buy
- CR4623-5-3
- 11815 - Sps Technologies, Llc (Active)
- Primary Buy
- Primary Buy
- NAS1398C5A3
- 80205 - National Aerospace Standards (Active)
- Primary Buy
- Primary Buy
- CR4623-5-3
- R1120 - Satair A/S (Active)
- Secondary Buy
- Secondary Buy
- CR2673-5-3
- 11815 - Sps Technologies, Llc (Active)
- Secondary Buy
- Secondary Buy
- RV1340-5-3
- 53551 - Allfast Fastening Systems, Llc (Active)
- Secondary Buy
- Secondary Buy
- NAS1398C5A3
- 2G586 - Peerless Aerospace Fastener Corp (Active)
- Secondary Buy
- Secondary Buy
- JKN00122115
- C4680 - Jk Defence & Security Products Gmbh (Active)
- Secondary Buy
- Secondary Buy
- 04050452036733
- C4680 - Jk Defence & Security Products Gmbh (Active)
- Secondary Buy
- Secondary Buy
- CR4623-5-3
- D0606 - Edgar Hausmann Gmbh (Active)
- Secondary Buy
- Secondary Buy
- CR2673-5-3
- R1120 - Satair A/S (Active)
- Secondary Buy
- Secondary Buy
- CR4623-5-3
- C7839 - Wilde, Roswitha Trading (Active)
- Secondary Buy
- Secondary Buy
- RV1240-5-3
- 92215 - Howmet Global Fastening Systems Inc (Active)
- Secondary Buy
- Secondary Buy
- 3M1236C5-3
- 76301 - The Boeing Company (Active)
- Secondary Buy
- Secondary Buy
- RV1240-5-3
- 98996 - Olympic Fastening Systems Inc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- CR5623-5-3
- 98996 - Olympic Fastening Systems Inc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- RV1340C5-3
- 53551 - Allfast Fastening Systems, Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 10123613
- A486G - Nimikkeistokeskus Ncb Finland (Active)
- NATO Reference
- NATO Reference
Datasheet 5320-00-293-5122
- Characteristic
- Specifications
- FIIG
- Specifications
- A040A0
- Expansion Device [ABAF]
- Serrated Stem-Type W
- Fastener Length [AASB]
- 0.326 Inches Maximum
- Grip Length [ANEE]
- 0.126 Inches Minimum And 0.187 Inches Maximum
- Head Height [AASU]
- 0.067 Inches Minimum And 0.077 Inches Maximum
- Head Major Diameter [AAZG]
- 0.296 Inches Minimum And 0.328 Inches Maximum
- Head Style [AASK]
- Universal
- Material Document And Classification [MDCL]
- Qq-N-281 Fed Spec Single Material Response Locking Ring
- Material [MATT]
- Iron Alloy 660 Sleeve
- Material [MATT]
- Iron Alloy 660 Stem
- Material [MATT]
- Nickel Alloy Locking Ring
- Material Document And Classification [MDCL]
- Ams 5731 Assn Std Single Material Response Stem
- Material Document And Classification [MDCL]
- Ams 5732 Assn Std Single Material Response Sleeve Or Ams 5731 Assn Std Single Material Response Sleeve Or Ams 5737 Assn Std Single Material Response Sleeve
- Shank Diameter [AAZE]
- 0.155 Inches Minimum And 0.159 Inches Maximum
- Shank Style [AAZF]
- Specification/Standard Data [ZZZK]
- 80205-Nas1398 Professional/Industrial Association Standard
Weapon Systems (WSDC) 5320-00-293-5122
DLA Procurement Analysis 5320-00-293-5122
- Last Stock Position:
- 12149 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5320-00-293-5122
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- SX
- SICA RESIDUAL MMAC-OC-ALC
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5320-00-293-5122
Freight Information 5320-00-293-5122
5320-00-293-5122 has freight characteristics managed by the Southwestern Power Administration.It has a National Motor Freight Classification (NMFC) of 106510. A Sub NMFC of X. It has a NMFC Description of RIVETS I/S PLAIN/GALVANIZED ETC. 5320-00-293-5122 is rated as class 50 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 54760 which rates the freight between FCL and LCL. 5320-00-293-5122 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 5320-00-293-5122 is not classified as a special type of cargo when transported by water. 5320-00-293-5122 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5320-00-293-5122
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- --
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- --
- --
- Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Procurement History 5320-00-293-5122 12 Records
- Contract
- Date
- CAGE
- Quantity
- Net Price
- Std Price
- CAGE
- SPE5EY18F2589
- 05 Dec 2017
- Subscribe
- 3610
- Subscribe
- Subscribe
- Subscribe
- SPM5EY13D05421107
- 31 Aug 2017
- Subscribe
- 4426
- Subscribe
- Subscribe
- Subscribe
- SPM5EY13D05421086
- 09 Aug 2017
- Subscribe
- 3531
- Subscribe
- Subscribe
- Subscribe
- SPM5EY13D05420954
- 29 Mar 2017
- Subscribe
- 12766
- Subscribe
- Subscribe
- Subscribe
- SPE5E917V0424
- 27 Oct 2016
- Subscribe
- 7948
- Subscribe
- Subscribe
- Subscribe
- SPE5E915V3452
- 08 Jun 2015
- Subscribe
- 2388
- Subscribe
- Subscribe
- Subscribe
- SPE5E915V2720
- 05 May 2015
- Subscribe
- 893
- Subscribe
- Subscribe
- Subscribe
- SPE5E814V8709
- 03 Sep 2014
- Subscribe
- 2601
- Subscribe
- Subscribe
- Subscribe
- SPE5E914V3530
- 09 Jun 2014
- Subscribe
- 3829
- Subscribe
- Subscribe
- Subscribe
- SPE5E914V1875
- 10 Mar 2014
- Subscribe
- 489
- Subscribe
- Subscribe
- Subscribe
- SPE5E914MQ052
- 04 Mar 2014
- Subscribe
- 3060
- Subscribe
- Subscribe
- Subscribe
- SPM5E913MQ095
- 07 Jan 2013
- Subscribe
- 821
- Subscribe
- Subscribe
- Subscribe
Contracting Technical Data File (CTDF) 5320-00-293-5122 April 2020
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
