5320-00-150-4120
Pin-Rivet
5320001504120 001504120 HL328-6-5
A metallic or nonmetallic item, headed at one end, with a cylindrically shaped shank which may be tapered, grooved, or threaded. A locking collar or sleeve may be provided to perform the same holding action as the clinching portion of a conventional rivet. The shank may include an external wrenching facility which breaks off at a predetermined applied torque. View more Pin-Rivet
November 2023
25
Marketplace 5320-00-150-4120
Request a Quotation from participating marketplace vendors
Related Documents 5320-00-150-4120 5+ Documents (More...)
Day 5320-00-150-4120 RQST Updated Every Day 5320-00-150-4120 RQST NE Related Documents 5320-00-150-4120

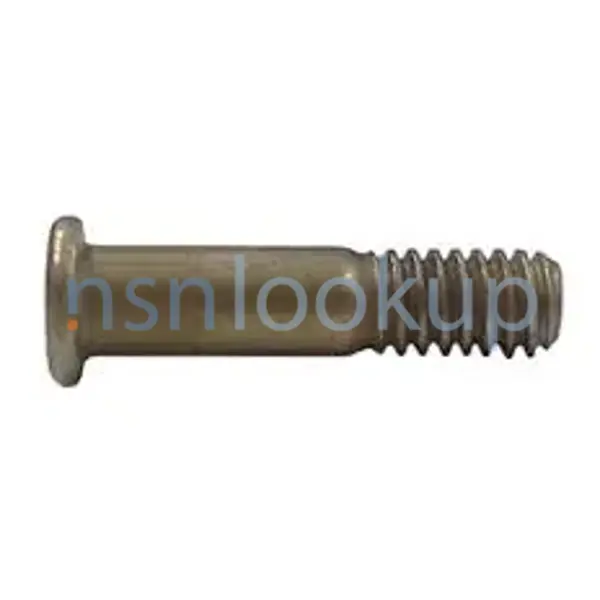

,HL328-6-5 Photo 1/2 NSN 5320-00-150-4120 (Identification) 2/2 - - 1.
Restrictions 5320-00-150-4120
5320-00-150-4120 is a Pin-Rivet that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5320-00-150-4120
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5320-00-150-4120
- US Air Force (FGGI)
- Effective Date:
- 1 May 2007
- US Navy (N9BZ)
- Effective Date:
- 1 Aug 2005
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- KE
- Kuwait (YK01)
- Effective Date:
- 1 Feb 2015
- Canada (ZC01)
- Effective Date:
- 1 Aug 2005
- Republic of Korea (ZH01)
- Effective Date:
- 1 Jun 2000
Approved Sources 5320-00-150-4120
- Part Number
- Manufacturer
- Status
- HL328-6-5
- Manufacturer
- 73197 - Hi-Shear Corporation (Active)
- Primary Buy
- Primary Buy
- HL328-6-5
- 06950 - Howmet Global Fastening Systems Inc (Active)
- Secondary Buy
- Secondary Buy
- HL328-6-5
- 56878 - Sps Technologies, Llc (Active)
- Secondary Buy
- Secondary Buy
- HL328-6-5
- 92215 - Howmet Global Fastening Systems Inc (Active)
- Secondary Buy
- Secondary Buy
- HL328-6-5
- 06725 - Sps Technologies, Llc (Active)
- Secondary Buy
- Secondary Buy
- HL328-6-5
- 17446 - Huck International, Inc (Active)
- Secondary Buy
- Secondary Buy
- HL328-6-5
- 60516 - West Coast Aerospace, Inc. (Active)
- Secondary Buy
- Secondary Buy
- HL328-6-5
- 80539 - Sps Technologies, Llc (Active)
- Secondary Buy
- Secondary Buy
- HL328-6-5
- K5673 - Sps Technologies Ltd, Tj Brooks (Active)
- Secondary Buy
- Secondary Buy
- HL328-6-5
- L4528 - Lisi Aerospace Canada Corp (Active)
- Secondary Buy
- Secondary Buy
- HL328-6-5
- 97928 - Huck Intl Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5320-00-150-4120
- Characteristic
- Specifications
- FIIG
- Specifications
- A528U0
- Fastener Length [AASB]
- 0.638 Inches Nominal
- Grip Length [ANEE]
- 0.313 Inches Nominal
- Head Height [AASU]
- 0.045 Inches Minimum And 0.055 Inches Maximum
- Head Style [AASK]
- Err-090
- Head Major Diameter [AAZG]
- 0.295 Inches Minimum And 0.315 Inches Maximum
- Heat Treatment [HEAT]
- As Fabricated Overall
- Material Document And Classification [MDCL]
- Mil-S-6049 Mil Spec 1St Material Response Overall Or Mil-S-5626 Mil Spec 2Nd Material Response Overall
- Material [MATT]
- Steel Comp 8740 Overall Or Steel Comp 4140 Overall
- Minimum Tensile Strength [CQBC]
- 180000 Pounds Per Square Inch
- Nominal Thread Size [CQJX]
- 0.190 Inches
- Shank Diameter [AAZE]
- 0.188 Inches Nominal
- Shank Style [AAZF]
- Pin-Rivet, Straight, Threaded
- Shear Strength [CQSX]
- 108000 Single Pounds Per Square Inch
- Width Between Flats [AATB]
- 0.079 Inches Minimum And 0.081 Inches Maximum
- Surface Treatment Document And Classification [STDC]
- Qq-P-416 Ty 3 Cl 1 Fed Spec Single Treatment Response Overall
- Surface Treatment [SFTT]
- Cadmium Overall And Phosphate Overall
- Thread Class [AAJD]
- 3A
- Thread Direction [AAJF]
- Right-Hand
- Thread Quantity Per Inch [CMLP]
- 32
- Thread Series Designator [THSD]
- Unjf
Weapon Systems (WSDC) 5320-00-150-4120
DLA Procurement Analysis 5320-00-150-4120
- Last Stock Position:
- 11 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5320-00-150-4120
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5320-00-150-4120
Freight Information 5320-00-150-4120
5320-00-150-4120 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 106510. A Sub NMFC of X. It has a NMFC Description of RIVETS I/S PLAIN/GALVANIZED ETC. 5320-00-150-4120 is rated as class 50 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 54760 which rates the freight between FCL and LCL. 5320-00-150-4120 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 5320-00-150-4120 is not classified as a special type of cargo when transported by water. 5320-00-150-4120 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
