5320-00-117-6963
Solid Rivet
5320001176963 001176963 MS20426A4-6
A headed fastening device having a smooth solid shank designed to have the shank end upset after insertion. View more Solid Rivet
Managed by United States
NSN Created on 1 Jan 1963
Data Last Changed
November 2023
November 2023
NATO Update Count
44
44
NATO Data Quality
Marketplace 5320-00-117-6963
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 5320-00-117-6963 5+ Documents (More...)

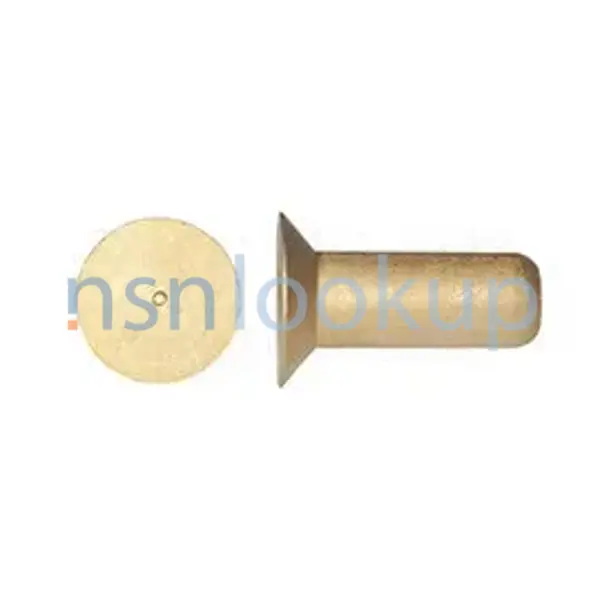

Photo 1/3 NSN 5320-00-117-6963 (Identification) 2/3 NSN 5320-00-117-6963 (Identification) 3/3 -
MS20426A4-6 RIVET,SOLID 1 LB NS Request Quotation Subscribe to View Vendor Details...
MS20426A4-6 RIVET,SOLID 75 LB NS Request Quotation Updated Every Day 5320-00-117-6963 RQST NE Updated
MS20426A4-6 RIVET,SOLID 1 LB NS Request Quotation Subscribe to View Vendor Details...
MS20426A4-6 RIVET,SOLID 75 LB NS Request Quotation Updated Every Day 5320-00-117-6963 RQST NE Updated
019-2637 5320-01-450-4075 5320-00-256-6404 5320-00-808-8511 5320-00-117-6950 5320-00-117-7575 5320-00-117-6963
019-2637 5320-01-450-4075 5320-00-256-6404 5320-00-808-8511 5320-00-117-6950 5320-00-117-7575 5320-00-117-6963
019-2637 5320-01-450-4075 5320-00-256-6404 5320-00-808-8511 5320-00-117-6950 5320-00-117-7575 5320-00-117-6963
019-2637 5320-01-450-4075 5320-00-256-6404 5320-00-808-8511 5320-00-117-6950 5320-00-117-7575 5320-00-117-6963
Restrictions 5320-00-117-6963
5320-00-117-6963 is a Solid Rivet that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5320-00-117-6963
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5320-00-117-6963
- US Army (A919)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- A187
- Supplementary Receivers:
- AZCTCLBD
- US Air Force (FXGI)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXKZ
- US Marine Corps (MC47)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- MC10
- US Navy (N9BZ)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- GTKEHD
- Slovenia (WL01)
- Effective Date:
- 1 Apr 2006
- Poland (WP01)
- Effective Date:
- 1 Jul 2011
- Brazil (YA01)
- Effective Date:
- 1 Aug 2000
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Columbia (YC01)
- Effective Date:
- 1 Jul 2015
- Israel (YD01)
- Effective Date:
- 1 Apr 1991
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Kuwait (YK01)
- Effective Date:
- 1 Feb 2015
- Malaysia (YW01)
- Effective Date:
- 1 Mar 2007
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Belgium (ZB01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- France (ZF01)
- Effective Date:
- 1 May 2015
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- United Kingdom (ZK01)
- Effective Date:
- 1 Apr 1991
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Apr 1991
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
- NATO Maintenance and Supply Agency (ZX01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5320-00-117-6963
- Part Number
- Manufacturer
- Status
- MS20426A4-6
- Manufacturer
- 80205 - National Aerospace Standards (Active)
- Primary Buy
- Primary Buy
- MS20426A4-6
- 96906 - Military Standards (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5320-00-117-6963
- Characteristic
- Specifications
- FIIG
- Specifications
- A040A0
- Countersink Angle [CRSQ]
- 99.5 Degrees Minimum And 100.5 Degrees Maximum
- Fastener Length [AASB]
- 0.365 Inches Minimum And 0.385 Inches Maximum
- Grip Length [ANEE]
- 0.177 Nominal Mils And 0.197 Nominal Centimeters
- Head Style [AASK]
- Flush (Flat) Countersunk (Included Angle - Less Than 135 Deg W Or W/O Chamfer)
- Head Major Diameter [AAZG]
- 0.221 Inches Minimum And 0.229 Inches Maximum
- Material Document And Classification [MDCL]
- Qq-A-430 Fed Spec Single Material Response Overall
- Material [MATT]
- Aluminum Alloy 1100 Overall
- Shank Diameter [AAZE]
- 0.124 Inches Minimum And 0.128 Inches Maximum
- Shank Style [AAZF]
- Straight W/Radius Chamfered Tip
- Surface Treatment Document And Classification [STDC]
- Mil-A-8625 Mil Spec Single Treatment Response Overall Or Mil-C-5541 Mil Spec Single Treatment Response Overall
- Surface Treatment [SFTT]
- Anodize Overall Or Chromate Overall
