5320-00-117-6950

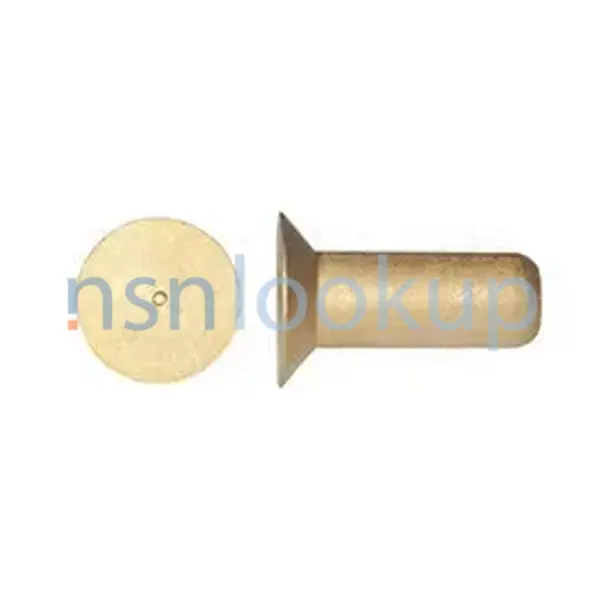

Solid Rivet
5320001176950 001176950 MS20426AD4-7 MS2042AD4-5 2074227-2203 411172-289 216MS007P041 AN426A04-5 MS20426A4-5 LS15947AD4-5 MS20426-AD4-5 0600-248 3M268AD4-5 AS125290 5-4-1346-31-13 946125-4305 GHN10001-51 413719-086 LS1105AD4-5 AN426AD4-5 MS20426AD4-5 5320PL1930966 10123494 5320PL1742226
A headed fastening device having a smooth solid shank designed to have the shank end upset after insertion. View more Solid Rivet
Managed by United States
NSN Created on 1 Jan 1963
Data Last Changed
November 2023
November 2023
NATO Update Count
101
101
NATO Data Quality
Marketplace 5320-00-117-6950
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
MS20426AD4-5 RIVET,SOLID 301 LB NS
MS20426AD4-7 RIVET,SOLID 250 LB NS
MS20426A4-5 RIVET,SOLID 6 LB NS
Updated Every Day 5320-00-117-6950 RQST NE
Updated Every Day 5320-00-117-6950 RQST
Updated Every Day 5320-00-117-6950 RQST NE
Related Documents 5320-00-117-6950 5+ Documents (More...)
MS20426AD4-7 MS20426-AD4-5 MS2042AD4-5 2074227-2203 411172-289 216MS007P041 AN426A04-5 MS20426A4-5 LS15947AD4
-5 0600-248 3M268AD4-5 AS125290 5-4-1346-31-13 946125-4305 GHN10001-51 MS20426AD4-5 413719-086 LS1105AD4
-5 AN426AD4-5 5320PL1930966 10123494 5320PL1742226 A headed fastening device having a smooth solid shank
-5 0600-248 3M268AD4-5 AS125290 5-4-1346-31-13 946125-4305 GHN10001-51 MS20426AD4-5 413719-086 LS1105AD4
-5 AN426AD4-5 5320PL1930966 10123494 5320PL1742226 A headed fastening device having a smooth solid shank
MS20426AD4-5 RIVET,SOLID 2 EA NS Request Quotation Subscribe to View Vendor Details...
AN426AD4-5 RIVET,SOLID 3 EA NS Request Quotation Subscribe to View Vendor Details...
AN426AD4-5 RIVET,SOLID 44 EA NS Request Quotation Subscribe to View Vendor Details...
AN426AD4-5 RIVET,SOLID 3 EA NS Request Quotation Subscribe to View Vendor Details...
AN426AD4-5 RIVET,SOLID 44 EA NS Request Quotation Subscribe to View Vendor Details...
MS20426AD4-5 RIVET,SOLID 2 EA NS Request Quotation Subscribe to View Vendor Details...
AN426AD4-5 RIVET,SOLID 3 EA NS Request Quotation Subscribe to View Vendor Details...
AN426AD4-5 RIVET,SOLID 44 EA NS Request Quotation Subscribe to View Vendor Details...
AN426AD4-5 RIVET,SOLID 3 EA NS Request Quotation Subscribe to View Vendor Details...
AN426AD4-5 RIVET,SOLID 44 EA NS Request Quotation Subscribe to View Vendor Details...
MS20426AD4-5-5 RIVET,SOLID 2 EA NS Request Quotation Subscribe to View Vendor Details...
MS20426AD4-5-5 RIVET,SOLID 99 EA NS Request Quotation Subscribe to View Vendor Details...
MS20426AD4-5-5 RIVET,SOLID 40 EA NS Request Quotation Subscribe to View Vendor Details...
MS20426AD4-5-5 RIVET,SOLID 99 EA NS Request Quotation Subscribe to View Vendor Details...
MS20426AD4-5-5 RIVET,SOLID 40 EA NS Request Quotation Subscribe to View Vendor Details...
031-7657 RQST NE Updated Every Day 5310-01-031- https//www.nsnlookup.com /fsg-53/fsc-5320/us 5320-00-117-6950
Solid Rivet 5320001176950 001176950 Upgrade 5320-00-117-6950Solid Rivet5320001176950 001176950
MS20426AD4-7 MS20426-AD4-5 MS2042AD4-5 2074227 headed fastening device having a smooth solid shank https
Solid Rivet 5320001176950 001176950 Upgrade 5320-00-117-6950Solid Rivet5320001176950 001176950
MS20426AD4-7 MS20426-AD4-5 MS2042AD4-5 2074227 headed fastening device having a smooth solid shank https
Restrictions 5320-00-117-6950
5320-00-117-6950 is a Solid Rivet that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5320-00-117-6950
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5320-00-117-6950
- US Army (A919)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- A187
- Supplementary Receivers:
- AJCTCLBFBDAZ
- MOE Rule:
- BGX1
- Effective Date:
- 1 Jan 2007
- US Coast Guard (C918)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- C004
- Supplementary Receivers:
- XH
- US Air Force (FXGI)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXKZ
- NASA (G860)
- Effective Date:
- 1 Apr 1991
- US Marine Corps (MC47)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- MC10
- US Navy (N9BZ)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- NIZD
- Supplementary Collaborators:
- GTKEJFHD
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Finland (WF01)
- Effective Date:
- 1 Aug 2009
- Slovenia (WL01)
- Effective Date:
- 1 Apr 2016
- Poland (WP01)
- Effective Date:
- 1 Aug 2005
- Slovakia (WS01)
- Effective Date:
- 1 Jul 2016
- Bulgaria (WU01)
- Effective Date:
- 1 Oct 2002
- Brazil (YA01)
- Effective Date:
- 1 Dec 1999
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Columbia (YC01)
- Effective Date:
- 1 Jul 2015
- Israel (YD01)
- Effective Date:
- 1 Apr 1991
- Argentina (YF01)
- Effective Date:
- 1 Feb 2015
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Kuwait (YK01)
- Effective Date:
- 1 Feb 2015
- Malaysia (YW01)
- Effective Date:
- 1 Jul 1994
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Belgium (ZB01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- France (ZF01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- United Kingdom (ZK01)
- Effective Date:
- 1 Apr 1991
- Philippines (ZM01)
- Effective Date:
- 1 Feb 2015
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Apr 1991
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
- NATO Maintenance and Supply Agency (ZX01)
- Effective Date:
- 1 Sep 2004
Approved Sources 5320-00-117-6950
- Part Number
- Manufacturer
- Status
- MS20426AD4-5
- Manufacturer
- 80205 - National Aerospace Standards (Active)
- Primary Buy
- Primary Buy
- 0600-248
- 07187 - Honeywell International Inc. (Active)
- Secondary Buy
- Secondary Buy
- 3M268AD4-5
- 76301 - The Boeing Company (Active)
- Secondary Buy
- Secondary Buy
- AS125290
- 0U583 - Sae International (Active)
- Secondary Buy
- Secondary Buy
- 5-4-1346-31-13
- 81337 - W1d1 Natick Soldier Center (Active)
- Secondary Buy
- Secondary Buy
- 946125-4305
- 06481 - Northrop Grumman Systems Corporation (Active)
- Secondary Buy
- Secondary Buy
- GHN10001-51
- 98897 - Lockheed Martin Corp (Active)
- Secondary Buy
- Secondary Buy
- 413719-086
- 02964 - American Sterilizer Company (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- LS1105AD4-5
- 98897 - Lockheed Martin Corp (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- AN426AD4-5
- 88044 - Aeronautical Standards Group (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 3M268AD4-5
- 53551 - Allfast Fastening Systems, Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- AS125290
- 81343 - Society Of Automotive Engineers Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 5-4-1346-31-13
- 05699 - Brunswick Corp Defense Div (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- MS20426AD4-5
- 96906 - Military Standards (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 5320PL1930966
- 9009H - Jednolity Indeks Materialowy - (Active)
- NATO Reference
- NATO Reference
- 10123494
- A486G - Nimikkeistokeskus Ncb Finland (Active)
- NATO Reference
- NATO Reference
- 5320PL1742226
- 9009H - Jednolity Indeks Materialowy - (Active)
- NATO Reference
- NATO Reference
- MS20426AD4-7
- D9182 - Zf Industrieantriebe Witten Gmbh (Active)
- Advisory Reference
- Advisory Reference
- MS2042AD4-5
- D9182 - Zf Industrieantriebe Witten Gmbh (Active)
- Advisory Reference
- Advisory Reference
- 2074227-2203
- D9182 - Zf Industrieantriebe Witten Gmbh (Active)
- Advisory Reference
- Advisory Reference
- 411172-289
- 96214 - Raytheon Company (Active)
- Advisory Reference
- Advisory Reference
- 216MS007P041
- D9182 - Zf Industrieantriebe Witten Gmbh (Active)
- Advisory Reference
- Advisory Reference
- 413719-086
- 0NWN1 - Steris Corporation (Active)
- Advisory Reference
- Advisory Reference
- AN426A04-5
- D9182 - Zf Industrieantriebe Witten Gmbh (Active)
- Advisory Reference
- Advisory Reference
- MS20426A4-5
- D9182 - Zf Industrieantriebe Witten Gmbh (Active)
- Advisory Reference
- Advisory Reference
- LS15947AD4-5
- D9182 - Zf Industrieantriebe Witten Gmbh (Active)
- Advisory Reference
- Advisory Reference
- MS20426-AD4-5
- D9182 - Zf Industrieantriebe Witten Gmbh (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5320-00-117-6950
- Characteristic
- Specifications
- FIIG
- Specifications
- A040A0
- Countersink Angle [CRSQ]
- 99.5 Degrees Minimum And 100.5 Degrees Maximum
- End Item Identification [AGAV]
- W/S: Deff Comm Meteorl (An/Tmq-028,An/Tcc-76,An/Tps-068,An/Tcc-77); Aircraft, Ac-130H, Mc-130H, Ec-130E, Hc-130); Support Equipment, B-1 Aircraft; Airborne Mobile Dir Air Spt Ctl (2Id), (02Mjul83)(An/Uyq-3A); Support Equipment, B-52 Aircraft; Missile, Advanced Medium Range Air-To-Air (Amraam)/Aim120a; Communications Terminal, Satellite An/Gsc-39(V)1; Engine, Aircraft Tf33-Pw-102 (C-135E, Ec-135H/K/P); Central Message Switch, An/Tyc-39A
- Fastener Length [AASB]
- 0.302 Inches Minimum And 0.322 Inches Maximum
- Grip Length [ANEE]
- 0.124 Inches Nominal
- Head Style [AASK]
- Flush (Flat) Countersunk (Included Angle - Less Than 135 Deg W Or W/O Chamfer)
- Head Major Diameter [AAZG]
- 0.221 Inches Minimum And 0.229 Inches Maximum
- Material Document And Classification [MDCL]
- Qq-A-430 Fed Spec Single Material Response Overall
- Material [MATT]
- Aluminum Alloy 2117 Overall
- Shank Diameter [AAZE]
- 0.124 Inches Minimum And 0.128 Inches Maximum
- Shank Style [AAZF]
- Straight W/Radius Chamfered Tip
- Shear Strength [CQSX]
- 26000 Single Pounds Per Square Inch
- Surface Treatment Document And Classification [STDC]
- Mil-A-8625 Mil Spec 1St Treatment Response Overall Or Mil-C-5541 Mil Spec 2Nd Treatment Response Overall
- Surface Treatment [SFTT]
- Anodize Overall Or Oxide Film Overall
Weapon Systems (WSDC) 5320-00-117-6950
DLA Procurement Analysis 5320-00-117-6950
- Last Stock Position:
- 823 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5320-00-117-6950
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- CC
- Other Aircraft Categories
Multi-Application Aviation Spares
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 6
- Critical Repair Part to a Non-Combat Essential End Item
- Echelon Management:
- B2
- Material Identification:
- B
- Consumable Repair Parts
- Operational Test:
- No Special Procedures
Similar Supply Items to 5320-00-117-6950
Freight Information 5320-00-117-6950
5320-00-117-6950 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 106510. A Sub NMFC of X. It has a NMFC Description of RIVETS I/S PLAIN/GALVANIZED ETC. 5320-00-117-6950 is rated as class 50 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 54760 which rates the freight between FCL and LCL. 5320-00-117-6950 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 5320-00-117-6950 is not classified as a special type of cargo when transported by water. 5320-00-117-6950 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5320-00-117-6950
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- --
- --
- Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Procurement History 5320-00-117-6950 8 Records
- Contract
- Date
- CAGE
- Quantity
- Net Price
- Std Price
- CAGE
- SPE4A623FB89J
- 07 Jul 2023
- Subscribe
- 4
- Subscribe
- Subscribe
- Subscribe
- SPE4A623FB89K
- 07 Jul 2023
- Subscribe
- 99
- Subscribe
- Subscribe
- Subscribe
- SPE4A623FB89L
- 07 Jul 2023
- Subscribe
- 274
- Subscribe
- Subscribe
- Subscribe
- SPE4A623FB89J
- 07 Jul 2023
- Subscribe
- 4
- Subscribe
- Subscribe
- Subscribe
- SPE4A623FB89K
- 07 Jul 2023
- Subscribe
- 99
- Subscribe
- Subscribe
- Subscribe
- SPE4A623FB89L
- 07 Jul 2023
- Subscribe
- 274
- Subscribe
- Subscribe
- Subscribe
- SPE5E318V3391
- 15 Feb 2018
- Subscribe
- 376
- Subscribe
- Subscribe
- Subscribe
- SPE5E318V1728
- 07 Dec 2017
- Subscribe
- 56
- Subscribe
- Subscribe
- Subscribe
Contracting Technical Data File (CTDF) 5320-00-117-6950 August 2020
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
