5315-01-661-9978
Headed Grooved Pin
5315016619978 016619978 MA520001-96
A cylindrically-shaped headed item, having circular or longitudinal groove(s). View more Headed Grooved Pin
May 2023
1
Marketplace 5315-01-661-9978
Request a Quotation from participating marketplace vendors
Related Documents 5315-01-661-9978 1+ Documents (More...)
BUY NE FedMall Updated Every Day 5315-01-661-9978 RQST NE Updated Every Day 5315-01-661-9978 RQST
Updated Every Day 5315-01-661-9978 RQST NE Related Documents 5315-01-661-9978 1+ Documents ( More...
Restrictions 5315-01-661-9978
5315-01-661-9978 is a Headed Grooved Pin that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 5315-01-661-9978
- US Air Force (FBB5)
- Effective Date:
- 1 Mar 2017
Approved Sources 5315-01-661-9978
- Part Number
- Manufacturer
- Status
- MA520001-96
- Manufacturer
- 81205 - The Boeing Company (Active)
- Primary Buy
- Primary Buy
Datasheet 5315-01-661-9978
- Characteristic
- Specifications
- FIIG
- Specifications
- A212A0
- Effective Length [ABNZ]
- 1.76 Inches Nominal
- Diameter [ABMZ]
- 0.373 Inches Minimum And 0.374 Inches Maximum
- First End Taper Length [AMCS]
- 0.170 Inches Nominal
- First End Style [AAGZ]
- Chamfered

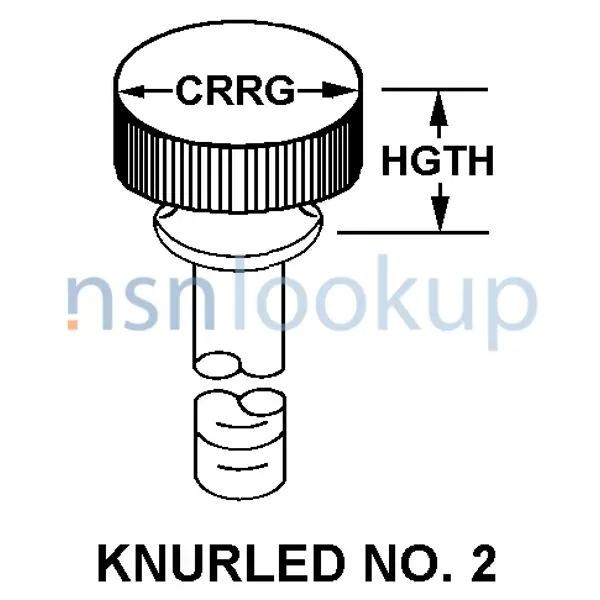

- Head Style [AASK]
- Knurled No. 2
- Height [HGTH]
- 0.51 Inches Nominal
- End Item Identification [AGAV]
- Kc-46A Se
- Material [MATT]
- Steel Overall
- Part Name Assigned By Controlling Agency [CXCY]
- Pin,Straight,Headed
- Material Document And Classification [MDCL]
- Ams 5604 National Spec Single Material Response Or Ams 5643 National Spec Single Material Response Overall
- Pin Head Diameter [CRRG]
- 1.0 Inches Nominal
- Second Undercut Width [ABPD]
- 0.250 Inches Nominal
- Second Undercut Diameter [ABPF]
- 0.283 Inches Nominal
- Under Head Length [ABPB]
- 2.75 Inches Nominal
- Undercut Width [ABPC]
- 0.250 Inches Nominal
- Undercut Diameter [ABPA]
- 0.283 Inches Nominal
- Style Designator [STYL]
- Groove
