5315-01-603-9781
Headed Grooved Pin
5315016039781 016039781 Z6553 803049
A cylindrically-shaped headed item, having circular or longitudinal groove(s). View more Headed Grooved Pin
November 2023
1
Marketplace 5315-01-603-9781
Request a Quotation from participating marketplace vendors
Related Documents 5315-01-603-9781 5+ Documents (More...)
(Identification) 1/3 NSN 5315-01-603-9781 (Identification) 2/3 NSN 5315-01-603-9781 (Identification
BUY NE FedMall Updated Every Day 5315-01-603-9781 RQST NE Updated Every Day 5315-01-603-9781 RQST
Updated Every Day 5910-14-297-8530 RQST Updated Every https//www.nsnlookup.com /fsg-53/fsc-5315/us 5315-01-603-9781
Headed Grooved Pin 5315016039781 016039781 Documents 5315-01-603-9781 5+ Documents ( More... )
JavaScript in your web browser . 2590-33-154-5942Push-Pull Control Assembly2590331545942 331545942 803049
Headed Grooved Pin 5315016039781 016039781 day Upgrade your Account Upgrade 5315-01-603-9781Headed
www.nsnlookup.com /fsg-53/fsc-5330/us 5330-01-645-3497 Plain Seal 5330016453497 016453497,803049-35 803049
Upgrade for $1 a day Upgrade your Account Upgrade 5330-01-645-3497Plain Seal5330016453497 016453497 803049
/www.nsnlookup.com /fsg-53/fsc-5340/us 5340-01-180-5171 Weather Cover Retainer 5340011805171 SM-C-803049
803049 day Upgrade your Account Upgrade 5340-01-180-5171Weather Cover Retainer5340011805171 011805171
Restrictions 5315-01-603-9781
5315-01-603-9781 is a Headed Grooved Pin that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 5315-01-603-9781
- US Army (A919)
- Effective Date:
- 1 Mar 2012
- Supplementary Receivers:
- BF
- US Marine Corps (MC47)
- Effective Date:
- 1 Dec 2013
Approved Sources 5315-01-603-9781
- Part Number
- Manufacturer
- Status
- Z6553
- Manufacturer
- 60042 - Zodiac Of North America, Inc. (Active)
- Primary Buy
- Primary Buy
- 803049
- 60042 - Zodiac Of North America, Inc. (Active)
- Informational Drawing
- Informational Drawing
Datasheet 5315-01-603-9781
- Characteristic
- Specifications
- FIIG
- Specifications
- A212A0
- Style Designator [STYL]
- Groove
- Diameter [ABMZ]
- 10.0 Millimeters Nominal
- Undercut Diameter [ABPA]
- 6.0 Millimeters Nominal
- Under Head Length [ABPB]
- 36.0 Millimeters Nominal
- First End Style [AAGZ]
- Square W/Thru Hole
- Head Style [AASK]

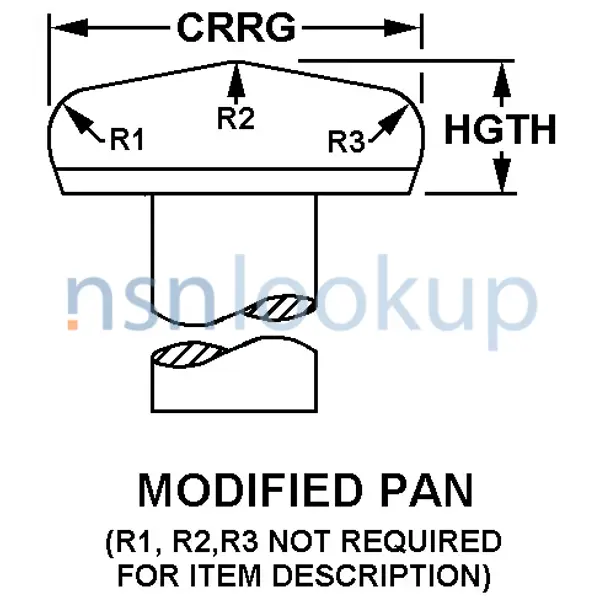

- Modified Pan (R1, R2, R3 Not Required For Item Description)
- Height [HGTH]
- 5.0 Millimeters Nominal
- Special Features [FEAT]
- End Groove Is Internal To Accept Removable Smaller Pin W/Same Head Style As Other End; Refer To Drawing For Additional Details
- Part Name Assigned By Controlling Agency [CXCY]
- Pin,Retaining
Weapon Systems (WSDC) 5315-01-603-9781
DLA Procurement Analysis 5315-01-603-9781
- Last Stock Position:
- 22 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5315-01-603-9781
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Operational Test:
- 0
- Physical Category:
- 1
- Bin
NATO Stock Numbers Related to 5315-01-603-9781
Freight Information 5315-01-603-9781
5315-01-603-9781 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 095190. A Sub NMFC of Z. It has a NMFC Description of HARDWARE, NOI. 5315-01-603-9781 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49790 which rates the freight between FCL and LCL. 5315-01-603-9781 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5315-01-603-9781 is not classified as a special type of cargo when transported by water. 5315-01-603-9781 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
