5315-01-603-3357
Threaded Straight Pin
5315016033357 016033357 12508511 24KP667
A headless, cylindrically-shaped item, having external threads at one end only. The threaded and plain portions are of one nominal diameter. Includes items having cotter pin hole(s) on either one or both ends. Its length must not exceed 12 inches (304 MM). It may have a recess drive feature. See also PIN, STRAIGHT, HEADLESS. Excludes STUD, WELDING; and SETSCREW. View more Threaded Straight Pin
August 2023
4
Marketplace 5315-01-603-3357
Request a Quotation from participating marketplace vendors
Related Documents 5315-01-603-3357 1+ Documents (More...)
BUY NE FedMall Updated Every Day 5315-01-603-3357 RQST NE Updated Every Day 5315-01-603-3357 RQST
Updated Every Day 5315-01-603-3357 RQST NE Related Documents 5315-01-603-3357 1+ Documents ( More...
Restrictions 5315-01-603-3357
5315-01-603-3357 is a Threaded Straight Pin that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 5315-01-603-3357
- US Army (A919)
- Effective Date:
- 1 Feb 2012
- Supplementary Receivers:
- AZ
Approved Sources 5315-01-603-3357
- Part Number
- Manufacturer
- Status
- 12508511
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
- 12508511
- 53KZ7 - Joseph T. Ryerson & Son, Inc. (Active)
- Secondary Buy
- Secondary Buy
- 24KP667
- 75Q65 - Oshkosh Defense Llc (Active)
- Secondary Buy
- Secondary Buy
- 24KP667
- 45152 - Oshkosh Corp (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5315-01-603-3357
- Characteristic
- Specifications
- FIIG
- Specifications
- A212A0
- Material [MATT]
- Steel Comp 4140 Overall
- Material Document And Classification [MDCL]
- Astm A-193/4140 Assn Std Single Material Response Overall
- Surface Treatment [SFTT]
- Chromate Overall
- Surface Treatment Document And Classification [STDC]
- Astm B633 Type Ii Assn Std Single Treatment Response Overall

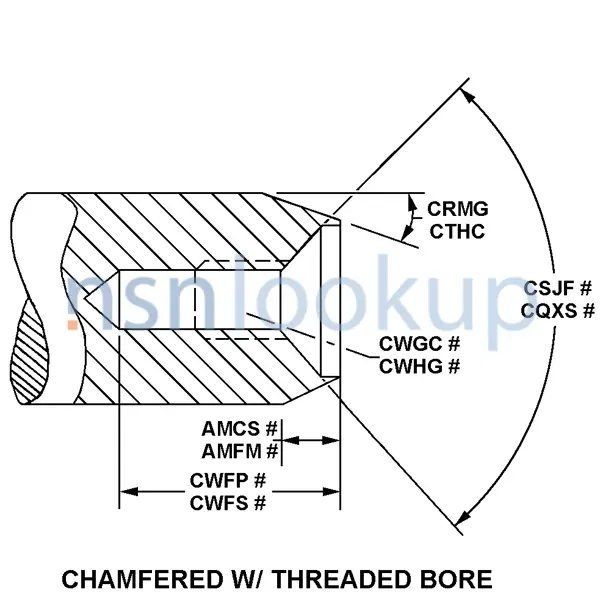

- First End Style [AAGZ]
- Chamfered W/Threaded Bore
- First End Taper Length [AMCS]
- 0.180 Inches Nominal
- Second End Relationship With First End [CQBB]
- Not Identical
- Second End Taper Length [AMFM]
- 0.030 Inches Nominal
- Second End Taper Angle [CTHC]
- 45.0 Degrees Nominal
- Thread Series Designator [THSD]
- Unc
- Nominal Thread Size [CQJX]
- 0.500 Inches
- Thread Quantity Per Inch [CMLP]
- 13
- Thread Class [AAJD]
- 2B
- Thread Direction [AAJF]
- Right-Hand
- Thread Length [AASA]
- 1.000 Inches Nominal
- Pin Overall Length [ACHT]
- 2.630 Inches Nominal
- Pin Overall Diameter [ACHU]
- 1.000 Inches Nominal
- Special Features [FEAT]
- Externally Threaded End Has An Unthreaded Portion .115 Inches In Length With A .030 Inch Radius Next To The Major Diameter (Shoulder)
- End Item Identification [AGAV]
- Hemtt/Cargo Truck
- Part Name Assigned By Controlling Agency [CXCY]
- Roof Positioning Rear Pin
