5315-01-570-0801
Headless Grooved Pin
5315015700801 015700801 93890A568
A headless item of various shapes, usually cylindrical, having either circular or longitudinal groove(s). Its length must not exceed 12 inches (304 MM). Excludes ROD, GROOVED, HEADLESS; SHAFT (as modified); and PIN, VEHICULAR LEAF SPRING SHACKLE. View more Headless Grooved Pin
November 2023
2
Marketplace 5315-01-570-0801
Request a Quotation from participating marketplace vendors
Related Documents 5315-01-570-0801 1+ Documents (More...)
United States (US) 4. 5315-01-570-0801 Marketplace Restrictions Approved Sources Datasheet Management
BUY NE FedMall Updated Every Day 93890A568 RQST NE Updated Every Day 5315-01-570-0801 RQST NE Updated
Restrictions 5315-01-570-0801
5315-01-570-0801 is a Headless Grooved Pin that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5315-01-570-0801
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5315-01-570-0801
- US Army (A919)
- Effective Date:
- 1 Dec 2008
- US Air Force (FXGI)
- Effective Date:
- 1 May 2009
- US Marine Corps (MC47)
- Effective Date:
- 1 Dec 2008
- US Navy (N9BZ)
- Effective Date:
- 1 Apr 2012
- Supplementary Collaborators:
- HD
Approved Sources 5315-01-570-0801
- Part Number
- Manufacturer
- Status
- 93890A568
- Manufacturer
- 39428 - Mcmaster-Carr Supply Co (Active)
- Primary Buy
- Primary Buy
Datasheet 5315-01-570-0801
- Characteristic
- Specifications
- FIIG
- Specifications
- A212A0
- Effective Length [ABNZ]
- 0.750 Inches Nominal
- Diameter [ABMZ]
- 0.250 Inches Nominal
- First End Style [AAGZ]

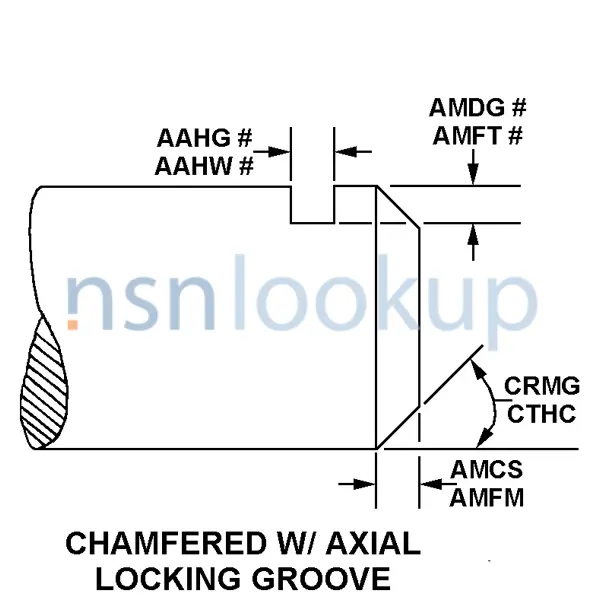

- Chamfered W/Axial Locking Groove
- First End Location [CRDY]
- Grooved End
- Hardness Rating [CQFM]
- 80.0 Rockwell B Minimum Overall
- End Item Identification [AGAV]
- 2540-01-566-6751;Gunners Restraint Kit; Mrap - Cougar Cat1 A2
- Material [MATT]
- Steel Overall
- Part Name Assigned By Controlling Agency [CXCY]
- Grooved Pin,With Retaining Rings
- Second End Relationship With First End [CQBB]
- Identical
- Overall Length [ABHP]
- 1.031 Inches Nominal
- Special Features [FEAT]
- Finish: Zinc-Plated;Pin Type: Clevis Pin Grooved W/2 Retaining Rings
- Style Designator [STYL]
- Groove
Weapon Systems (WSDC) 5315-01-570-0801
DLA Procurement Analysis 5315-01-570-0801
- Last Stock Position:
- 5 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5315-01-570-0801
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
NATO Stock Numbers Related to 5315-01-570-0801
Freight Information 5315-01-570-0801
5315-01-570-0801 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 095190. A Sub NMFC of Z. It has a NMFC Description of HARDWARE, NOI. 5315-01-570-0801 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49790 which rates the freight between FCL and LCL. 5315-01-570-0801 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5315-01-570-0801 is not classified as a special type of cargo when transported by water. 5315-01-570-0801 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
