5315-01-484-3918
Eccentric Pin
5315014843918 014843918 4319780 95148
A headed, cylindrically-shaped metal item having a shank and/or shoulder offset from the geometric center of the head. If shouldered, a portion of the shank and/or shoulder may be concentric with the head. View more Eccentric Pin
January 2023
3
Marketplace 5315-01-484-3918
Request a Quotation from participating marketplace vendors
Related Documents 5315-01-484-3918 5+ Documents (More...)
(Identification) 1/3 NSN 5315-01-484-3918 (Identification) 2/3 NSN 5315-01-484-3918 (Identification
5315-01-484-3918 5+ Documents ( More... ) https//www.nsnlookup.com /fsg-53/fsc-5315/us 5315-01-484-3918
Eccentric Pin 5315014843918 014843918,4319780 $1 a day Upgrade your Account Upgrade 5315-01-484
-3918Eccentric Pin5315014843918 014843918 4319780 95148 95148 176-7201Power Transformer5950121767201
-3 600-95148-3 A deformable material which prevents the passage of matter through the joint formed when
Eccentric Pin 5315014843918 014843918,4319780 7201 Part NumberManufacturerStatus5800876-95148 https
-1 600-95148-1 A deformable material which prevents the passage of matter through the joint formed when
1 how to enable JavaScript in your web browser . 5330- 21-899-5504Gasket5330218995504 218995504600-95148
95148 176-7201Power Transformer5950121767201 1217672015800876-95148 Electromagnetic Relay 5945144248070144248070
Assembly4140993346123 9933461239514895148 176-7201Power Transformer5950121767201 121767201 5800876-95148
Restrictions 5315-01-484-3918
5315-01-484-3918 is a Eccentric Pin that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. The DCMO has forced the Demilization requirements for this item as the ICP has not collaborated. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 5315-01-484-3918
- Federal Bureau of Investigation (FDD5)
- Effective Date:
- 1 Apr 2001
Approved Sources 5315-01-484-3918
- Part Number
- Manufacturer
- Status
- 4319780
- Manufacturer
- 77445 - Rtx Corporation (Active)
- Primary Buy
- Primary Buy
- 95148
- 56878 - Sps Technologies, Llc (Active)
- Secondary Buy
- Secondary Buy
Datasheet 5315-01-484-3918
- Characteristic
- Specifications
- FIIG
- Specifications
- A212A0
- End Item Identification [AGAV]
- F119
- Center To Center Distance Between Holes [ABRF]
- 0.750 Inches Nominal
- First Step Length [ABPS]
- 0.267 Inches Minimum And 0.271 Inches Maximum
- Hardness Rating [CQFM]
- 36.0 Rockwell C Nominal Overall

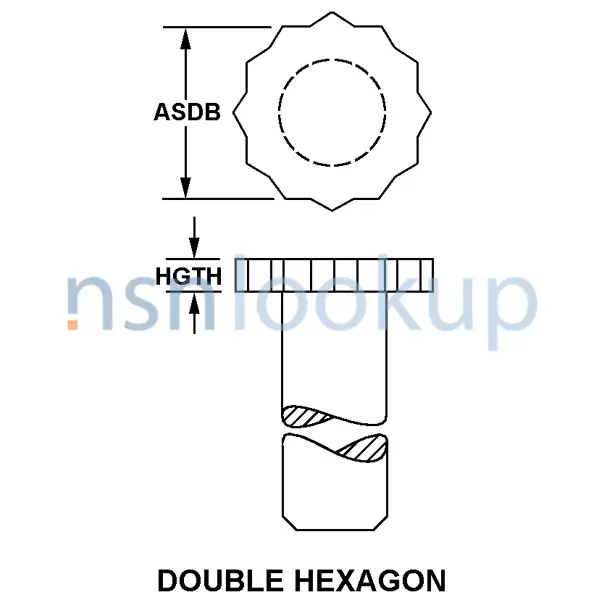

- Head Style [AASK]
- Double Hexagon
- Hole Arrangement Style [ABRB]
- Both End Drilled
- Material [MATT]
- Nickel Alloy 718 Ring
- Material [MATT]
- Nickel Alloy 718 Collar
- Second Step Diameter [ABPT]
- 0.558 Inches Nominal
- Overall Length [ABHP]
- 2.278 Inches Minimum And 2.318 Inches Maximum
- Special Features [FEAT]
- Threads Shoulder .5625-18Unjf-3A;Retainer, Shaft End; Chamfer 25 To 35 Degree Shaft End After Retainer; Pin Matl As7466 Nickel Alloy; Torque Plate To Pin 400 In-Lb Min Use Turbo Oil Lubricant Mil-L-7808;Shaft & Shoulder 32 Microinch Finish
- Style Designator [STYL]
- Eccentric
Management Data 5315-01-484-3918
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Jan 2019
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
Similar Supply Items to 5315-01-484-3918
Freight Information 5315-01-484-3918
5315-01-484-3918 has freight characteristics.. 5315-01-484-3918 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
