5315-01-425-0686
Headed Grooved Pin
5315014250686 014250686 803-5959220 PC 803-5959220 PIECE 40
A cylindrically-shaped headed item, having circular or longitudinal groove(s). View more Headed Grooved Pin
November 2023
2
Marketplace 5315-01-425-0686
Request a Quotation from participating marketplace vendors
Related Documents 5315-01-425-0686 5+ Documents (More...)
(Identification) 1/3 NSN 5315-01-425-0686 (Identification) 2/3 NSN 5315-01-425-0686 (Identification
BUY NE FedMall Updated Every Day 5315-01-425-0686 RQST NE Updated Every Day 5315-01-425-0686 RQST
Details... 5959220 BOLT,FLUID PASSAGE 3 EA NS Request Quotation Subscribe to View Vendor Details... 803-5959220 PC
www.nsnlookup.com /fsg-47/fsc-4730/us 4730-01-429-1311 Fluid Passage Bolt 4730014291311014291311 803-5959220 PC
) https//www.nsnlookup.com /fsg-53/fsc-5330/us 5330-01-435-5348 Gasket 5330014355348014355348 803-5959220 PC
Every Day 5330-01-435-5348 RQST NE Restrictions https//www.nsnlookup.com /fsg-53/fsc-5315/us 5315-01-425-0686
... 803-5959220 PIECE 32 COLLAR 3 EA NS Request https//www.nsnlookup.com /fsg-53/fsc-5315/us 5315-01-425-0686
Headed Grooved Pin 5315014250686 014250686 $1 a day Upgrade your Account Upgrade 5315-01-425-0686Headed
... 803-5959220 PIECE 32 COLLAR 3 EA NS Request https//www.nsnlookup.com /fsg-53/fsc-5315/us 5315-01-425-0686
Headed Grooved Pin 5315014250686 014250686 $1 a day Upgrade your Account Upgrade 5315-01-425-0686Headed
Restrictions 5315-01-425-0686
5315-01-425-0686 is a Headed Grooved Pin that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 5315-01-425-0686
- US Navy (N9BZ)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- GTHD
Approved Sources 5315-01-425-0686
- Part Number
- Manufacturer
- Status
- 803-5959220 PIECE 40
- Manufacturer
- 53711 - Naval Sea Systems Command (Active)
- Primary Buy
- Primary Buy
- 803-5959220 PC
- 53711 - Naval Sea Systems Command (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5315-01-425-0686
- Characteristic
- Specifications
- FIIG
- Specifications
- A212A0
- Bottom Countersink Diameter [AASM]
- 0.3437 Inches Nominal
- Diameter [ABMZ]
- 0.871 Inches Minimum And 0.872 Inches Maximum
- First End Style [AAGZ]
- Square
- Grip Length [ANEE]
- 3.6875 Inches Nominal

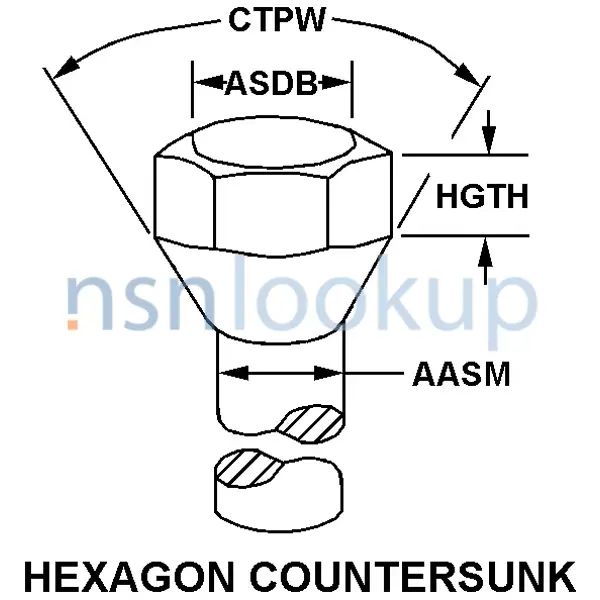

- Head Style [AASK]
- Hexagon Countersunk
- Height [HGTH]
- 0.5625 Inches Nominal
- Material Document And Classification [MDCL]
- Qq-S-764 Cond A Cd Fed Spec Single Material Response Overall
- Material [MATT]
- Steel Comp 303 Overall
- Second Undercut Diameter [ABPF]
- 0.6250 Inches Nominal
- Second Undercut Radius [ABPG]
- 0.9375 Inches Nominal
- Special Features [FEAT]
- Head Drilled 1/8 Dia 2 3/4 Deep: Drill 11/32 Dia 1/2 Deep, Tap 1/8-27 Dryseal Npsi 5/16 Deep
- Undercut Diameter [ABPA]
- 0.875 Inches Nominal
- Undercut Radius [ABPE]
- 0.3125 Inches Nominal
- Under Head Length [ABPB]
- 5.125 Inches Nominal
- Width Across Flats [ASDB]
- 1.3125 Inches Nominal
- Style Designator [STYL]
- Groove
- Surface Finish [CSYM]
- 125.0 Microinches Overall
Weapon Systems (WSDC) 5315-01-425-0686
DLA Procurement Analysis 5315-01-425-0686
- Last Stock Position:
- 4 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5315-01-425-0686
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 5315-01-425-0686
Freight Information 5315-01-425-0686
5315-01-425-0686 has freight characteristics managed by the Southwestern Power Administration.It has a National Motor Freight Classification (NMFC) of 105840. A Sub NMFC of X. It has a NMFC Description of NAILS/SPIKES I/S NOI PLAIN ETC. 5315-01-425-0686 is rated as class 50 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 54430 which rates the freight between FCL and LCL. 5315-01-425-0686 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 575 for ocean manifesting and military sealift. 5315-01-425-0686 is not classified as a special type of cargo when transported by water. 5315-01-425-0686 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5315-01-425-0686
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- --
- --
- Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Contracting Technical Data File (CTDF) 5315-01-425-0686 February 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- J
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
