5315-01-374-4738
Headed Shoulder Pin
5315013744738 013744738 2457W063
A cylindrically-shaped headed item, having a solid shank in steps of two or more different diameters under and in addition to the head. Excludes PIN, ECCENTRIC. View more Headed Shoulder Pin
May 2023
3
Marketplace 5315-01-374-4738
Request a Quotation from participating marketplace vendors
Related Documents 5315-01-374-4738 1+ Documents (More...)
BUY NE FedMall Updated Every Day 5315-01-374-4738 RQST NE Updated Every Day 5315-01-374-4738 RQST
Updated Every Day 5315-01-374-4738 RQST NE Related Documents 5315-01-374-4738 1+ Documents ( More...
Restrictions 5315-01-374-4738
5315-01-374-4738 is a Headed Shoulder Pin that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 5315-01-374-4738
- US Air Force (FXGI)
- Effective Date:
- 1 Aug 2005
- Former MOE Rule:
- FXKZ
Approved Sources 5315-01-374-4738
- Part Number
- Manufacturer
- Status
- 2457W063
- Manufacturer
- 9N752 - Garrett Corp Airsupply Co Div (Active)
- Primary Buy
- Primary Buy
- 2457W063
- U1605 - Honeywell Aerospace Yeovil (Active)
- Secondary Buy
- Secondary Buy
Datasheet 5315-01-374-4738
- Characteristic
- Specifications
- FIIG
- Specifications
- A212A0
- First End Style [AAGZ]
- Square
- First Step Length [ABPS]
- 1.415 Inches Nominal
- First Step Diameter [ABPR]
- 0.2494 Inches Minimum And 0.2498 Inches Maximum
- Head Style [AASK]

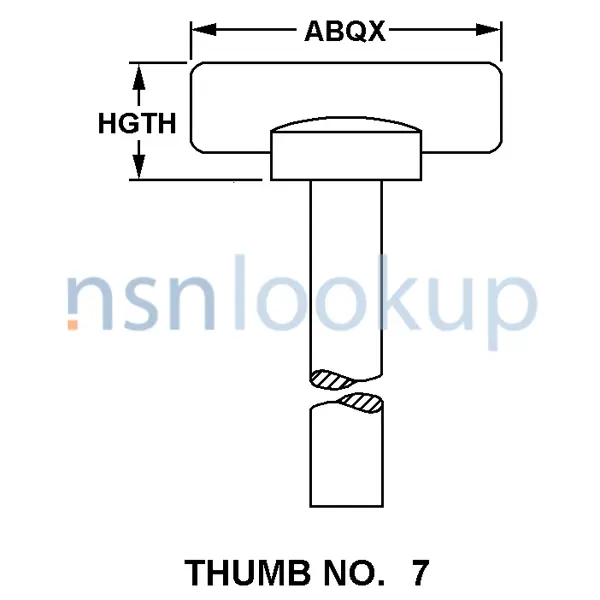

- Thumb No. 7
- Head Width [ABQX]
- 0.500 Inches Nominal
- Height [HGTH]
- 0.160 Inches Minimum And 0.165 Inches Maximum
- Material [MATT]
- Steel Comp 630 Overall
- Material Document And Classification [MDCL]
- Ams 5643 Assn Std Single Material Response Overall
- Second Step Length [ABPU]
- 0.620 Inches Nominal
- Special Features [FEAT]
- 1St Step Is Flat On Two Sides Opposite Each Other 0.605 Long X 0.103/0.105 Wide. Secound Step Is Flat On One Side Entire Length X Unknown Width,Opposite Flats On First Step. Oxygen Component The Part Must Be Clean And Free From Oil And Grease. Bag And Tag Per Mil-Std-130. Protect From Damage At All Times. Package Indivdually To Mil-Std-794 Level C. Cushion Within Non Crushable Container.
- Under Head Length [ABPB]
- 2.035 Inches Nominal
- Style Designator [STYL]
- Shoulder
- Surface Treatment Document And Classification [STDC]
- Qq-P-35 B Fed Spec Single Treatment Response Overall
- Surface Treatment [SFTT]
- Passivate Overall
DLA Procurement Analysis 5315-01-374-4738
Management Data 5315-01-374-4738
Similar Supply Items to 5315-01-374-4738
Freight Information 5315-01-374-4738
5315-01-374-4738 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 095190. A Sub NMFC of Z. It has a NMFC Description of HARDWARE, NOI. 5315-01-374-4738 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49790 which rates the freight between FCL and LCL. 5315-01-374-4738 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 5315-01-374-4738 is not classified as a special type of cargo when transported by water. 5315-01-374-4738 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
