5315-01-296-8814

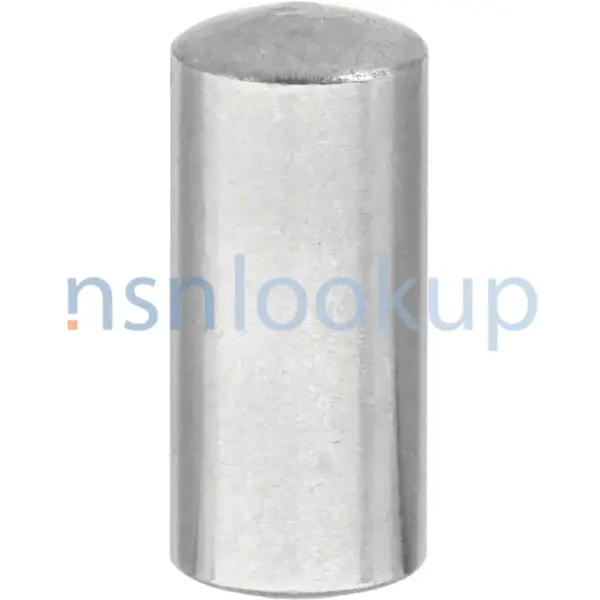

Headless Straight Pin
5315012968814 012968814 7416591
A headless, generally cylindrically-shaped item having a straight, smooth, solid body, with or without a drilled hole(s). It has an outside diameter equal to or less than its length. Its length must not exceed twelve inches (304 MM); for items whose length exceeds twelve inches (304 MM); see ROD,STRAIGHT,HEADLESS. It is used for aligning or transfer of torque and/or thrust, by fitting into corresponding holes of another item. See also PIN,STRAIGHT,THREADED. View more Headless Straight Pin
Managed by United States
NSN Created on 24 Mar 1989
Data Last Changed
June 2025
June 2025
NATO Update Count
10
10
NATO Data Quality
Marketplace 5315-01-296-8814
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 5315-01-296-8814 5+ Documents (More...)
Photo 1/3 NSN 5315-01-296-8814 (Identification) 2/3 NSN 5315-01-296-8814 (Identification) 3/3 -
EA NS Request Quotation 7416591 PIN 170 EA NS Request Quotation Updated Every Day 5315-01-296-8814 RQST
NE Updated Every Day 5315-01-296-8814 RQST Updated Every Day 5315-01-296-8814 RQST NE Related Documents
EA NS Request Quotation 7416591 PIN 170 EA NS Request Quotation Updated Every Day 5315-01-296-8814 RQST
NE Updated Every Day 5315-01-296-8814 RQST Updated Every Day 5315-01-296-8814 RQST NE Related Documents
/de 1560-12-029-1459 Headless Straight Pin 1560120291459 120291459 139-8832 5315-00-597-4217 5315-01-296-8814
/us 5315-01-554-2599 Headless Straight Pin 5315015542599 015542599 139-8832 5315-00-597-4217 5315-01-296-8814
801-8764 5315-01-568-2278 5315-00-276-4818 5315-12-187-7030 5315-12-139-8832 5315-00-597-4217 5315-01-296-8814
/us 5315-01-554-2599 Headless Straight Pin 5315015542599 015542599 139-8832 5315-00-597-4217 5315-01-296-8814
801-8764 5315-01-568-2278 5315-00-276-4818 5315-12-187-7030 5315-12-139-8832 5315-00-597-4217 5315-01-296-8814
/fsg-53/fsc-5315/de 5315-12-372-0550 Headless Straight Pin 5315123720550 123720550 597-4217 5315-01-296-8814
/fsg-53/fsc-5315/us 5315-01-561-3359 Headless Straight Pin 5315015613359 015613359 597-4217 5315-01-296-8814
029-1459 5315-01-568-2278 5315-00-276-4818 5315-12-187-7030 5315-12-139-8832 5315-00-597-4217 5315-01-296-8814
/fsg-53/fsc-5315/us 5315-01-561-3359 Headless Straight Pin 5315015613359 015613359 597-4217 5315-01-296-8814
029-1459 5315-01-568-2278 5315-00-276-4818 5315-12-187-7030 5315-12-139-8832 5315-00-597-4217 5315-01-296-8814
/us 5315-01-564-1115 Headless Straight Pin 5315015641115 015641115 187-7030 5315-12-139-8832 5315-01-296-8814
0550 Headless Straight Pin 5315123720550 123720550 187-7030 5315-12-139-8832 5315-00-597-4217 5315-01-296-8814
3359 Headless Straight Pin 5315015613359 015613359 176-1111 5315-22-119-0918 5315-00-597-4217 5315-01-296-8814
0550 Headless Straight Pin 5315123720550 123720550 187-7030 5315-12-139-8832 5315-00-597-4217 5315-01-296-8814
3359 Headless Straight Pin 5315015613359 015613359 176-1111 5315-22-119-0918 5315-00-597-4217 5315-01-296-8814
568-2278 5315-00-276-4818 5315-12-187-7030 5315-12-139-8832 5315-00-010-3709 5315-00-597-4217 5315-01-296-8814
Restrictions 5315-01-296-8814
5315-01-296-8814 is a Headless Straight Pin that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5315-01-296-8814
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5315-01-296-8814
- US Army (A919)
- Effective Date:
- 1 Aug 2005
- Former MOE Rule:
- A187
- Supplementary Receivers:
- AZ
- US Marine Corps (MC47)
- Effective Date:
- 1 Aug 2005
- Former MOE Rule:
- MC10
- Brazil (YA01)
- Effective Date:
- 1 Mar 2001
- Spain (YB01)
- Effective Date:
- 1 May 2007
- Morocco (YP01)
- Effective Date:
- 1 Dec 2011
Approved Sources 5315-01-296-8814
- Part Number
- Manufacturer
- Status
- 7416591
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
- 5315012968814
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
Datasheet 5315-01-296-8814
- Characteristic
- Specifications
- FIIG
- Specifications
- A212A0
- Features Provided [CBBL]
- Casehardened
- First End Corner Radius [ALWR]
- 0.080 Inches Nominal
- First End Style [AAGZ]
- Radius
- Material [MATT]
- Steel Comp 1008 Overall Or Steel Comp 1010 Overall Or Steel Comp 1015 Overall Or Steel Comp 1016 Overall Or Steel Comp 1018 Overall Or Steel Comp 1020 Overall Or Steel Comp 1022 Overall Or Steel Comp 1025 Overall Or Steel Comp 1030 Overall Or Steel Comp 1035 Overall Or Steel Comp 1040 Overall Or Steel Comp 1045 Overall Or Steel Comp 1050 Overall Or Steel Comp 1095 Overall Or Steel Comp 1213 Overall Or Steel Comp 1117 Overall Or Steel Comp 1118 Overall Or Steel Comp 1137 Overall Or Steel Comp 1141 Overall Or Steel Comp 1151 Overall Or Steel Comp 12L14 Overall Or Steel Comp 1144 Overall Or Steel Comp 1211 Overall Or Steel Comp 1212 Overall Or Steel Comp 1213 Overall Or Steel Comp 1215 Overall Or Steel Comp 1335H Overall Or Steel Comp 1340H Overall Or Steel Comp 1345H Overall Or Steel Comp 4042H Overall Or Steel Comp 4047H Overall Or Steel Comp 4130H Overall Or Steel Comp 4135H Overall Or Steel Comp 4137H Overall Or Steel Comp 4140H Overall Or Steel Comp 4145H Overall Or Steel Comp 4147H Overall Or Steel Comp 9310H Overall Or Steel Comp 4320H Overall Or Steel Comp 4340H Overall Or Steel Comp 4620H Overall Or Steel Comp 4820H Overall Or Steel Comp 51B60h Overall Or Steel Comp 5120H Overall Or Steel Comp 5130H Overall Or Steel Comp 5132H Overall Or Steel Comp 5135H Overall Or Steel Comp 5140H Overall Or Steel Comp 5145H Overall Or Steel Comp 5147H Overall Or Steel Comp 6118H Overall Or Steel Comp 6150H Overall Or Steel Comp 8617H Overall Or Steel Comp 8620H Overall Or Steel Comp 8622H Overall Or Steel Comp 8630H Overall Or Steel Comp 8640H Overall Or Steel Comp 8642H Overall Or Steel Comp 8645H Overall Or Steel Comp 8650H Overall Or Steel Comp 8655H Overall Or Steel Comp 8720H Overall Or Steel Comp 8740H Overall
- Pin Overall Diameter [ACHU]
- 0.3751 Inches Minimum And 0.3753 Inches Maximum
- Pin Overall Length [ACHT]
- 0.615 Inches Minimum And 0.630 Inches Maximum
- Second End Relationship With First End [CQBB]
- Not Identical
- Second End Style [AAHP]
- Square
Weapon Systems (WSDC) 5315-01-296-8814
DLA Procurement Analysis 5315-01-296-8814
- Last Stock Position:
- 72 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5315-01-296-8814
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
- Physical Category:
- 1
- Bin
Similar Supply Items to 5315-01-296-8814
Freight Information 5315-01-296-8814
5315-01-296-8814 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 095190. A Sub NMFC of J. It has a NMFC Description of HARDWARE, NOI SUB 9. 5315-01-296-8814 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49790 which rates the freight between FCL and LCL. 5315-01-296-8814 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5315-01-296-8814 is not classified as a special type of cargo when transported by water. 5315-01-296-8814 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
