5315-01-295-4291

Knurled Straight Pin

5315012954291 012954291 906F275-12

A headless, cylindrically-shaped, straight, solid item with or without a drilled hole(s). It has a straight or diamond knurl. Its length must not exceed 12 inches (304 MM). It is used for aligning or transfer of torque and/or thrust, by fitting into corresponding holes of another item. View more Knurled Straight Pin

Managed by United States

NSN Created on 5 Mar 1989

Data Last Changed
May 2023

NATO Update Count
3

NATO Data Quality

AAGZ Style 1 for 5315-01-295-4291 1/3 — NSN 5315-01-295-4291 (Identification) 1/3

ABRB Style 1 for 5315-01-295-4291 3/3 — NSN 5315-01-295-4291 (Identification) 3/3

STYL Style R266 for 5315-01-295-4291 4/3 — NSN 5315-01-295-4291 (Identification) 4/3

Marketplace 5315-01-295-4291

Need Help?
Request a Quotation from participating marketplace vendors

Updated Every Day

5315-01-295-4291 RQST NE

Restrictions 5315-01-295-4291

5315-01-295-4291 is a Knurled Straight Pin that has critical features such as tolerance, fit restrictions or application. Nuclear hardness properties have not been determined. This item is a US Munitions List or Commerce Control List Item where the Item Manager, Equipment Specialist or Product Specialist must provide special demilitarization instructions. This item is not suspected to be hazardous. This item does not contain a precious metal.

Import and Export 5315-01-295-4291

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 5315-01-295-4291

US Navy (N1HE)
Effective Date:: 1 Apr 1991
Supplementary Receivers:: GG; AMC 5 AMSC H IMC P IMCACTY HX

Approved Sources 5315-01-295-4291

Part Number
Manufacturer
Status
906F275-12: 94259 - Fluor Marine Propulsion, Llc (Active); Incomplete Reference; RNCC 3 RNVC 1 DAC C

Datasheet 5315-01-295-4291

Characteristic
Specifications
FIIG: A212A0
Distance From Centerline Of Hole To End Of Pin [ABRE]: 0.500 Inches Nominal
Criticality Code Justification [CRTL]: Zzzy
Diameter [ABMZ]: 0.750 Inches Nominal
First End Style [AAGZ]: Chamfered
First End Taper Length [AMCS]: 0.250 Inches Nominal
First Hole Diameter [ABRC]: 0.380 Inches Nominal
Hole Arrangement Style [ABRB]: One End Drilled
Material [MATT]: Steel Corrosion Resisting Overall
Knurl Length [BFMT]: 1.000 Inches Nominal
Knurl Outside Diameter [AQZS]: 1.500 Inches Nominal
Reference Number Differentiating Characteristics [ZZZY]: Material Will Be In Accordance With Ships Parts Control Center Activity Hx Quality Control,Manufacturing And Testing Specifications
Second End Relationship With First End [CQBB]: Not Identical
Second End Style [AAHP]: Chamfered
Second End Taper Length [AMFM]: 0.120 Inches Nominal
Overall Length [ABHP]: 9.000 Inches Nominal

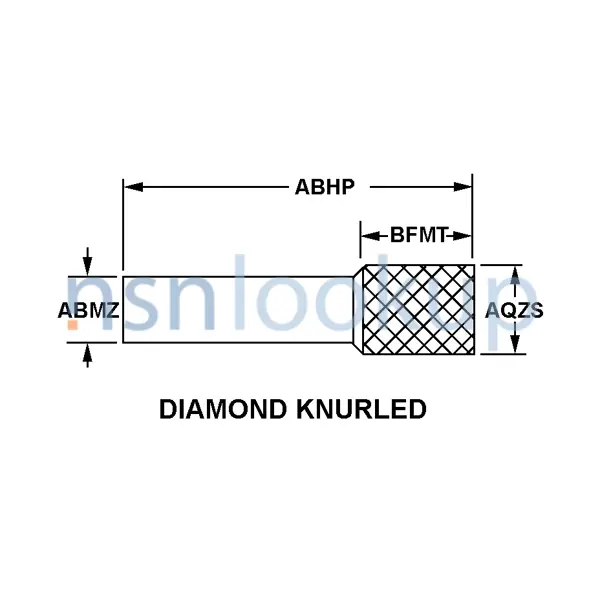

Style Designator [STYL]: Diamond Knurled
