5315-01-280-7052
Headed Shoulder Pin
5315012807052 012807052 S4127 PART 109 S4127 PART 63
A cylindrically-shaped headed item, having a solid shank in steps of two or more different diameters under and in addition to the head. Excludes PIN, ECCENTRIC. View more Headed Shoulder Pin
November 2023
2
Marketplace 5315-01-280-7052
Request a Quotation from participating marketplace vendors
Related Documents 5315-01-280-7052 1+ Documents (More...)
(Identification) 1/4 NSN 5315-01-280-7052 (Identification) 2/4 NSN 5315-01-280-7052 (Identification
BUY NE FedMall Updated Every Day 5315-01-280-7052 RQST NE Updated Every Day 5315-01-280-7052 RQST
Restrictions 5315-01-280-7052
5315-01-280-7052 is a Headed Shoulder Pin that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 5315-01-280-7052
- US Navy (N9BZ)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- GTHD
Approved Sources 5315-01-280-7052
- Part Number
- Manufacturer
- Status
- S4127 PART 109
- Manufacturer
- 52406 - Ruggles-Klingemann Mfg Co (Active)
- Primary Buy
- Primary Buy
- S4127 PART 63
- 52406 - Ruggles-Klingemann Mfg Co (Active)
- Secondary Buy
- Secondary Buy
Datasheet 5315-01-280-7052
- Characteristic
- Specifications
- FIIG
- Specifications
- A212A0
- Distance From Centerline Of Hole To End Of Pin [ABRE]
- 0.188 Inches Nominal
- First End Style [AAGZ]
- Slotted
- First End Slot Depth [AMDW]
- 0.562 Inches Nominal
- First End Slot Width [AKTM]
- 0.125 Inches Minimum And 0.130 Inches Maximum
- First Hole Diameter [ABRC]
- 0.125 Inches Nominal
- First Step Diameter [ABPR]
- 0.625 Inches Nominal
- First Step Length [ABPS]
- 0.500 Inches Nominal
- Head Style [AASK]
- Knurled No. 1
- Height [HGTH]
- 0.312 Inches Nominal

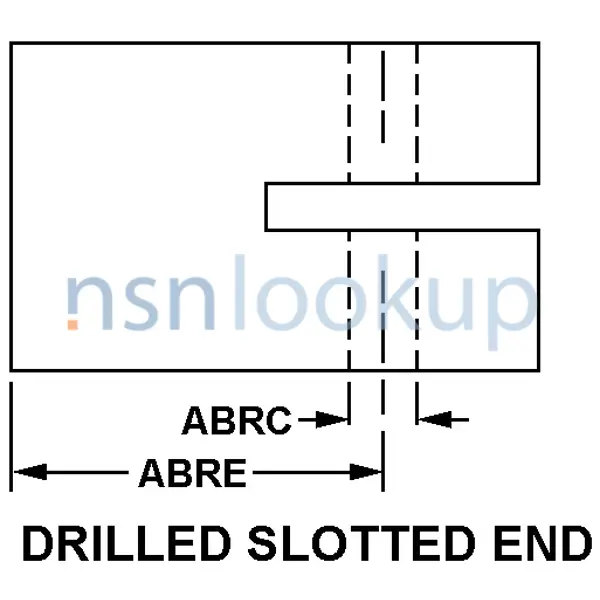

- Hole Arrangement Style [ABRB]
- Drilled Slotted End
- Material [MATT]
- Steel Corrosion Resisting Overall
- Pin Head Diameter [CRRG]
- 0.875 Inches Nominal
- Second Step Length [ABPU]
- 1.437 Inches Nominal
- Second Step Diameter [ABPT]
- 0.308 Inches Minimum And 0.310 Inches Maximum
- Special Features [FEAT]
- Head Threaded 0.138-32 Unc-2B 0.375 In. Deep
- Under Head Length [ABPB]
- 1.813 Inches Nominal
- Style Designator [STYL]
- Shoulder
Weapon Systems (WSDC) 5315-01-280-7052
DLA Procurement Analysis 5315-01-280-7052
- Last Stock Position:
- 1 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5315-01-280-7052
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 5315-01-280-7052
Freight Information 5315-01-280-7052
5315-01-280-7052 has freight characteristics managed by the Southwestern Power Administration.It has a National Motor Freight Classification (NMFC) of 095190. A Sub NMFC of J. It has a NMFC Description of HARDWARE, NOI SUB 9. 5315-01-280-7052 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49790 which rates the freight between FCL and LCL. 5315-01-280-7052 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5315-01-280-7052 is not classified as a special type of cargo when transported by water. 5315-01-280-7052 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5315-01-280-7052
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- --
- --
- Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
