5315-01-208-5490
Machine Key
5315012085490 012085490 1079215-1
A metallic item, usually square or rectangular in cross section, usually longer in relation to its width and thickness, with or without a head, usually designed to fit into the pre-cut slots of two adjacent cylindrically shaped members, to prevent relative rotational movement between the two. It may have mounting holes or slots. View more Machine Key
November 2023
7
Marketplace 5315-01-208-5490
Request a Quotation from participating marketplace vendors
Related Documents 5315-01-208-5490 1+ Documents (More...)
RQST NE Updated Every Day 5315-01-208-5490 RQST Updated Every Day 5315-01-208-5490 RQST NE Related Documents
5315-01-208-5490 1+ Documents ( More... ) https//www.nsnlookup.com /fsg-53/fsc-5315/us 5315-01-208-5490
Restrictions 5315-01-208-5490
5315-01-208-5490 is a Machine Key that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 5315-01-208-5490
- US Navy (N9BZ)
- Effective Date:
- 1 Aug 2005
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- HD
- Poland (WP01)
- Effective Date:
- 1 Jul 2004
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Dec 2005
Approved Sources 5315-01-208-5490
- Part Number
- Manufacturer
- Status
- 1079215-1
- Manufacturer
- 49956 - Raytheon Company (Active)
- Primary Buy
- Primary Buy
- 1079215-1
- 3B150 - Raytheon Company (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5315-01-208-5490
- Characteristic
- Specifications
- FIIG
- Specifications
- A212A0

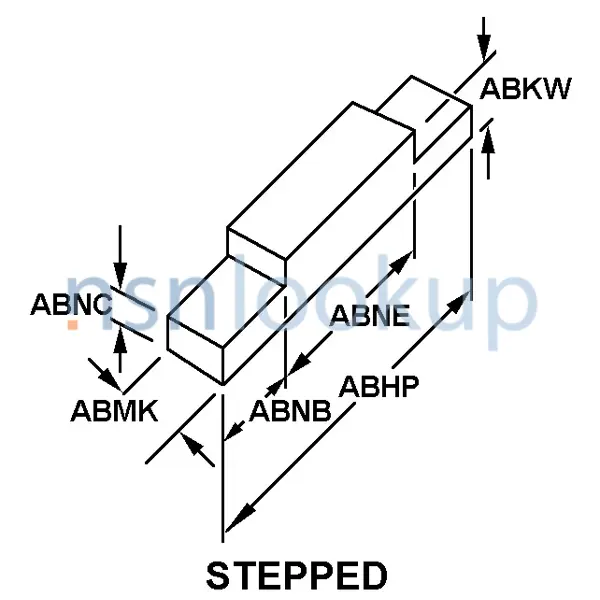

- First Flat Length [ABNB]
- 0.093 Inches Nominal
- Flat Height [ABNC]
- 0.140 Inches Nominal
- Material Document And Classification [MDCL]
- Mil-S-5059 Mil Spec All Material Responses Overall
- Material [MATT]
- Steel Comp 301 Or Steel Comp 302 Or Steel Comp 304 Or Steel Comp 316 Overall
- Second Flat Length [ABNE]
- 0.407 Inches Nominal
- Overall Height [ABKW]
- 0.312 Inches Nominal
- Overall Length [ABHP]
- 1.875 Inches Nominal
- Overall Width [ABMK]
- 0.187 Inches Nominal
- Starting Edge Shape [CSPJ]
- Straight
- Style Designator [STYL]
- Stepped
Weapon Systems (WSDC) 5315-01-208-5490
DLA Procurement Analysis 5315-01-208-5490
Management Data 5315-01-208-5490
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5315-01-208-5490
Freight Information 5315-01-208-5490
5315-01-208-5490 has freight characteristics managed by the Southwestern Power Administration.It has a National Motor Freight Classification (NMFC) of 105840. A Sub NMFC of X. It has a NMFC Description of NAILS/SPIKES I/S NOI PLAIN ETC. 5315-01-208-5490 is rated as class 50 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 54430 which rates the freight between FCL and LCL. 5315-01-208-5490 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 575 for ocean manifesting and military sealift. 5315-01-208-5490 is not classified as a special type of cargo when transported by water. 5315-01-208-5490 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5315-01-208-5490
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- --
- --
- Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Contracting Technical Data File (CTDF) 5315-01-208-5490 February 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- K
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
