5315-01-183-0767
Eccentric Pin
5315011830767 011830767 11571309
A headed, cylindrically-shaped metal item having a shank and/or shoulder offset from the geometric center of the head. If shouldered, a portion of the shank and/or shoulder may be concentric with the head. View more Eccentric Pin
May 2023
3
Marketplace 5315-01-183-0767
Request a Quotation from participating marketplace vendors
Related Documents 5315-01-183-0767 1+ Documents (More...)
BUY NE FedMall Updated Every Day 5315-01-183-0767 RQST NE Updated Every Day 5315-01-183-0767 RQST
Updated Every Day 5315-01-183-0767 RQST NE Related Documents 5315-01-183-0767 1+ Documents ( More...
Restrictions 5315-01-183-0767
5315-01-183-0767 is a Eccentric Pin that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 5315-01-183-0767
- US Army (A919)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- A187
- Supplementary Receivers:
- BD
Approved Sources 5315-01-183-0767
- Part Number
- Manufacturer
- Status
- 11571309
- Manufacturer
- 18876 - Us Army Aviation And Missile Command (Active)
- Primary Buy
- Primary Buy
- 11571309
- 05716 - Raytheon Company (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
Datasheet 5315-01-183-0767
- Characteristic
- Specifications
- FIIG
- Specifications
- A212A0
- Material [MATT]
- Steel Comp 303S Overall
- Material Document And Classification [MDCL]
- Astm-A-582,Class 303S Cond A Assn Std Single Material Response Overall
- Surface Treatment [SFTT]
- Passivate Overall
- Surface Treatment Document And Classification [STDC]
- Qq-P-35,Ty 4 Fed Spec Single Treatment Response Overall
- Style Designator [STYL]
- Eccentric
- Overall Length [ABHP]
- 0.340 Inches Nominal
- Offset Distance Between Geometric Center Of Head And Centerline Of Shank/Shoulder [ABNW]
- 0.074 Inches Nominal
- First Step Diameter [ABPR]
- 0.098 Inches Nominal
- First Step Length [ABPS]
- 0.120 Inches Nominal
- Second Step Diameter [ABPT]
- 0.074 Inches Nominal
- Second Step Length [ABPU]
- 0.220 Inches Nominal
- Head Style [AASK]
- Knurled No. 5
- Pin Head Diameter [CRRG]
- 0.098 Inches Nominal
- Height [HGTH]
- 0.120 Inches Nominal
- Internal Drive Style [ABQZ]

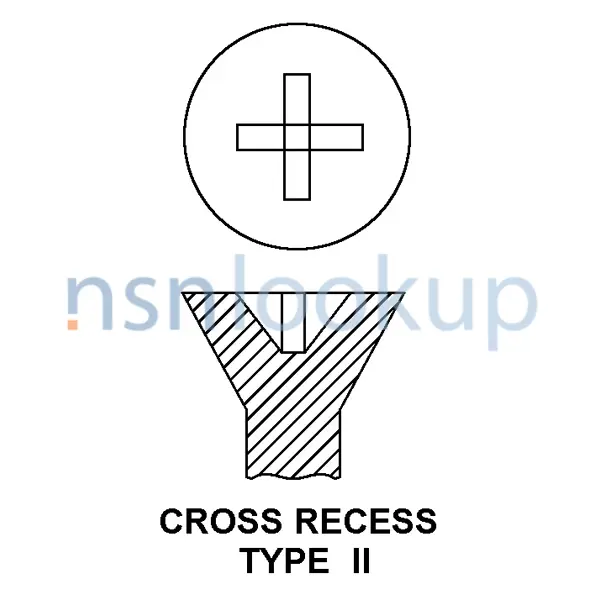

- Cross Recess Type Ii
- Numeric Designation Of Step Eccentric To Head [ACHW]
- 1
DLA Procurement Analysis 5315-01-183-0767
Management Data 5315-01-183-0767
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
NATO Stock Numbers Related to 5315-01-183-0767
Freight Information 5315-01-183-0767
5315-01-183-0767 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 095190. A Sub NMFC of J. It has a NMFC Description of HARDWARE, NOI SUB 9. 5315-01-183-0767 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. 5315-01-183-0767 is rated as class 70 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 49790 which rates the freight between FCL and LCL. 5315-01-183-0767 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5315-01-183-0767 is not classified as a special type of cargo when transported by water. 5315-01-183-0767 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
