5315-01-150-1273
Threaded Tapered Pin
5315011501273 011501273 4674772 ITEM 22 87623-0902 ITEM 22 518-4674772 ITEM 22
A cone-shaped headless item, having a threaded portion at either end. It is used for aligning, fastening, and the like by fitting into a corresponding taper reamed hole. View more Threaded Tapered Pin
November 2023
5
Marketplace 5315-01-150-1273
Request a Quotation from participating marketplace vendors
Related Documents 5315-01-150-1273 5+ Documents (More...)
(Identification) 1/3 NSN 5315-01-150-1273 (Identification) 2/3 NSN 5315-01-150-1273 (Identification
BUY NE FedMall Updated Every Day 5315-01-150-1273 RQST NE Updated Every Day 5315-01-150-1273 RQST
Threaded Tapered Pin 5315011501273 011501273 your Account Upgrade 5315-01-150-1273Threaded Tapered
Pin5315011501273 011501273 4674772 ITEM 22 87623-0902 ITEM 22 518-4674772 ITEM 22 A cone-shaped headless
4674772 ITEM 22 87623-0902 ITEM https//www.nsnlookup.com /fsg-53/fsc-5315/us 5315-01-150-1273 Threaded
Tapered Pin 5315011501273 011501273 your Account Upgrade 5315-01-150-1273Threaded Tapered Pin5315011501273
Threaded Tapered Pin 5315011501273 011501273 your Account Upgrade 5315-01-150-1273Threaded Tapered
Pin5315011501273 011501273 4674772 ITEM 22 87623-0902 ITEM 22 518-4674772 ITEM 22 A cone-shaped headless
4674772 ITEM 22 87623-0902 ITEM 22 518-4674772 https//www.nsnlookup.com /fsg-20/fsc-2010/us 2010-01-
United States NSN Created on 20 Oct 1982 Data 5315-01-150-1273Threaded Tapered Pin5315011501273 011501273
Restrictions 5315-01-150-1273
5315-01-150-1273 is a Threaded Tapered Pin that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 5315-01-150-1273
- US Navy (N9BZ)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- GTJBHD
Approved Sources 5315-01-150-1273
- Part Number
- Manufacturer
- Status
- 4674772 ITEM 22
- Manufacturer
- 80064 - Naval Ship Systems Command (Active)
- Primary Buy
- Primary Buy
- 87623-0902 ITEM 22
- 96169 - Electric Boat Corporation (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 518-4674772 ITEM 22
- 80064 - Naval Ship Systems Command (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5315-01-150-1273
- Characteristic
- Specifications
- FIIG
- Specifications
- A212A0
- Material [MATT]
- Nickel Alloy R-405 Overall
- Material Document And Classification [MDCL]
- Qq-N-281 Class B Fed Spec Single Material Response Overall
- Style Designator [STYL]
- Threaded At Small End
- Taper Length [ABND]
- 1.660 Inches Nominal
- Taper Major Diameter [ABQB]
- 0.409 Inches Nominal
- Grip Length [ANEE]
- 1.570 Inches Nominal
- First End Style [AAGZ]
- Chamfered
- First End Taper Length [AMCS]
- 0.040 Inches Nominal
- First End Taper Angle [CRMG]
- 45.0 Degrees Nominal
- Second End Relationship With First End [CQBB]
- Not Identical

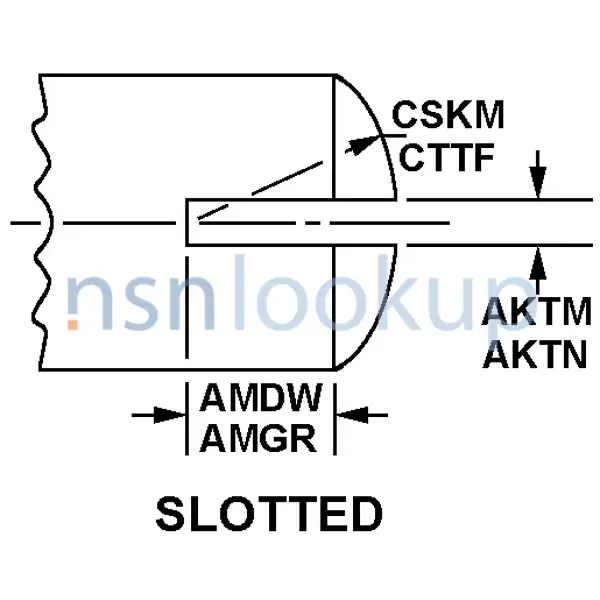

- Second End Style [AAHP]
- Slotted
- Second End Slot Depth [AMGR]
- 0.090 Inches Nominal
- Second End Slot Width [AKTN]
- 0.090 Inches Nominal
- First End Location [CRDY]
- Threaded End
- Thread Series Designator [THSD]
- Unc
- Nominal Thread Size [CQJX]
- 0.250 Inches
- Thread Class [AAJD]
- 2A
- Thread Direction [AAJF]
- Right-Hand
- Thread Length [AASA]
- 0.440 Inches Nominal
Weapon Systems (WSDC) 5315-01-150-1273
DLA Procurement Analysis 5315-01-150-1273
- Last Stock Position:
- 1 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5315-01-150-1273
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 5315-01-150-1273
Freight Information 5315-01-150-1273
5315-01-150-1273 has freight characteristics managed by the Southwestern Power Administration.It has a National Motor Freight Classification (NMFC) of 139780. A Sub NMFC of X. It has a NMFC Description of NICKEL ARTICLES NOI. 5315-01-150-1273 is rated as class 125 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 70190 which rates the freight between FCL and LCL. 5315-01-150-1273 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5315-01-150-1273 is not classified as a special type of cargo when transported by water. 5315-01-150-1273 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5315-01-150-1273
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- See Method of Preservation
- --
