5315-01-059-2697
Headless Shoulder Pin
5315010592697 010592697 GP3001 7642757P7 7642757P0007
A cylindrically-shaped headless item, having a shank at one or both ends. It is used for aligning, fastening, or transfer of torque and/or thrust by fitting into corresponding holes of another item. It may be threaded on one end. View more Headless Shoulder Pin
May 2023
9
Marketplace 5315-01-059-2697
Request a Quotation from participating marketplace vendors
Related Documents 5315-01-059-2697 3+ Documents (More...)
RQST NE Updated Every Day 5315-01-059-2697 RQST Updated Every Day 5315-01-059-2697 RQST NE Related
Documents 5315-01-059-2697 3+ Documents ( More... ) https//www.nsnlookup.com /fsg-53/fsc-5315/us 5315
(Active) Primary Buy RNCC 3 RNVC 2 DAC 3 GP3001 5XHD4 - Woodman Labs, Inc. https//www.nsnlookup.com
https//www.nsnlookup.com /fsg-53/fsc-5315/us 5315-01-059-2697 Headless Shoulder Pin 5315010592697 010592697
a day Upgrade your Account Upgrade 7025-01-619-2216Display Unit7025016192216 016192216 ALCDB-001 GP3001
Headless Shoulder Pin 5315010592697 010592697 $1 a day Upgrade your Account Upgrade 5315-01-059
Restrictions 5315-01-059-2697
5315-01-059-2697 is a Headless Shoulder Pin that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
End Users 5315-01-059-2697
- US Navy (N9BZ)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- KE
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- France (ZF01)
- Effective Date:
- 1 Apr 2000
Approved Sources 5315-01-059-2697
- Part Number
- Manufacturer
- Status
- GP3001
- Manufacturer
- 97913 - Ieh Corporation (Active)
- Primary Buy
- Primary Buy
- 7642757P7
- 99971 - Lockheed Martin Corp Naval (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 7642757P0007
- 99971 - Lockheed Martin Corp Naval (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5315-01-059-2697
- Characteristic
- Specifications
- FIIG
- Specifications
- A212A0
- Material [MATT]
- Steel Comp 302 Overall Or Steel Comp 303 Overall Or Steel Comp 303Se Overall Or Steel Comp 304 Overall Or Steel Comp 304L Overall
- Nominal Thread Size [CQJX]
- 0.086 Inches

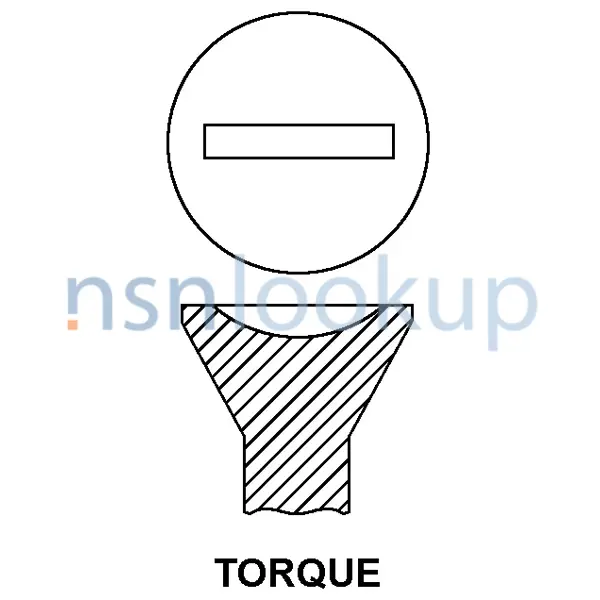

- Internal Drive Style [ABQZ]
- Torque
- Shank Diameter [AAZE]
- 0.078 Inches Minimum And 0.081 Inches Maximum
- Shank Length [AATR]
- 0.360 Inches Nominal
- Shoulder Diameter [AAVH]
- 0.122 Inches Minimum And 0.125 Inches Maximum
- Overall Length [ABHP]
- 0.641 Inches Nominal
- Undercut Diameter [ABPA]
- 0.066 Inches Nominal
- Undercut Width [ABPC]
- 0.030 Inches Nominal
- Surface Treatment Document And Classification [STDC]
- Mil-F-14072,E300 Mil Spec Single Treatment Response Overall
- Surface Treatment [SFTT]
- Passivate Overall
- Thread Class [AAJD]
- 2A
- Thread Direction [AAJF]
- Right-Hand
- Thread Series Designator [THSD]
- Unc
Weapon Systems (WSDC) 5315-01-059-2697
DLA Procurement Analysis 5315-01-059-2697
Management Data 5315-01-059-2697
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 5315-01-059-2697
Freight Information 5315-01-059-2697
5315-01-059-2697 has freight characteristics managed by the Southwestern Power Administration.It has a National Motor Freight Classification (NMFC) of 095190. A Sub NMFC of J. It has a NMFC Description of HARDWARE, NOI SUB 9. 5315-01-059-2697 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49790 which rates the freight between FCL and LCL. 5315-01-059-2697 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5315-01-059-2697 is not classified as a special type of cargo when transported by water. 5315-01-059-2697 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5315-01-059-2697
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- --
- --
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
- No Requirement
Contracting Technical Data File (CTDF) 5315-01-059-2697 February 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
