5315-01-039-6773
Machine Key
5315010396773 010396773 12008603
A metallic item, usually square or rectangular in cross section, usually longer in relation to its width and thickness, with or without a head, usually designed to fit into the pre-cut slots of two adjacent cylindrically shaped members, to prevent relative rotational movement between the two. It may have mounting holes or slots. View more Machine Key
November 2023
5
Marketplace 5315-01-039-6773
Request a Quotation from participating marketplace vendors
Related Documents 5315-01-039-6773 1+ Documents (More...)
Updated Every Day 5315-01-039-6773 RQST NE Related Documents 5315-01-039-6773 1+ Documents ( More...
) https//www.nsnlookup.com /fsg-53/fsc-5315/us 5315-01-039-6773 Machine Key 5315010396773 010396773,12008603
Restrictions 5315-01-039-6773
5315-01-039-6773 is a Machine Key that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 5315-01-039-6773
- US Army (A919)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- A187
- Supplementary Receivers:
- BF
- US Marine Corps (MC47)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- MC10
- US Navy (N9BZ)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GG
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5315-01-039-6773
- Part Number
- Manufacturer
- Status
- 12008603
- Manufacturer
- 19204 - Army, United States Department Of (Active)
- Primary Buy
- Primary Buy
Datasheet 5315-01-039-6773

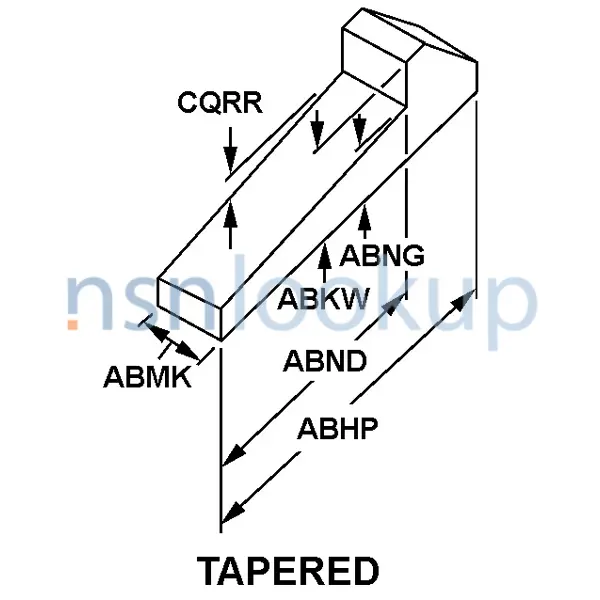

- Characteristic
- Specifications
- FIIG
- Specifications
- A212A0
- Hardness Rating [CQFM]
- 35.0 Rockwell C Minimum Overall And 40.0 Rockwell C Maximum Overall
- Material [MATT]
- Steel Overall
- Key Chamfer Angle [CSXB]
- 45.0 Degrees Nominal
- Key Chamfer Length [ACJF]
- 0.120 Inches Nominal
- Overall Height [ABKW]
- 4.470 Inches Minimum And 4.530 Inches Maximum
- Overall Length [ABHP]
- 8.220 Inches Minimum And 8.280 Inches Maximum
- Overall Width [ABMK]
- 1.660 Inches Minimum And 1.720 Inches Maximum
- Starting Edge Shape [CSPJ]
- Chamfered
- Style Designator [STYL]
- Tapered
- Surface Treatment [SFTT]
- Phosphate Overall
- Taper Length [ABND]
- 6.970 Inches Minimum And 7.030 Inches Maximum
- Taper [CQRR]
- 2.197 Per Foot In Inches
- Taper Height [ABNG]
- 2.197 Inches Nominal
Weapon Systems (WSDC) 5315-01-039-6773
DLA Procurement Analysis 5315-01-039-6773
- Last Stock Position:
- 12 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5315-01-039-6773
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Material Identification:
- K
- Reserved
- Operational Test:
- No Special Procedures
Similar Supply Items to 5315-01-039-6773
Freight Information 5315-01-039-6773
5315-01-039-6773 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 095190. A Sub NMFC of J. It has a NMFC Description of HARDWARE, NOI SUB 9. 5315-01-039-6773 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. 5315-01-039-6773 is rated as class 70 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 49790 which rates the freight between FCL and LCL. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5315-01-039-6773 is not classified as a special type of cargo when transported by water. 5315-01-039-6773 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
