5315-01-032-6624
Machine Key
5315010326624 010326624 10911939
A metallic item, usually square or rectangular in cross section, usually longer in relation to its width and thickness, with or without a head, usually designed to fit into the pre-cut slots of two adjacent cylindrically shaped members, to prevent relative rotational movement between the two. It may have mounting holes or slots. View more Machine Key
November 2023
13
Marketplace 5315-01-032-6624
Request a Quotation from participating marketplace vendors
Related Documents 5315-01-032-6624 1+ Documents (More...)
United States (US) 4. 5315-01-032-6624 Marketplace Restrictions Approved Sources Datasheet Management
KEY,MACHINE 3 EA NS Request Quotation Updated Every Day 5315-01-032-6624 RQST NE Updated Every Day 5315
Restrictions 5315-01-032-6624
5315-01-032-6624 is a Machine Key that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 5315-01-032-6624
- US Army (A919)
- Effective Date:
- 1 Jun 2005
- Supplementary Receivers:
- AZBF
- US Marine Corps (MC47)
- Effective Date:
- 1 Jun 2005
- US Navy (N9BZ)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GG
- Austria (WB)
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Brazil (YA)
- Brazil (YA01)
- Effective Date:
- 1 Dec 2001
- Spain (YB)
- Spain (YB01)
- Effective Date:
- 1 Mar 1999
- Singapore (YJ)
- Canada (ZC)
- Canada (ZC01)
- Effective Date:
- 1 Jun 1996
- Republic of Korea (ZH)
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1998
- Turkey (ZW)
- Turkey (ZW01)
- Effective Date:
- 1 Oct 2009
- United States of America (ZZ)
Approved Sources 5315-01-032-6624
- Part Number
- Manufacturer
- Status
- 10911939
- Manufacturer
- 19200 - Combat Capabilities Development (Active)
- Primary Buy
- Primary Buy
- 10911939
- 19207 - U S Army Tank Automotive Command (Active)
- Canceled/Obsolete
- Canceled/Obsolete

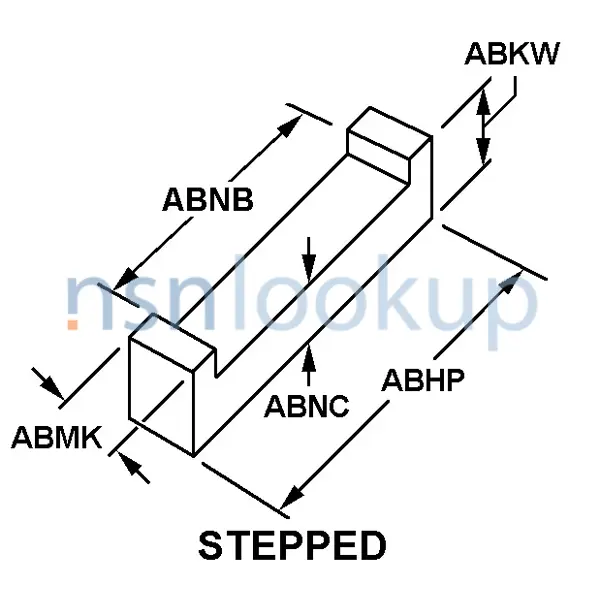

Datasheet 5315-01-032-6624
- Characteristic
- Specifications
- FIIG
- Specifications
- A212A0
- First Flat Length [ABNB]
- 0.056 Inches Minimum And 0.061 Inches Maximum
- Flat Height [ABNC]
- 0.033 Inches Minimum And 0.035 Inches Maximum
- Hardness Rating [CQFM]
- 40.0 Rockwell C Minimum Overall And 50.0 Rockwell C Maximum Overall
- Material [MATT]
- Steel Comp 8630 Overall And Steel Comp 8640 Overall And Steel Comp 4130 Overall And Steel Comp 4140 Overall
- Overall Height [ABKW]
- 0.099 Inches Minimum And 0.100 Inches Maximum
- Overall Length [ABHP]
- 0.812 Inches Nominal
- Overall Width [ABMK]
- 0.045 Inches Minimum And 0.050 Inches Maximum
- Starting Edge Shape [CSPJ]
- Straight
- Style Designator [STYL]
- Stepped
- Surface Treatment [SFTT]
- Cadmium Overall
Weapon Systems (WSDC) 5315-01-032-6624
DLA Procurement Analysis 5315-01-032-6624
- Last Stock Position:
- 345 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5315-01-032-6624
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
- Physical Category:
- 1
- Bin
Similar Supply Items to 5315-01-032-6624
Freight Information 5315-01-032-6624
5315-01-032-6624 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 095190. A Sub NMFC of J. It has a NMFC Description of HARDWARE, NOI SUB 9. 5315-01-032-6624 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. 5315-01-032-6624 is rated as class 70 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 49790 which rates the freight between FCL and LCL. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5315-01-032-6624 is not classified as a special type of cargo when transported by water. 5315-01-032-6624 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 5315-01-032-6624 February 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
