5315-00-875-6318
Machine Key
5315008756318 008756318 10068118
A metallic item, usually square or rectangular in cross section, usually longer in relation to its width and thickness, with or without a head, usually designed to fit into the pre-cut slots of two adjacent cylindrically shaped members, to prevent relative rotational movement between the two. It may have mounting holes or slots. View more Machine Key
November 2023
26
Marketplace 5315-00-875-6318
Request a Quotation from participating marketplace vendors
Related Documents 5315-00-875-6318 1+ Documents (More...)
United States (US) 4. 5315-00-875-6318 Marketplace Restrictions Approved Sources Datasheet Management
EA NS Request Quotation Updated Every Day 5315-00-875-6318 RQST NE Updated Every Day 5315-00-875-6318
Restrictions 5315-00-875-6318
5315-00-875-6318 is a Machine Key that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
End Users 5315-00-875-6318
- US Army (A919)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- A187
- Supplementary Receivers:
- BD
- US Marine Corps (MC47)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- MC10
- Spain (YB01)
- Effective Date:
- 1 Aug 1995
- Israel (YD01)
- Effective Date:
- 1 Aug 2016
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- France (ZF01)
- Effective Date:
- 1 May 2015
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Denmark (ZS01)
- Effective Date:
- 1 Jun 2001
- Greece (ZU01)
- Effective Date:
- 1 Aug 1995
Approved Sources 5315-00-875-6318
- Part Number
- Manufacturer
- Status
- 10068118
- Manufacturer
- 18876 - Us Army Aviation And Missile Command (Active)
- Primary Buy
- Primary Buy

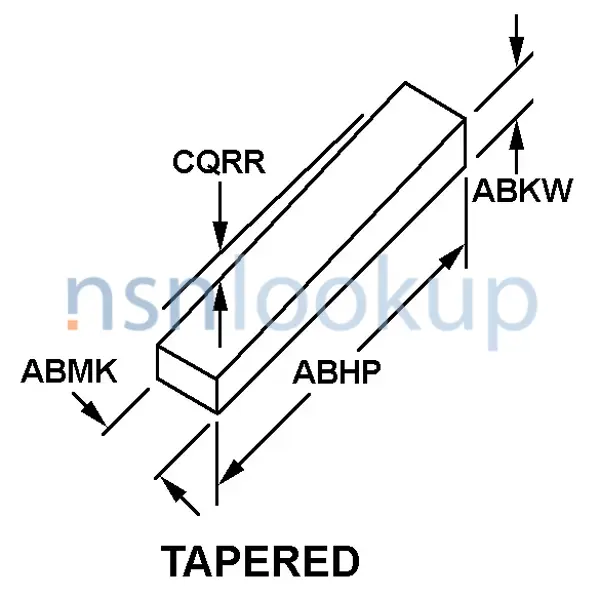

Datasheet 5315-00-875-6318
- Characteristic
- Specifications
- FIIG
- Specifications
- A212A0
- Material Document And Classification [MDCL]
- Mil-S-6758 Mil Spec Single Material Response Overall
- Material [MATT]
- Steel Comp 4130 Overall
- Overall Height [ABKW]
- 0.372 Inches Minimum And 0.374 Inches Maximum
- Overall Length [ABHP]
- 0.922 Inches Minimum And 0.953 Inches Maximum
- Overall Width [ABMK]
- 0.223 Inches Minimum And 0.224 Inches Maximum
- Style Designator [STYL]
- Starting Edge Shape [CSPJ]
- Straight
- Surface Treatment Document And Classification [STDC]
- Qq-P-416,Ty2,Cl 2 Fed Spec Single Treatment Response Overall
- Surface Treatment [SFTT]
- Cadmium Overall
- Taper [CQRR]
- 0.048 Per Foot In Inches
DLA Procurement Analysis 5315-00-875-6318
- Last Stock Position:
- 68 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5315-00-875-6318
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
Similar Supply Items to 5315-00-875-6318
Freight Information 5315-00-875-6318
5315-00-875-6318 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 133300. A Sub NMFC of Z. It has a NMFC Description of MACHINERY/MACHINES NOI. 5315-00-875-6318 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 63220 which rates the freight between FCL and LCL. 5315-00-875-6318 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72E for ocean manifesting and military sealift. 5315-00-875-6318 is not classified as a special type of cargo when transported by water. 5315-00-875-6318 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5315-00-875-6318
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- --
- --
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
- No Requirement
Contracting Technical Data File (CTDF) 5315-00-875-6318 February 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
