5315-00-858-6642
Headed Straight Pin
5315008586642 008586642 SMB413506 806028
A headed, cylindrically-shaped item having a solid shank for fitting into corresponding holes, used for aligning or fastening. It may have welding projections. It also may contain holes drilled perpendicular to axial centerline. Excludes PIN, ECCENTRIC. View more Headed Straight Pin
Managed by United States
NSN Created on 1 Jan 1962
Data Last Changed
November 2023
November 2023
NATO Update Count
30
30
NATO Data Quality
Marketplace 5315-00-858-6642
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 5315-00-858-6642 5+ Documents (More...)
SMB413506 806028 A headed, cylindrically-shaped item having a solid shank for fitting into corresponding
(Identification) 1/2 NSN 5315-00-858-6642 (Identification) 2/2 - - 1.
United States (US) 4. 5315-00-858-6642 Marketplace Restrictions Approved Sources Datasheet Management
(Identification) 1/2 NSN 5315-00-858-6642 (Identification) 2/2 - - 1.
United States (US) 4. 5315-00-858-6642 Marketplace Restrictions Approved Sources Datasheet Management
your Account Upgrade 2990-01-471-0413Automotive Engine Temperature Switch2990014710413 014710413 806028
https//www.nsnlookup.com /fsg-29/fsc-2990/us 2990-01-471-0413 Automotive Engine Temperature Switch,806028
https//www.nsnlookup.com /fsg-53/fsc-5315/us 5315-00-858-6642 Headed Straight Pin 5315008586642 008586642
https//www.nsnlookup.com /fsg-29/fsc-2990/us 2990-01-471-0413 Automotive Engine Temperature Switch,806028
https//www.nsnlookup.com /fsg-53/fsc-5315/us 5315-00-858-6642 Headed Straight Pin 5315008586642 008586642
for $1 a day Upgrade your Account Upgrade 5962-01-090-4495Integrated Circuit5962010904495 010904495 806028
/www.nsnlookup.com /fsg-59/fsc-5962/us 5962-01-090-4495 Integrated Circuit 5962010904495010904495 806028
https//www.nsnlookup.com /fsg-29/fsc-2990/us 2990-01-471-0413 Automotive Engine Temperature Switch,806028
/www.nsnlookup.com /fsg-59/fsc-5962/us 5962-01-090-4495 Integrated Circuit 5962010904495010904495 806028
https//www.nsnlookup.com /fsg-29/fsc-2990/us 2990-01-471-0413 Automotive Engine Temperature Switch,806028
day Upgrade your Account Upgrade 7310-00-410-1034Probe Weld Assy7310004101034 004101034 896028-219 806028
-205 WELD ASSY 5 EA NS Request Quotation Subscribe to View Vendor Details... 806028-205 WELD ASSY,PROBE
WELD ASSY 5 EA NS Request Quotation Subscribe to View Vendor Details... 806028-205 WELD ASSY,PROBE https
-205 WELD ASSY 5 EA NS Request Quotation Subscribe to View Vendor Details... 806028-205 WELD ASSY,PROBE
WELD ASSY 5 EA NS Request Quotation Subscribe to View Vendor Details... 806028-205 WELD ASSY,PROBE https
Upgrade for $1 a day Upgrade your Account Upgrade 5340-01-357-3912Block Clamp5340013573912 013573912 806028
www.nsnlookup.com /fsg-53/fsc-5340/us 5340-01-357-3912 Block Clamp 5340013573912 013573912,806028-1 806028
14-243-1465 Socket Head Cap Screw 5305142431465,70806028 Temperature Switch2990014710413 014710413 806028
www.nsnlookup.com /fsg-53/fsc-5340/us 5340-01-357-3912 Block Clamp 5340013573912 013573912,806028-1 806028
14-243-1465 Socket Head Cap Screw 5305142431465,70806028 Temperature Switch2990014710413 014710413 806028
Restrictions 5315-00-858-6642
5315-00-858-6642 is a Headed Straight Pin that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5315-00-858-6642
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5315-00-858-6642
- US Army (A919)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- A187
- Supplementary Receivers:
- BDCL
- US Air Force (FXGI)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- FXKZ
- US Marine Corps (MC47)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- MC10
- US Navy (N9BZ)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- GTHD
- Poland (WP01)
- Effective Date:
- 1 Jun 2005
- Brazil (YA01)
- Effective Date:
- 1 Dec 2001
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Israel (YD01)
- Effective Date:
- 1 Aug 2016
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Morocco (YP01)
- Effective Date:
- 1 Nov 2008
- Thailand (YY01)
- Effective Date:
- 1 Feb 2015
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Aug 1995
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 5315-00-858-6642
- Part Number
- Manufacturer
- Status
- SMB413506
- Manufacturer
- 80063 - Us Army Communications & Electronics (Active)
- Primary Buy
- Primary Buy
- 806028
- 80045 - L3harris Cincinnati Electronics (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 5315008586642
- SCY13 - E.C.A Etablissement (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 5315008586642
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
Datasheet 5315-00-858-6642
- Characteristic
- Specifications
- FIIG
- Specifications
- A212A0
- Chamfer Length [AAZP]
- 0.016 Inches Minimum And 0.047 Inches Maximum
- Diameter [ABMZ]
- 0.123 Inches Minimum And 0.126 Inches Maximum

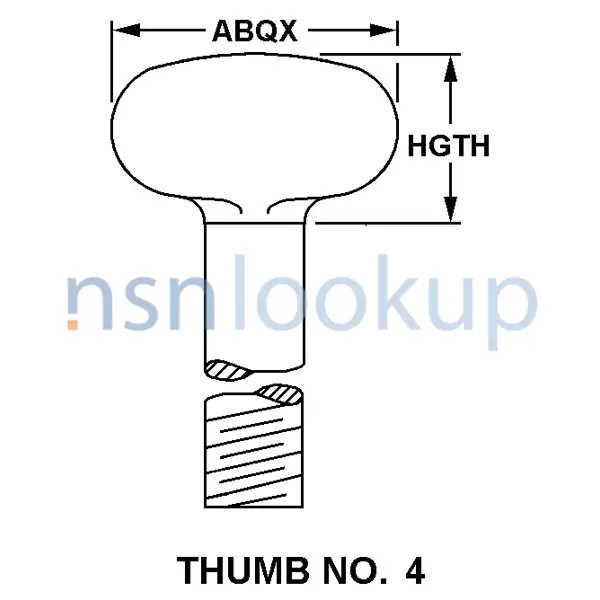

- Head Style [AASK]
