5315-00-726-9614
Headed Grooved Pin
5315007269614 007269614 AX35HR-120-012 AX35HR-120 AX35HR120
A cylindrically-shaped headed item, having circular or longitudinal groove(s). View more Headed Grooved Pin
November 2023
26
Marketplace 5315-00-726-9614
Request a Quotation from participating marketplace vendors
Related Documents 5315-00-726-9614 1+ Documents (More...)
(Identification) 1/3 NSN 5315-00-726-9614 (Identification) 2/3 NSN 5315-00-726-9614 (Identification
5315-00-726-9614 1+ Documents ( More... ) https//www.nsnlookup.com /fsg-53/fsc-5315/us 5315-00-726-9614
Restrictions 5315-00-726-9614
5315-00-726-9614 is a Headed Grooved Pin that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5315-00-726-9614
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5315-00-726-9614
- US Air Force (FXGI)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- FXKZ
- US Navy (N9BZ)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- GTJBHXHD
- Brazil (YA01)
- Effective Date:
- 1 Dec 2001
- Spain (YB01)
- Effective Date:
- 1 Jun 2003
- Israel (YD01)
- Effective Date:
- 1 Aug 2016
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Kuwait (YK01)
- Effective Date:
- 1 Feb 2015
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Feb 2008
- New Zealand (ZE01)
- Effective Date:
- 1 Sep 1994
- Portugal (ZP01)
- Effective Date:
- 1 Jan 1998
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Jan 1996
Approved Sources 5315-00-726-9614
- Part Number
- Manufacturer
- Status
- AX35HR120
- Manufacturer
- 10855 - Carrier Corp (Active)
- Primary Buy
- Primary Buy
- AX35HR-120-012
- D9182 - Zf Industrieantriebe Witten Gmbh (Active)
- Advisory Reference
- Advisory Reference
- AX35HR-120
- D9182 - Zf Industrieantriebe Witten Gmbh (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5315-00-726-9614
- Characteristic
- Specifications
- FIIG
- Specifications
- A212A0
- Diameter [ABMZ]
- 0.194 Inches Nominal
- First End Style [AAGZ]
- Square
- Hardness Rating [CQFM]
- 50.0 Rockwell C Minimum Overall And 55.0 Rockwell C Maximum Overall
- Head Style [AASK]
- Pan No. 2 (R1 Not Required In Item Description)
- Height [HGTH]
- 0.115 Inches Nominal
- Material [MATT]
- Steel Overall
- Pilot Diameter [AAVL]
- 0.187 Inches Nominal
- Pin Head Diameter [CRRG]
- 0.250 Inches Nominal
- Under Head Length [ABPB]
- 0.375 Inches Nominal

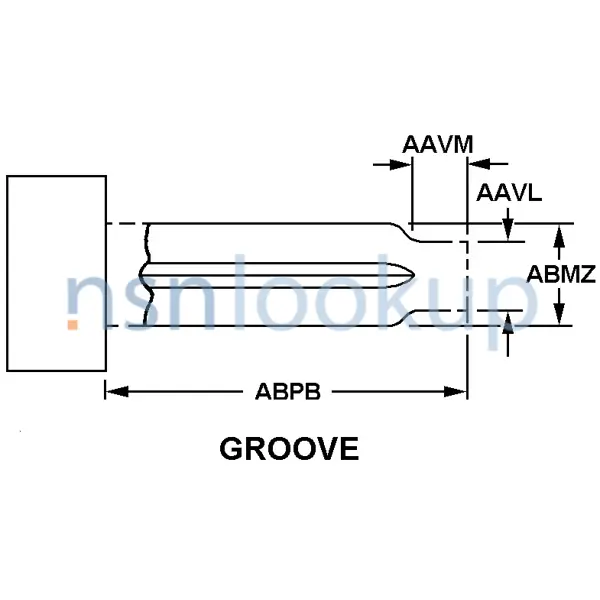

- Style Designator [STYL]
- Groove
