5315-00-427-0610
Headed Shoulder Pin
5315004270610 004270610 10275835
A cylindrically-shaped headed item, having a solid shank in steps of two or more different diameters under and in addition to the head. Excludes PIN, ECCENTRIC. View more Headed Shoulder Pin
May 2023
11
Marketplace 5315-00-427-0610
Request a Quotation from participating marketplace vendors
Related Documents 5315-00-427-0610 1+ Documents (More...)
(Identification) 1/3 NSN 5315-00-427-0610 (Identification) 2/3 NSN 5315-00-427-0610 (Identification
Day 5315-00-427-0610 RQST NE Updated Every Day 5315-00-427-0610 RQST Updated Every Day 5315-00-427-0610
Restrictions 5315-00-427-0610
5315-00-427-0610 is a Headed Shoulder Pin that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
End Users 5315-00-427-0610
- US Army (A919)
- Effective Date:
- 1 Aug 2005
- Former MOE Rule:
- A187
- Supplementary Receivers:
- BD
- US Navy (N9BZ)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GG
- Spain (YB01)
- Effective Date:
- 1 May 1997
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5315-00-427-0610
- Part Number
- Manufacturer
- Status
- 10275835
- Manufacturer
- 18876 - Us Army Aviation And Missile Command (Active)
- Primary Buy
- Primary Buy
- 10275835
- 21025 - General Tool Co (Obsolete)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
Datasheet 5315-00-427-0610
- Characteristic
- Specifications
- FIIG
- Specifications
- A212A0
- First End Style [AAGZ]
- Chamfered
- First End Taper Angle [CRMG]
- 45.0 Degrees Nominal
- First End Taper Length [AMCS]
- 0.020 Inches Minimum And 0.040 Inches Maximum
- First Step Diameter [ABPR]
- 0.365 Inches Minimum And 0.370 Inches Maximum

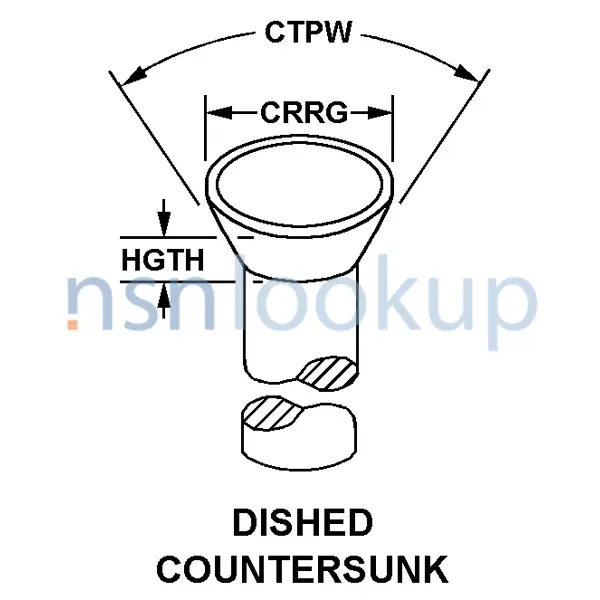

- Head Style [AASK]
- Dished Countersunk
- Height [HGTH]
- 0.060 Inches Nominal
- Material [MATT]
- Plastic Polyhexamethylene Adipamide Overall
- Material Document And Classification [MDCL]
- L-P-395 Ty2 Nylon 616 Fed Spec Single Material Response Overall
- Second Step Diameter [ABPT]
- 0.179 Inches Minimum And 0.184 Inches Maximum
- Second Step Length [ABPU]
- 0.815 Inches Minimum And 0.825 Inches Maximum
- Pin Head Diameter [CRRG]
- 0.750 Inches Nominal
- Style Designator [STYL]
- Shoulder
